ANH Stunt - AP Trimmed - First TK Build


Recommended Posts

TKs! I have a query about forearms. I have glued both forearms together with internal strips and am now preparing the cover strips. I've been over a few galleries here and would like opinions about trimming the elbow end of the cover strip. Here's what I intend to do (see image): angle the cover strip (blue) then trim the outside forearm to an angle (green). Thoughts?




Link to post
Share on other sites
  • Replies 232
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Hey folks, Just letting all and sundry know that I've had my forum handle changed from 'markgambino' (so formal!) to MightyAtom - a nickname from a long time ago in a galaxy far, far away.

I've been glueing snap plates to the chest plate and back plate over the last few days. I think they've turned out ok, but the test will come with fitting.

A recent Amazon purchase arrived today, so now I have something to read while I wait for the ABS paste to melt. Sent from my Imperial Communicator

Posted Images

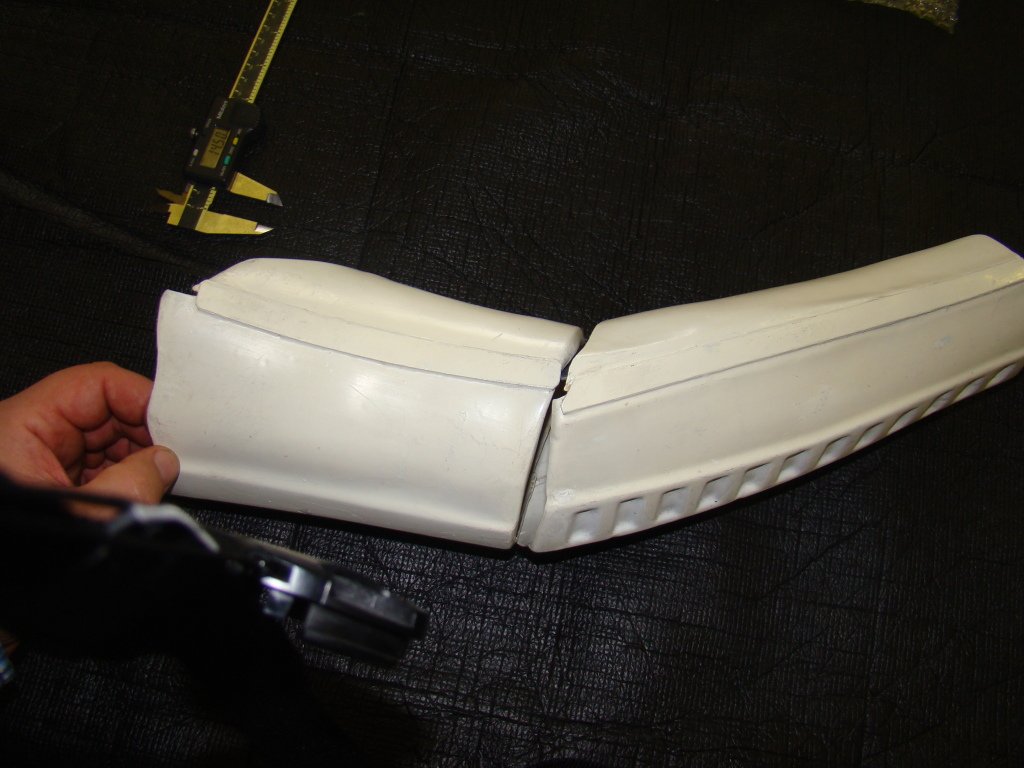

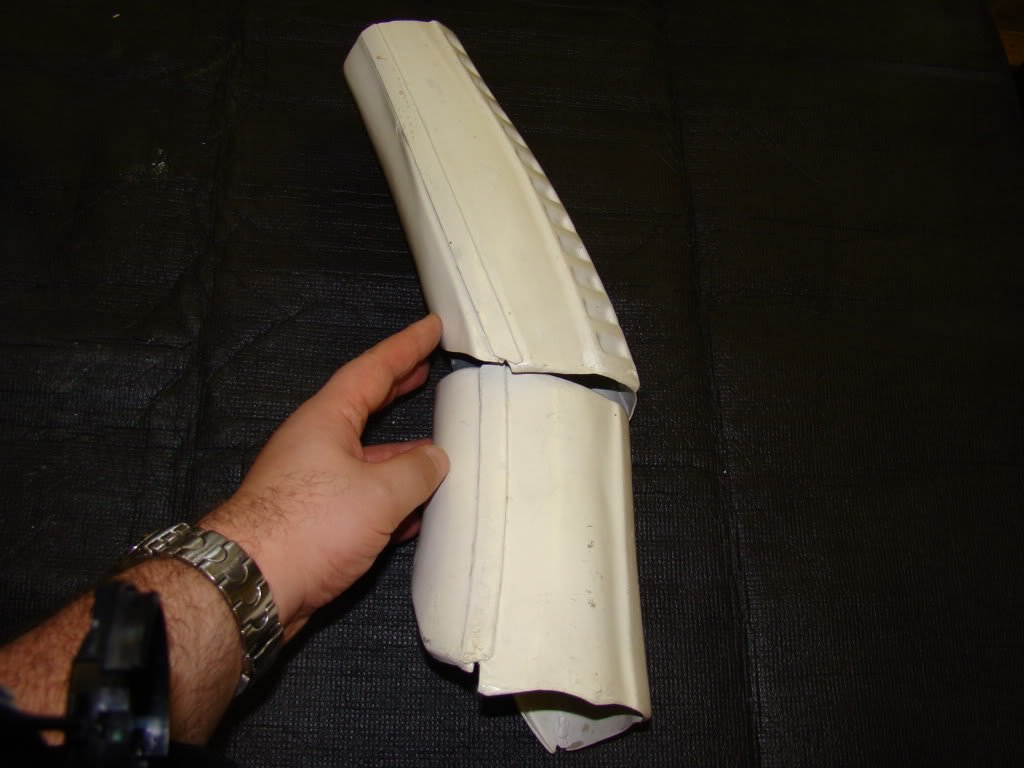

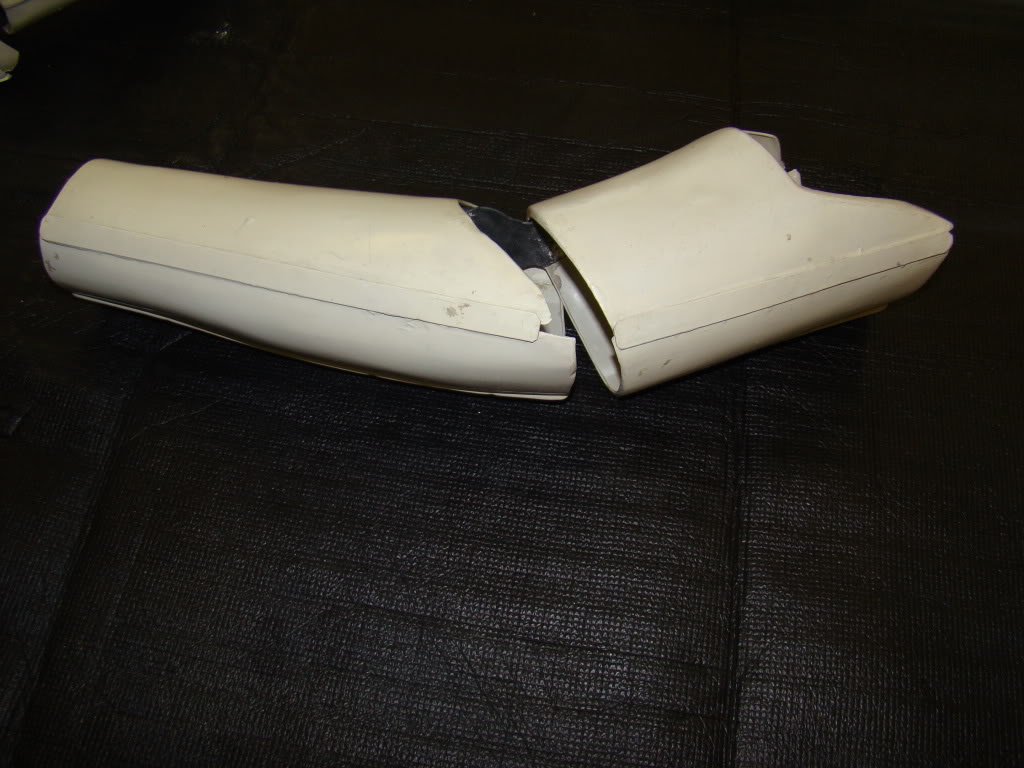

You can do as you have marked, or even angle up the cover strip to the corner or even leave them with the step, it's some pieces had the cover strip stopping below the step. Here's a few references gallery_12157_59_5448.thumb.jpg.00c9a172c088124575e008bbe4e64bf6.jpg



  • Like 2
Link to post
Share on other sites
You can do as you have marked, or even angle up the cover strip to the corner or even leave them with the step, it's some pieces had the cover strip stopping below the step. Here's a few references gallery_12157_59_5448.thumb.jpg.00c9a172c088124575e008bbe4e64bf6.jpg
Ah great, thanks. I've seen so many clean angle builds, but I'm aiming for a screen accurate look (like these shots) and wasn't sure if the corners would be uncomfortable.

Sent from my Imperial Communicator

  • Like 4
Link to post
Share on other sites

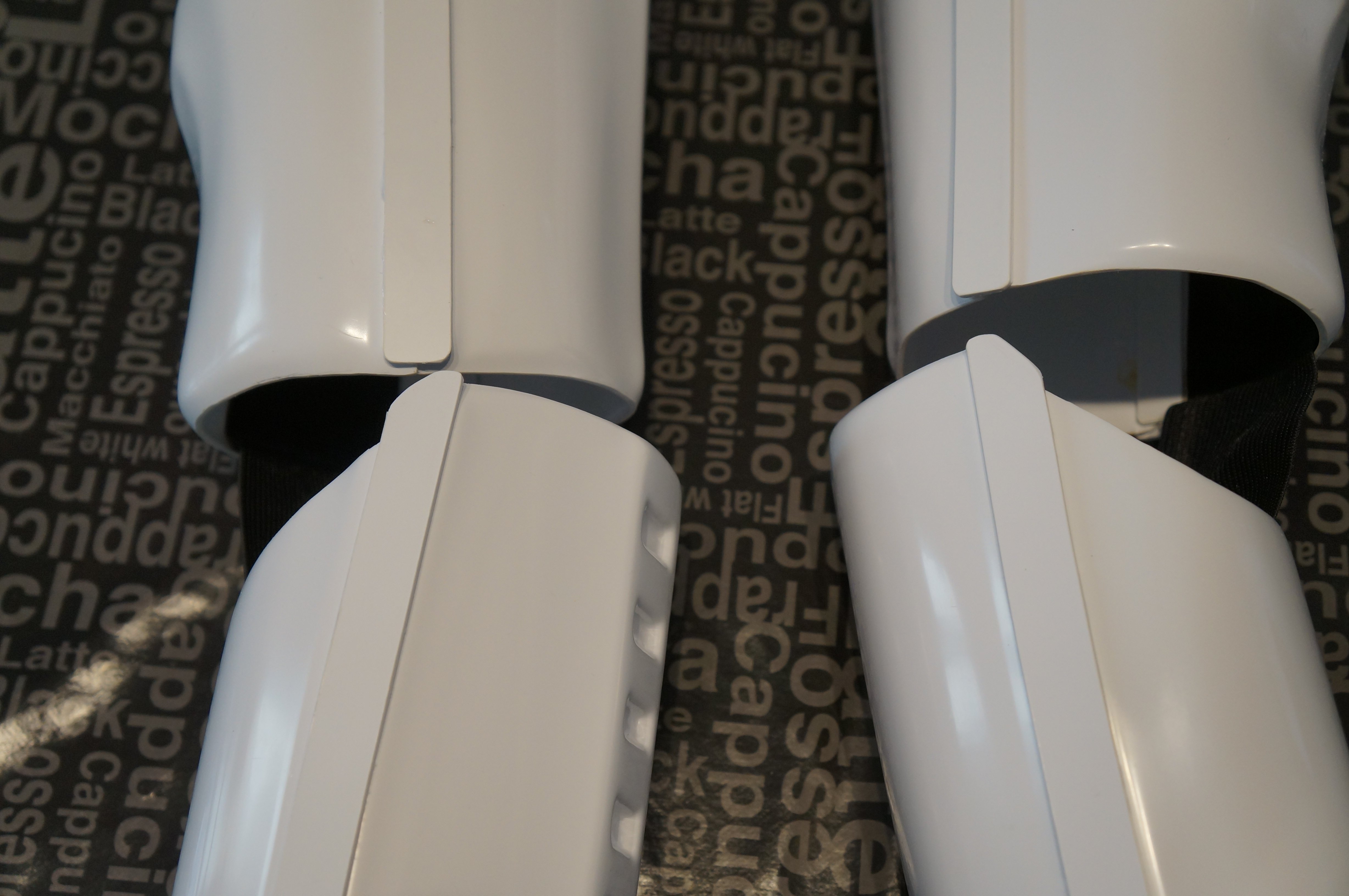

You can also cut the cover strip on an angle across the two halves for comfort so you have no exposed sharp points. that's how I built my AP kit.








  • Like 4
Link to post
Share on other sites
You can also cut the cover strip on an angle across the two halves for comfort so you have no exposed sharp points. that's how I built my AP kit.



imageproxy.php?img=&key=851e7fe7478f9e8cec4619b6928fffe4f94bb1f9f0d2c85fbcb8c9f747376ccf
Oh cool, I hadn't considered that. Thx!

Sent from my Imperial Communicator

Link to post
Share on other sites
11 hours ago, MaskedVengeance said:

Great progress thus far, Mark! I’ve thoroughly enjoyed lurking and following your build, and can relate to the cyclist leg-fitting challenges. Haha. My thigh pieces were a bit tight when I test fit them.

Thanks, this is great to hear. Surely the Death Star had Peloton classes!

Link to post
Share on other sites
I'm working on shoulder bells and biceps next. How does this placement look?

H3bPMtm.jpg&key=2bd7498f4d5c6150c60a2db6174656e483dbd3bc5d1098b5960f85e8defd25c9

Hi Mark,

Shoulder bell looks ace. Great fit.

The biceps: personally, I’d drop them down by at least one inch. At the moment, the bicep to forearm gap is pretty large, and, your forearm to the hand guard on the glove will be quite large too.

The below pictures are excellent for showing the bicep to forearm gap (at the elbow). :-)

fde3edb7390001f8dc6c030a6b7bdd7a.plist

431dcfc68e57c28337b17967a0bd3dbd.plist


Sent from my iPhone using Tapatalk
  • Like 1
Link to post
Share on other sites
4 hours ago, CableGuy said:


Hi Mark,

Shoulder bell looks ace. Great fit.

The biceps: personally, I’d drop them down by at least one inch. At the moment, the bicep to forearm gap is pretty large, and, your forearm to the hand guard on the glove will be quite large too.

The below pictures are excellent for showing the bicep to forearm gap (at the elbow). :-)

fde3edb7390001f8dc6c030a6b7bdd7a.plist

431dcfc68e57c28337b17967a0bd3dbd.plist


Sent from my iPhone using Tapatalk

Oh, yes, that gap is quite minimal. I'll put the elastics on the shoulder bells and do another fitting that should be more accurate. Thanks!

  • Like 1
Link to post
Share on other sites
4 hours ago, Shinyarmour1 said:

The gap between biceps and forearms should be roughly 5-7mm, but everyone height is different.  That's just what I have read I hope it helps.

Great, thank you. I'll do a fit shortly with bells and gloves to see how it looks.

Link to post
Share on other sites
The gap between biceps and forearms should be roughly 5-7mm, but everyone height is different.  That's just what I have read I hope it helps.

That’s not something that’s enforced. The gap between the bicep and forearm should be the same as the forearm and hand armour.
  • Like 1
Link to post
Share on other sites

That’s not something that’s enforced. The gap between the bicep and forearm should be the same as the forearm and hand armour.
Ok, thank you. Sounds like I should do a few fittings to get the gaps right before making the arm strapping. Stand by for an update!

Sent from my Imperial Communicator

Link to post
Share on other sites
Ok, thank you. Sounds like I should do a few fittings to get the gaps right before making the arm strapping. Stand by for an update!

Sent from my Imperial Communicator


Defo. I created straps from painters tape and adjusted countless times before settling on a good length and gaps.
  • Like 1
Link to post
Share on other sites
15 hours ago, tarok said:


That’s not something that’s enforced. The gap between the bicep and forearm should be the same as the forearm and hand armour.

5-7mm is what I read on Ukswrath build and he has specific measurements and screen references which I have been reading for my build.  Although its not a requirement for L2 or L3., that measurement helped with my strapping placement.

Link to post
Share on other sites

NEXT! I'm waiting for glue to dry on my shins, which means this weekend I look at... *ominous tuba* ... the sniper knee plate. First question: how does this look for trimming?




  • Like 1
Link to post
Share on other sites
22 minutes ago, MaskedVengeance said:

It appears that you’ve cut close enough there on the bottom, and that your side edges are vertical, which is most screen-accurate. You may want to post a profile angle photo so we can see your trimming on the top.


Sent from my iPhone using Tapatalk

Ok, no sweat. Here are some more angles. How do the sides look? I've seen a few other builds that reduce the return on the sides to get it to fit the angle at the top of the shins.







Link to post
Share on other sites

That trimming looks excellent, and will definitely be approvable through L3! The only thing to note is that@CableGuy would encourage trimming the side edges all the way vertical, as shown in the marked photo below. It’s one of those small details that some builders address, and others don’t. You’re definitely on track with matching the plate return profile with the shin.



Sent from my iPhone using Tapatalk

  • Like 2
Link to post
Share on other sites
That trimming looks excellent, and will definitely be approvable through L3! The only thing to note is that[mention=31976]CableGuy[/mention] would encourage trimming the side edges all the way vertical, as shown in the marked photo below. It’s one of those small details that some builders address, and others don’t. You’re definitely on track with matching the plate return profile with the shin.

96aa5c9742ea9e38f734bcf85919d2a3.jpg&key=3808c237a9d7a920e893b33e19971f1a95575d0ff89baaab08e7f71b97572922


Sent from my iPhone using Tapatalk
Great advice, thank you! I'll make those trims on the sides as you suggest. [emoji846]

Sent from my Imperial Communicator

  • Like 1
Link to post
Share on other sites

Because you all know "Redundancy" is my middle name, I've poured over other build threads for direction on designing shoulder elastics and shoulder bell straps that will be functional as well as sturdy. My high school physics education tells me that the greatest force placed upon the shoulder bells, exerted by the weight of the bicep and forearm, will be placed on the inside edge; near the armpit, closer to the centre of gravity. However, being shoulders (ie, a multiaxial ball-and-socket synovial joint), there needs to be a compromise between design and movement.



With that in mind, I've opted for the following: elastic inside the shoulder bell to allow flex with snaps to allow swivel; double snaps attaching the shoulder bell with nylon to the shoulder elastic (weight bearing and constant distance to shoulder elastic); double sew-on snaps on the shoulder bell nylon to attach to the shoulder elastic to spread the tension from the weight of the arm across a larger area of elastic than a single snap. I'll then use Han hooks to attach the biceps to each shoulder bell, again, keeping the tension on the inside.












The next consideration is where to attach the bicep to the forearm. Nylon will be needed in order to ensure a constant distance between the two pieces, but the placement inside each piece will affect movement. I may be overthinking this, but at the moment I'm gonna go with the inside edge closest to the body, which should allow for natural bending of the elbow without putting strain on the strap. Thoughts?

Edited by markgambino
Link to post
Share on other sites
Because you all know "Redundancy" is my middle name, I've poured over other build threads for direction on designing shoulder elastics and shoulder bell straps that will be functional as well as sturdy. My high school physics education tells me that the greatest force placed upon the shoulder bells, exerted by the weight of the bicep and forearm, will be placed on the inside edge; near the armpit, closer to the centre of gravity. However, being shoulders (ie, a multiaxial ball-and-socket synovial joint), there needs to be a compromise between design and movement.

With that in mind, I've opted for the following: elastic inside the shoulder bell to allow flex with snaps to allow swivel; double snaps attaching the shoulder bell with nylon to the shoulder elastic (weight bearing and constant distance to shoulder elastic); double sew-on snaps on the shoulder bell nylon to attach to the shoulder elastic to spread the tension from the weight of the arm across a larger area of elastic than a single snap. I'll then use Han hooks to attach the biceps to each shoulder bell, again, keeping the tension on the inside.

Bbi9Zjv.jpg&key=d3d7d0d75cd208ddbab8a44b7337b96d70c8ad5f01305925f10d317f39ceda4a

fEgnnFL.jpg&key=0c3f4d298d5623d797dff62972418dc7f42f0df90902246843c07efabbdf4765

kABjQmZ.jpg&key=c55971611153700876befb5b9fd82fdad6c7ba5243cce85fd30d43b5b88844fe

The next consideration is where to attach the bicep to the forearm. Nylon will be needed in order to ensure a constant distance between the two pieces, but the placement inside each piece will affect movement. I may be overthinking this, but at the moment I'm gonna go with the inside edge closest to the body, which should allow for natural bending of the elbow without putting strain on the strap. Thoughts?

Hi Mark,

A very well thought out build - kudos. :-)

Regarding the strain on the shoulder bells - I wouldn’t worry too much. With well fitted parts, there’s not as much stress as you’d think. Especially as your arms are likely to be bent for a large proportion of your time as you’re likely to be holding a blaster. With your arms bent, the weight is reduced from the shoulders.

Also, the arm parts are quite light so it’s really not that bad. I had nylon straps joining my chest to back on my old suit and it was fine. For my latest suit, I’m using white elastics like the originals and it’s also holding up perfectly.

You’ll see the strapping here:


Regarding the bicep to forearm, I like to follow the method used for the original suits - this allows the arms to align naturally, just like the original suits did. I wouldn’t recommend nylon as this will add MORE strain to the arms as nylon has no “give”. With elastic, all of the parts have a little wiggle room.
Here a video I did on the subject of arm connections;



There’s quite a few other handy TK videos on there so feel free to check them out. :-)
  • Like 3
