Troopermaster (TM) ANH Stunt build


rtfitzpa

Recommended Posts



Hi all!



I’ve built a WTF Snowtrooper and a 2016-ish Anovos ANH TK (I found the plastic to be very thin), so for build #3, I’m putting together this Troopermaster kit I bought more than a year ago, capped in 2mm gloss finish (much sturdier!).



I am aiming for Centurion accuracy on this build.



For some additional context, I plan to 'retire' my Anovos kit, while utilizing some of the parts, such as gloves (which I got as a combo from Trooperbay) and boots (Imperial boots). TM's kit looks to come with just about all of the strapping and rivets needed.



As side notes, I also have a build thread started for Jim’s fiberglass (V.5?) First Order TK (which I hope to resume work on after this build, since I’ve had it for almost a year and half with virtually no work on it) and a WTF Scout Trooper on the way.



For reference, I’m about 5’6” and 150 lbs., so I know I’ll need to do some heavy trimming on this TK.l, given my experience with my Anovos build.



I’ll try to share as much of the build as possible to assist fellow Imperial troops.



For the Empire!








Sent from my iPhone using Tapatalk



Edited by rtfitzpa
  • Like 1
Link to comment
Share on other sites

Here are some closer photos of the helmet, which I’ll be starting with. Also a big thanks to TM for the detailed strapping labeling!



Sent from my iPhone using Tapatalk

Edited by rtfitzpa
Link to comment
Share on other sites

Also - I snagged some NEAT foam helmet liners from WS Custom Helmet Liners. I bought a second one for the Scout that I’ll be working on at some point. I found them through their Facebook shop... Very high quality and so practical.



I've tried hardhat liners and chin straps in the past, but my head can't turn much anyways because I don't have a long neck (the helmets haven't been able to clear the should bells very well). And since I'm not tumbling around during photo ops, I'm content to just let it rest in place with enough padding on the top of the helmet.



Sent from my iPhone using Tapatalk

Edited by rtfitzpa
  • Like 3
Link to comment
Share on other sites

Helmet marked for trimming - I used a dry erase marker.

Spent a good deal of time on the eyes tonight, using a combination of sandpaper and exacto-knife.

I’ll probably try the ears next... a tad intimidated about not cutting too much off of them.



Sent from my iPhone using Tapatalk

  • Like 1
Link to comment
Share on other sites

Wondering if anyone has any ear-trimming advice? I’ve made some basic cuts, but I’m afraid to work too quickly!



It’s my understanding that they should be angled slightly downward to the front of the helmet? This ATA video shows a neat way to achieve that.







Sent from my iPhone using Tapatalk

Link to comment
Share on other sites

9 hours ago, CableGuy said:

Hi there, Trooper,

I did a whole video series on building a TM helmet, if it helps. This covers basic trimming, ears, construction and painting.





Here’s how it turned out.

522aeea3b1404218d39e70e7368a6100.plist


7c041b4073b623d5b6778cbf31c92a05.plist




Excellent!! thanks - that's very well done. I deeply appreciate your help and work documenting that process!

  • Like 1
Link to comment
Share on other sites

  • 3 weeks later...

So potentially a small snag in the build...

There seems to be quite a large gap between the faceplate and the dome, where the ears would cover. In attempting to rivet the bottom (with some slight tug to try to close the gap), the plastic has torn on me twice. I feel I am losing space to connect the rivet

The side by side is the Anovos helmet which was approved at Centurion a few years back.

Thoughts?



Sent from my iPhone using Tapatalk

Link to comment
Share on other sites

You will find that the ears should cover that opening. What I try to do is add some screws higher up so you aren't tearing the bottom sections. I don't like using rivets as you are stuck once you add them in, or you are very careful drilling them out.

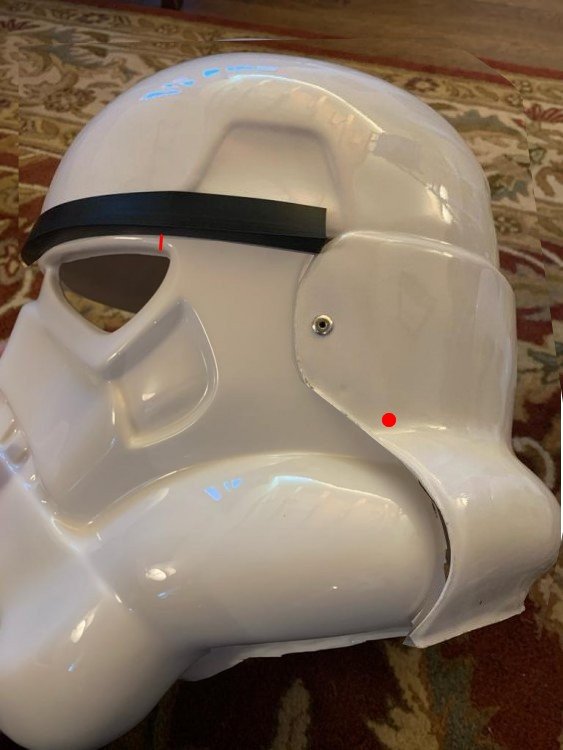

Appears your brow height is very high, if you dropped this a little it would help the sides, I've dropped it in the following image which will help the inset curves meet each other, you can also add a screw lower which will help pull the ears in. Just make sure where ever you add more screws/bolts that you check your ears will cover ;)



30125012_imageproxy(1).jpg.80eab0872bd84ad77791299ef3f4cf75.jpg  UG3rXNU.jpg&key=81bc59afcc4edc8f945e7ec9

Link to comment
Share on other sites

Hi trooper,

The gaps at the moment are caused by the alignment of the faceplate. You’ll want to carefully remove the rivets and experiment with magnets first to get it aligned correctly.


Notice below on an original helmet how the yellow line flows from back to faceplate.

99a0fc78b655f9bfc5cbb4825bc77da3.plist

At the moment, yours is very offset.


This is the primary cause of the gaps.

Do you have photos from around 6 feet back (always the best distance to take photos from) from all angles? Like this?


This is my own TM lid but it gives an idea of the ideal alignment. :-)

  • Like 2
Link to comment
Share on other sites

On 10/12/2020 at 11:31 PM, CableGuy said:

Hi trooper,

The gaps at the moment are caused by the alignment of the faceplate. You’ll want to carefully remove the rivets and experiment with magnets first to get it aligned correctly.


Notice below on an original helmet how the yellow line flows from back to faceplate.

99a0fc78b655f9bfc5cbb4825bc77da3.plist

At the moment, yours is very offset.


This is the primary cause of the gaps.

Do you have photos from around 6 feet back (always the best distance to take photos from) from all angles? Like this?


This is my own TM lid but it gives an idea of the ideal alignment. :-)

Thanks! Adjustments have been made... do you recall if you trimmed much off of where the brow trim will be? If I line up the yellow lines, it pushes the eyes pretty close to the brow.

Link to comment
Share on other sites

Hi folks,

Ears are attached and completed thanks to the tutorials posted earlier. I’m pretty happy with the contour of the ears. It took a few hours, I’d say, just going back and forth with the Dremel and a pencil.

The screws are in, although they protrude slightly. Should the holes be drilled slightly larger than they currently are to allow it to be flush?

In starting to trim up the underside, I noticed a small stress crack. Any suggestions on how to reinforce this?

I’ve ordered mesh for the frown and painting stencils from trooperbay.

Thanks all!




Sent from my iPhone using Tapatalk

Link to comment
Share on other sites

Nice work, although your right side looks a little straight, compare with the images Dan posted above

730c85099fb4a2feb4045861b92c15da.jpg&key

Link to comment
Share on other sites

9 hours ago, rtfitzpa said:

The screws are in, although they protrude slightly. Should the holes be drilled slightly larger than they currently are to allow it to be flush?

Use a large drill and gently turn it by hand to countersunk the screws:salute:

Link to comment
Share on other sites

Some updates:



Most parts are roughly trimmed. Per TM’s suggestion, the edge of the canister is beveled and the end caps are trimmed to 20mm.



I went ahead and started painting the helmet, using CableDan’s videos as a reference (thanks!!). The grey seems dark to me, but it is Humbrol #5, especially when compared to the canister. There is a handy color code floating around the forums

31201091045_f616e14d58_b.jpg&key=cfb397e47481a45d053420de0f94798074c82f1a37f5f78103a7f337f0d0d522

I also ordered some screen mesh for the frown and stencils for the other painted areas from Trooperbay and have arrived.



d0e20e0998d29ac5d760e17b83036436.jpg&key=0287ac0d285d79d233d1c5e7d5ece7496786e024b8a37211c0e977a3e776bb4d

175404817bd58a6e0683ba89ce335506.jpg&key=cf148c9eab5a1ec5cd7695c0048326e14c2a23663390d9ada94743ac2f6d3492

455f04a3424984ce2a8bf2150d67b498.jpg&key=6d6fbe92f31e4a65bd8f91f46ae89d292d6348b0427b2a1563b5b4e1a227790c

5852b71e44e8647c102632c10c40050d.jpg&key=6632e174ce1fcf2e0b227918f8c41b4d3de1861b1a8edf56fb03acef15fcb3d9

8bb1a432f40748c37c86bc56fcf2d535.jpg&key=0269b733c0b80e4abdc31a76d9e7e52d560576c4e624632ace3c6363c8ae96d9

16c004431bc8549acc784ca07ef5ceaa.jpg&key=a7b4fff22472af9836c569cb0a7d5b1a42f7538a650905a086287158f8d7b31b

1f3b9c2bb98e69f9d243eb4e9c26bd39.jpg&key=3377c5c4428eba3e07086300b7bc48609e692ee45f2f964e8865ded327b03c20

0fac058e3aa87f069a01bf83133c6c2a.jpg&key=096ca448f4a48466f700273233e78ba846dbe34a44ef0823702ae1fd1255f7e0

5c104baa1a0805ed3a3f195f4898e5e8.jpg&key=84f67f1ddbe02cb84ad1cc612a1c7963569aec88052a00d286e3c06f907fe40d




Edited by rtfitzpa
  • Like 3
Link to comment
Share on other sites

You could recess the ear screws a little more, just using a larger drill bit and turning gently and applying a little pressure by hand.



Not sure how you are painting but it is easier to paint the black edges first as you are only trying to keep the outsides straight, the inside doesn't matter so the lines don't need to be really thin, you paint the grey over the top of any excess black, you get straighter lines this way.



Looks like your vocoder may need some tidying up too






Some references for the teeth areas, try not to get paint on the gums


Link to comment
Share on other sites

15 hours ago, rtfitzpa said:

In doing some research, I found a great build that might be an excellent resource to fellow Imperials.



https://www.whitearmor.net/forum/topic/48337-mvs-anh-tk-stunt-ata-1st-build-thread-for-centurion/



Glad you like the thread. I've been drafting my next update for over a month now, hoping to have it up by this weekend.

  • Like 1
