arduino: a cheap board for E11 blaster effects


Recommended Posts

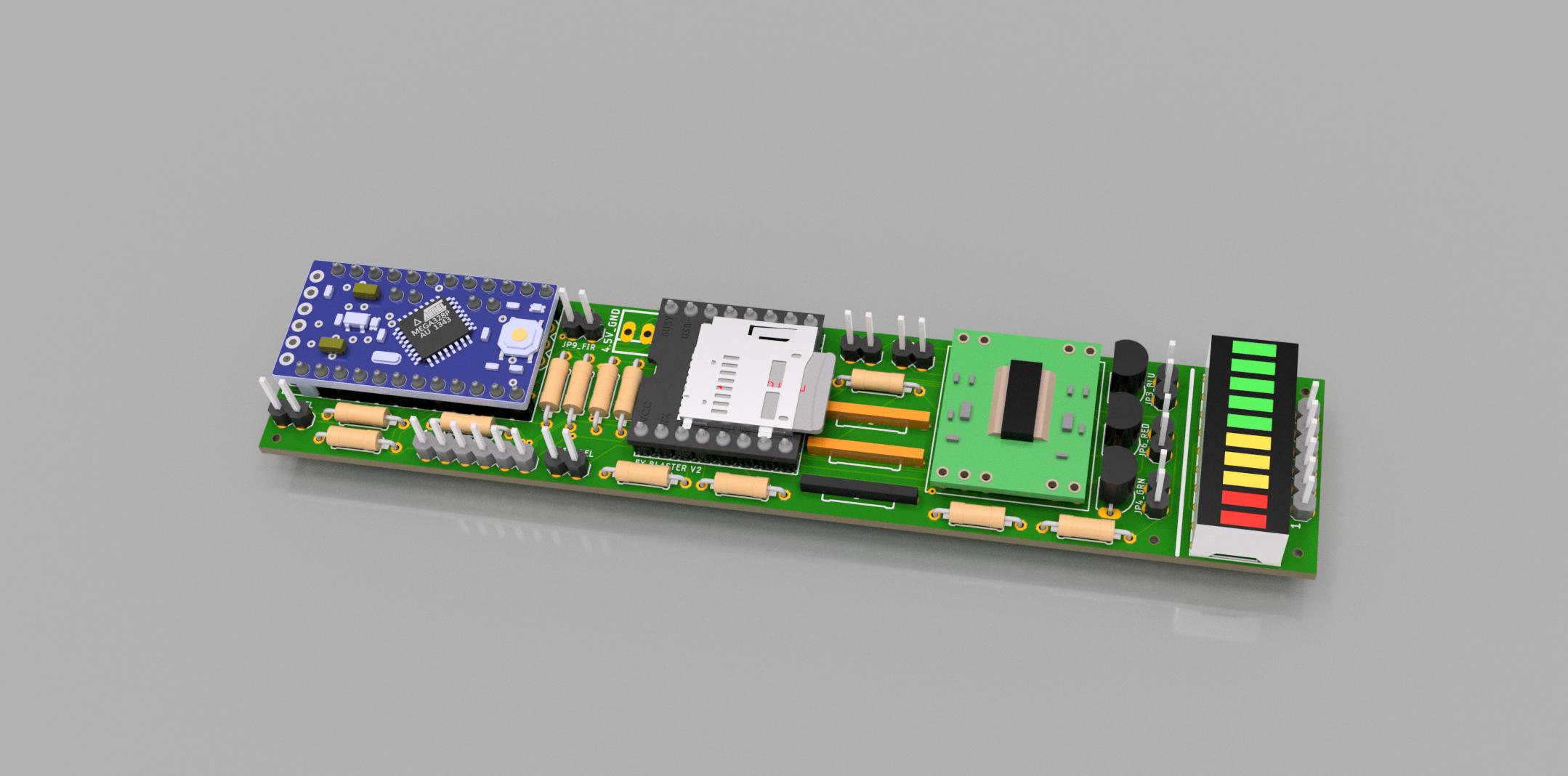

just note i made an easy assembly board to make the work easier and better. Just succesfully completed its testing, the sound is loud and clear, no clipping or noise, thanks to PCB connections. With this board it will be easier to fit arduino and their components inside the PVC pipe, saves extra cables and work, no mistakes.






Size WxLxH mm
main unit: 91x29x21.8
drivers module: 41.5x29x18.70
bar leds module: 35.5x19.5x9.85







Edited by skyone
  • Like 3
Link to comment
Share on other sites

  • 2 weeks later...

Best regards from Spain...

First of all great job yours...

I have in my hardware teensy 2.00 ++ hardware, yes I know it´s not arduino but I can programe it using arduino code, the only thing it´s will change the pinout position.

The trouble it´s when I compiled your .ino files...appears errors, seams to fault the libraries or some similar stuff to complete the compiling process.

Here quoted I show you the compilling message .txt.

Thx a lot for your kinddly attention.

The first one pcb its mine.




Quote

Arduino:1.8.8 (Windows 7), TD: 1.45, Tarjeta:"Teensy++ 2.0, Serial, 16 MHz, US English"

sketch_mar03b: In function 'void setup()':
sketch_mar03b:234: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b: In function 'void loop()':
sketch_mar03b:271: warning: comparison between signed and unsigned integer expressions
       if ((millis() - start_hold) >= HOLD_DELAY){                   // for longer than x/1000 sec(s)

                                   ^

sketch_mar03b:276: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:285: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:318: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00); // single and no cycle

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:351: warning: suggest parentheses around comparison in operand of '&'
          if (buttonPushCounter2 >= 17 & buttonPushCounter2 <= 20) {

                                 ^

sketch_mar03b:441: warning: suggest parentheses around comparison in operand of '&'
          if (buttonPushCounter3 >= 17 & buttonPushCounter3 <= 20) {

                                 ^

sketch_mar03b:699: warning: comparison between signed and unsigned integer expressions
   if(currentMillis - previousMillis > interval) {

                                     ^

sketch_mar03b:802: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:879: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:959: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:1052: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:1155: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:1266: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:1330: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:1344: warning: comparison between signed and unsigned integer expressions
   if(currentMillis - previousMillis > interval) {

                                     ^

sketch_mar03b:1389: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:1415: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:1481: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:1538: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b:1582: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b: In function 'void empty_classic_weapon()':
sketch_mar03b:1648: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b: In function 'void ping_garand()':
sketch_mar03b:1658: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b: In function 'void reload_ammo_classic()':
sketch_mar03b:1668: error: call of overloaded 'write(int)' is ambiguous
     Serial.write(0x00);

                      ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2:0,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:18:17: note: candidate: virtual size_t usb_serial_class::write(uint8_t)

  virtual size_t write(uint8_t c)  { return write(&c, 1); }

                 ^

In file included from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Stream.h:24:0,

                 from c:\program files\arduino\hardware\teensy\avr\cores\usb_serial\usb_api.h:6,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/usb_api.h:2,

                 from C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/WProgram.h:22,

                 from C:\Users\MARIAN~1\AppData\Local\Temp\arduino_build_726041\pch\Arduino.h:1:

C:\Program Files\Arduino\hardware\teensy\avr\cores\teensy/Print.h:48:9: note: candidate: size_t Print::write(const char*)

  size_t write(const char *str)   { return write((const uint8_t *)str, strlen(str)); }

         ^

sketch_mar03b: In function 'void statusCounter6()':
sketch_mar03b:1678: warning: comparison between signed and unsigned integer expressions
                if(currentMillisAmmo - previousMillisAmmo > intervalAmmo) {

                                                          ^

call of overloaded 'write(int)' is ambiguous

Este informe podría contener más información con
"Mostrar salida detallada durante la compilación"
opción habilitada en Archivo -> Preferencias.





Link to comment
Share on other sites

  • 1 month later...
  • 1 month later...

Look here: https://github.com/Protonerd/FX-BlasterOS/tree/master/Sounds/FXBlasterOS_SF1_E11



You might need to reshuffle the order of the files but this link contains a full blaster sound set. Check from time to time for updates, as later on I might release new ones.

Link to comment
Share on other sites

On 5/23/2019 at 12:47 PM, RankAndFileTrooper said:

Look here: https://github.com/Protonerd/FX-BlasterOS/tree/master/Sounds/FXBlasterOS_SF1_E11



You might need to reshuffle the order of the files but this link contains a full blaster sound set. Check from time to time for updates, as later on I might release new ones.

Thanks for the link to your open source blaster Andras.  I’ve built one of those boards too with your help.  I am hoping to find the sounds for this blaster project because this one has sounds like tie fighter, X-wing and many more that I can’t find elsewhere.  Hopefully Skyone or something else has the sounds files for this blaster.  Thanks again.

Link to comment
Share on other sites

  • 5 weeks later...
On 5/22/2019 at 4:33 PM, joby619 said:

Does anyone know where I can get the sound files?  I PM,d skyone last week but he hasn’t been on for awhile.

just send me a PM and i will send you the link with the zip file to download



(sent you)





IMPORTANT NOTE ABOUT THE PROJECT: i fixed the RESISTOR value between the MP3 Player (DF Player) and Arduino, it must be 1 KOHM instead of 10KOHM or the DF player (and clones) wont work fine or at all!

Edited by skyone
Link to comment
Share on other sites

  • 3 months later...
On 2/22/2019 at 12:07 AM, skyone said:

just note i made an easy assembly board to make the work easier and better. Just succesfully completed its testing, the sound is loud and clear, no clipping or noise, thanks to PCB connections. With this board it will be easier to fit arduino and their components inside the PVC pipe, saves extra cables and work, no mistakes.






Size WxLxH mm
main unit: 91x29x21.8
drivers module: 41.5x29x18.70
bar leds module: 35.5x19.5x9.85









On 2/22/2019 at 12:07 AM, skyone said:

just note i made an easy assembly board to make the work easier and better. Just succesfully completed its testing, the sound is loud and clear, no clipping or noise, thanks to PCB connections. With this board it will be easier to fit arduino and their components inside the PVC pipe, saves extra cables and work, no mistakes.






Size WxLxH mm
main unit: 91x29x21.8
drivers module: 41.5x29x18.70
bar leds module: 35.5x19.5x9.85







hi i am new to all of this where can i buy the green boards?

Link to comment
Share on other sites

  • 5 months later...

updating this project a bit, i canceled the led drivers and moved to 3 transistors + 3 resistors 1/2w to control the 3watt RGB super bright leds

i will post more updates with the scheme


Edited by skyone
  • Like 3
Link to comment
Share on other sites

  • 2 weeks later...
On 4/16/2020 at 5:13 AM, darthcue said:

Is your easy assemble board available for purchase?

Sent from my LYA-L29 using Tapatalk


i have to finish the E11/sterling model first, to make boards 100% compatible with spaces, speakers, led and buttons




  • Like 1
Link to comment
Share on other sites

i have to finish the E11/sterling model first, to make boards 100% compatible with spaces, speakers, led and buttons
ASSEMBLY-ARDUINO-v28-recovered-5.png&key=2b52a954a89fde064f684fc771a8e093274bc75c3ae2722b4c3894f00496e5b9

I will wait for this...

Sent from my LYA-L29 using Tapatalk

Link to comment
Share on other sites

  • 3 months later...
  • 3 weeks later...
  • 1 month later...
On 8/12/2020 at 9:33 AM, Hesikaya said:

How is the progress coming? I have another blaster project and am looking forward to this nifty innovation.

i just tested the new pcb board where i replaced the led drivers with 3 small transistors and it was working fine if there wasn't an error on the original scheme (i used a differente transistor schematic) so i have to reprint another stock



120429580_3387867928104523_7178931491718

Edited by skyone
  • Like 3
Link to comment
Share on other sites

  • 3 months later...
  • 3 months later...
  • 1 month later...
  • 1 month later...

Hello, I am a member of the spanish garrison and I am making my e-11 blaster with 3d printing, I am looking for the sounds of this project since I like that it has several such as tie etc. Can someone help me get them? Thank you very much in advance

  • Like 1
Link to comment
Share on other sites

50 minutes ago, lordteddius said:

Hello, I am a member of the spanish garrison and I am making my e-11 blaster with 3d printing, I am looking for the sounds of this project since I like that it has several such as tie etc. Can someone help me get them? Thank you very much in advance

Standard Stormtrooper blaster sound effects links:


Stun http://play.starwars.com/starwars_soundboard/asset/audio/BSR_blasters/blast_09.mp3


Kill http://play.starwars.com/starwars_soundboard/asset/audio/BSR_blasters/blast_10.mp3



Link to comment
Share on other sites

  • 1 year later...
27 minutes ago, Mivay said:

@skyone i was wondering if i might get the zipfile of your sounds for my build ... thanks

You can find a lot of the sounds here:

Also here: https://github.com/Protonerd/FX-BlasterOS/tree/master/Sounds

Link to comment
Share on other sites

  • 3 weeks later...

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

Loading...
×
×
  • Create New...
