We see the imperial Commandos using few different blasters in episode 23 and 24, we currently don't have a stack of clear references but there are a few out there

Please share what you find here.



I'll start with what looks to be their standard side arm, a hybrid  of the old SE-14 as seen in this screen cap.






Link to comment
Share on other sites

  • Sly11 changed the title to Pistols and blaster rifles
  • 1 month later...

Definitely looks like another modified E-10. This one appears to be the same basic concept of the extended barrel SMG with an HK-416 stock, M.H.R. 1943 M43 scope and a few similar accessories. However, I'm having a difficult time determining if they're utilizing another Sterling SMG for the base of the blaster or if they went with something else. I robbed this pic from another thread, but am curious if there's anything else showing this blaster in full frame?




  • Like 1
Link to comment
Share on other sites

  • 7 months later...

Hi,

Since I'm doing my build for the imperial commando, I wanted to have a rifle and decided to design it, as none is available on the web. I gathered the pictures from the Madolorian S3 E17/E18 and here are the additional pictures I used on top of the one above in the thread to design the rifle.

gun reference pic4.jpg

gun reference pic 2.png

gun reference pic3.jpg

Link to comment
Share on other sites

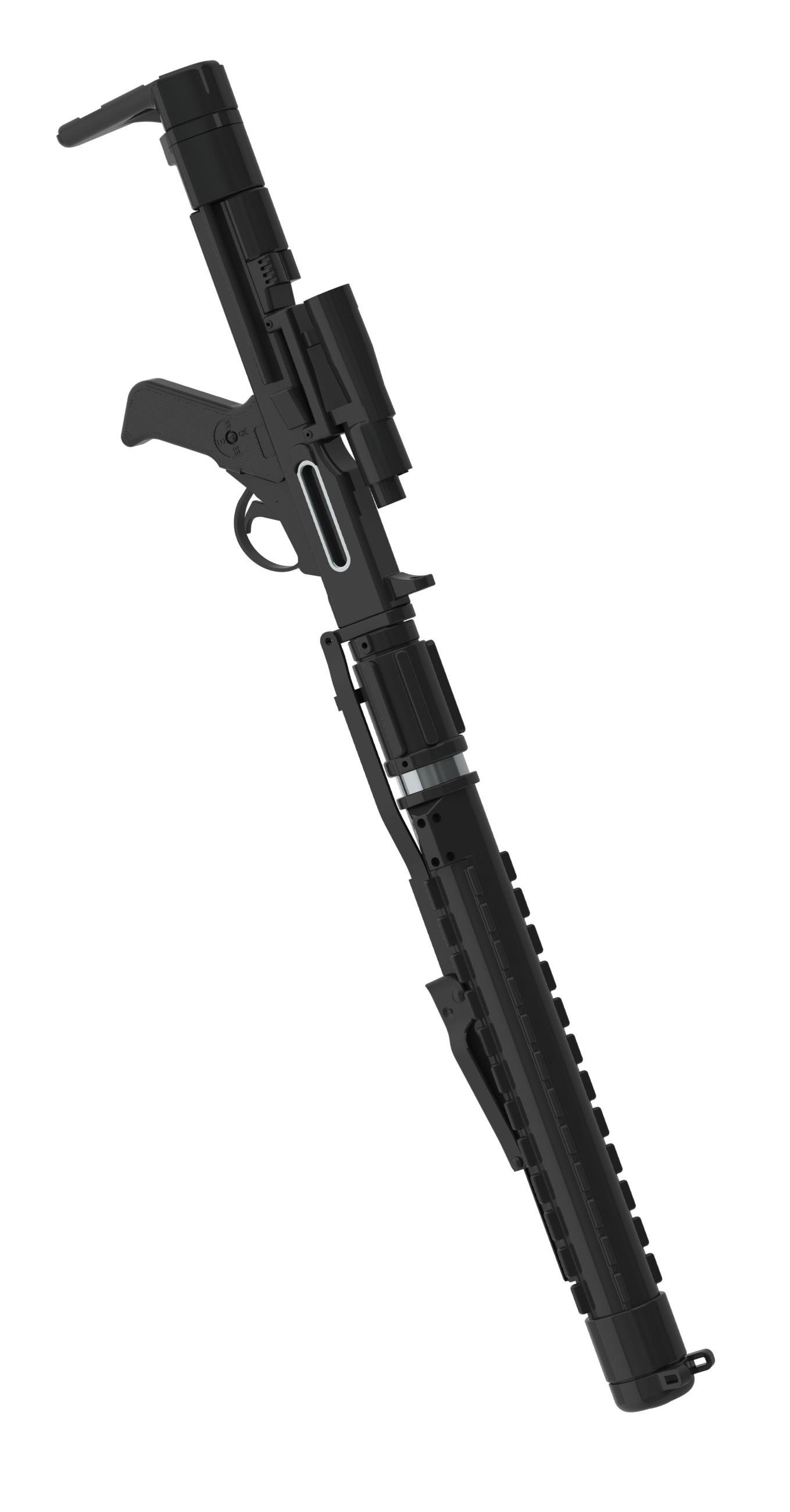

Here is the first version of the design. It's a few days from being completed to be ready for 3D printing. I have taken a snapshot with the same orientation as the highest definition picture taken in the movie. Comments/ corrections required would be welcome :)

I can only post 1 picture here ( all thread files posted need to be below 500kb ?!?), so here's the link for a google drive containing the other views.

https://drive.google.com/drive/folders/1cqZ70bAP41Jh9NEoOWGJuqDjssh0HBSf?usp=sharing





side view 2 reflective_LR.jpg

Edited by Sithtrooper02
  • Like 1
Link to comment
Share on other sites

6 hours ago, Sithtrooper02 said:

I can only post 1 picture here ( all thread files posted need to be below 500kb ?!?



Correct forum only allows a certain amount of images and size, most use a free online image host, upload their images there then copy the links into their forum posts





Link to comment
Share on other sites

Sorry about being a bit late to the discussion, but I remember thinking when I saw that episode “Hey, that’s the gun the Mountain Troopers were supposed to have! (At least according to Hasbro.)

And then I completely forgot about it.

Anyway, here’s the E-11P (after the initial modeler)/Mountain Trooper blaster:

https://forum.501stpathfinders.com/topic/21874-mountain-trooper-new-weapon/

I should still have the files on my Google drive, but I’ll have to check.



Link to comment
Share on other sites

Thanks Wompet,



It is a bit similar, but many many differences. The mountain trooper gun refence is here on the CRL:
https://databank.501st.com/databank/File:MT_blaster.png



You can see from reference pictures in this thread above that, many things are not similar. But stock is a PDW style with two side rods, no side mag, front rail under the grip, metallic disk separating barrel from receiver, not a sterling ejector (longer and thinner), The M38 scope is on a submount, no hole in the front barrel, but 4 rows of grips,etc...

Link to comment
Share on other sites

Here's the pics of the finished blaster rifle! from 3D print, sanding/bondo/primer/black basecoat/dark aluminum airbrush / black airbrush and scratching/weathering. The few metallic parts are graphite finished. Only M38 scope is brass finished as original part wear out coloring.  I also took a picture with my current Sith trooper armor, while the other one is far from finished to give a feel of the size and handling.



[url=https://ibb.co/yBNHrSn]B3-F53027-AFD6-4755-B10-E-A2325-E8-FC106[/url]

[url=
https://ibb.co/yBNHrSn]B3-F53027-AFD6-4755-B10-E-A2325-E8-FC106[/url]

[url=
https://ibb.co/d6RGjjk]6-DB618-D1-ADEF-49-DD-A48-B-D6-DDD5-FD73[/url]


[url=
https://ibb.co/KN4ccGK]AFFC31-A7-A2-EA-40-E7-A82-D-C971-BEA2-CC[/url]


[url=
https://ibb.co/VHpMqZ5]6-FB65-B4-A-DEB1-4-F25-9-A6-A-849724-BAF[/url]

Edited by Sithtrooper02
  • Like 4
Link to comment
Share on other sites

13 minutes ago, Sithtrooper02 said:

Here's the pics of the finished blaster rifle! from 3D print, sanding/bondo/primer/black basecoat/dark aluminum airbrush / black airbrush and scratching/weathering. The few metallic parts are graphite finished. Only M38 scope is brass finished as original part wear out coloring.  I also took a picture with my current Sith trooper armor, while the other one is far from finished to give a feel of the size and handling.



https://ibb.co/yBNHrSn]B3-F53027-AFD6-4755-B10-E-A2325-E8-FC106[/url]

https://i.ibb.co/6Nd9DY8/6-D09-D1-E5-9-A78-4-C72-8-C7-E-B00-C1-DCE45-F9[/url]

https://i.ibb.co/xm9KKsF/AFFC31-A7-A2-EA-40-E7-A82-D-C971-BEA2-CCDC[/url]

https://i.ibb.co/z8HP4YD/6-FB65-B4-A-DEB1-4-F25-9-A6-A-849724-BAF758[/url]

https://i.ibb.co/CvfhmmV/6-DB618-D1-ADEF-49-DD-A48-B-D6-DDD5-FD73-D6[/url]

Looks like some of your image links aren't working, I'm only seeing one image

Link to comment
Share on other sites

36 minutes ago, Sithtrooper02 said:

@gmrhodes13 Sorry, my first time working to post images on a BB for a long  time, there are an infinite numbers of ways to post. Now fixed!



Some very nice metal weathering there :duim: :salute:

Link to comment
Share on other sites

Admittedly I'm on very strong pain meds at this moment. But... were the print files shared somewhere or purchasable? I don't see links in this thread or the Pathfinders one. It's a lovely blaster.
