Raindrop’s Doopydoo Build


Recommended Posts

So after almost 5 months of waiting for BBB day, it still hasn’t arrived yet. My vendor says it should be another week or so until is ships. Decided to bust out a project I meant to have done months ago, which is a Doopydoo kit. I’ll get pictures posted as soon as I can figure out how on Tapatalk. I keep getting errors.

I have most of the parts primed, and will begin gluing the parts together before I add one last primer coat (My coats aren’t exactly thorough)
Edit: Pictures are working now.

  • Like 2
Link to comment
Share on other sites

Decided before I put my last coat of primer, I’d start gluing together the pieces. Between the months of me opening the box and painting the pieces, I ended up loosing the rear crosshair and the D-ring, but thankfully for me I can 3d print replacements.d05add9f743c9bdafa3e8eb2db2a24c6.jpg


Oh, I also printed out a rail. The rail will be further sanded, as well as a few more coats of paint. It wasn’t my best print, but it is certainly useable.

Link to comment
Share on other sites

If it were me, I would reconsider using a 3D printed rail, JR.  The reason being is that it will be pretty thin, and since you will have not only the scope, but the Hengstler counter as well mounted to it, if it gets bumped hard the rail could break.  Ouch.



I would seriously think about using steel or aluminum.  You can pick up a 3/4 wide strip from Lowe's for a few bucks (in the hardware area), cut it to length and cut/bend then end.  There is an EXCELLENT tutorial here that will help:  https://www.whitearmor.net/forum/topic/32111-fisd-e-11-blaster-reference/?do=findComment&comment=414706



Although you can order the one piece metal ones (bracket attached to the rail as seen on your 3D printed one) online, I just bought an L shaped bracket (Lowe's), screwed it to the counter and then to the rail.



EBAe1Yh.jpg?1    pxqHV1k.jpg








  • Like 1
Link to comment
Share on other sites

25 minutes ago, justjoseph63 said:

If it were me, I would reconsider using a 3D printed rail, JR.  The reason being is that it will be pretty thin, and since you will have not only the scope, but the Hengstler counter as well mounted to it, if it gets bumped hard the rail could break.  Ouch.



I would seriously think about using steel or aluminum.  You can pick up a 3/4 wide strip from Lowe's for a few bucks (in the hardware area), cut it to length and cut/bend then end.  There is an EXCELLENT tutorial here that will help:  https://www.whitearmor.net/forum/topic/32111-fisd-e-11-blaster-reference/?do=findComment&comment=414706



Although you can order the one piece metal ones (bracket attached to the rail as seen on your 3D printed one) online, I just bought an L shaped bracket (Lowe's), screwed it to the counter and then to the rail.



EBAe1Yh.jpg?1    pxqHV1k.jpg

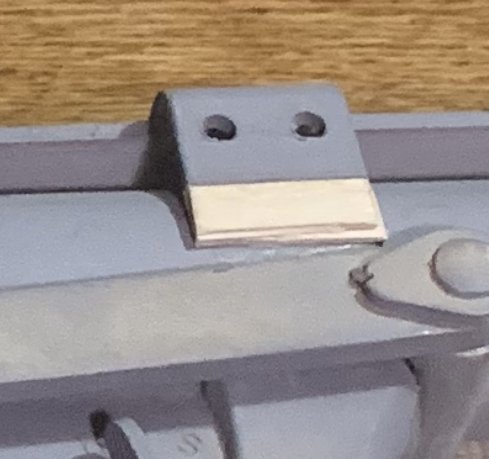

I was originally going to use an aluminum rail, but last night I decided to go for a less conventional route that may sacrifice accuracy. I’m already in the process of 3d printing an M38 hollowed scope and keep the resin scope for another project I have planned. Regardless, I’ve reinforced the rail and supported the ammo counter bracket and it is surprisingly solid.



Granted this is not a trooping blaster with the soul intent is just something for me to play around with. I have no doubt will break with prolonged use, but for the time being, I’m happy with this stop gap measure of putting a wooden piece under the ammo bracket. The rail isn’t flexing, and I’ve made more surface area for the ammo counter to be securely glued and fastened. Thinking I may use an epoxy weld to make sure everything is solid just as a further precaution.



I am really glad you provided that link however, because now I have a backup plan for when mine eventually fails, although I still want to give this a shot.





Quick question though, what height should the ammo counter be? I tried looking at the gallery section but couldn’t really find any detailed pictures for the E-11. I looked through the high res ANH blu-ray pictures and it seemed that the blasters with the counters had them lower, basically resting on the stock. I don’t really trust any of the google image results.


Link to comment
Share on other sites

20 hours ago, TheDecisiveRaindrop said:

Quick question though, what height should the ammo counter be?

These should help give you a good idea...



qBdVF5S.png?1  VAoTekI.png  n0gZ6FA.png?1

  • Like 2
Link to comment
Share on other sites

  • 3 weeks later...

Bit of a status update with my blaster. The magazine has been added to the reciever and glued to the pipe. I painted the blaster a silver color, giving it 2-3 good coats before I put on a solid first coat of black paint, then a lighter coat later on. All was going well so far.

6a2a459f34f294335be8e2913418cea7.jpg&key=6792871ce10eba4ca49b6401be1d67f202a1c184c2fa420cd37288f358649bb2

After I put on a black coat, tragedy struck and the magazine assembly broke off. I was using E6000 which I now understand why from experience it is the recommended glue, but it wasn’t quite strong enough for my liking.63e3e262253398a56ea4ca4af5700bb2.jpg&key=8d7862679152c642b08c19f84f57643417ca31cfb7724f690ec977813682ef3f



I then sanded down and removed the paint where the ammo counter was gonna be mounted.

8b693129682208c32ce360be91699f8b.jpg&key=a1ca90d4f78e9c948c8e124a80d68b78d0b3dc37332ed051dd3ab7d43855caf9

Next came the part where I added some wood to the magazine assembly to give it more surface area to cling on to. 8c58801ec7f1d9a2fc79a259c7f52857.jpg&key=3c8998839be4064ae292bca06344228fd3bdf415dbb7c3afa58f828a0a09c1e8



I used a 3900 psi epoxy, and this was my first time using an adhesive that strong. I wore a respirator and gloves while working with it.99893fd1fc70bb4e290ea0f67c262749.jpg&key=6f2903ee087916eca2cc46a1f8add231be15b93848fdd633273a0640d9541ae5

Got the scope and the rest of the greeblies attached, except for the end cap. That’s just resting there. I had the shell ejection port masked along with the T rings. The ejection port is still the silver color that I put on before the black paint, and the T strips I intend on going over those with Flex Seal to give it a rubbery feel.



As time went on, I realized I made a horrible, terrible mistake that seemed so obvious. The black paint I used was glossy, and it stuck to every surface I sat it on, as well as catch all the dirt and dust from outside where I was working on it. Something had to be done.




And by the power of acetone, I was going to try to remove as much of the gloss paint as I could and leave as much of the silver paint underneath it.ad8420fea0eac10629e56a032f8796c6.jpg&key=9fe85eb9e3954f574b655f61c33239e039b214d90836e0c08620cff372d6ec36



I ended up calling this as “good enough” and I saw that because of how sticky the gloss paint was, it created all these unique textures that I actually really liked. So I decided to keep then and basically start painting all over again.51cc075c612dfce20ccef30d20e0b18d.jpg&key=d2c600b50d61a34e72585aaf327bc9751654fc3a36bc543cdfae9398fe28aae81ad7c495a4a08bdca57a5b66a2757180.jpg&key=ba294b3e6cdbeb8b952c7bbc547b989f9f43ec66d7de5a5e796654c1490c9421



I used a much nicer silver paint and tried to find the closest to brass color for the scope. Hopefully you can see the texturing on the blaster, reminded me of cast iron surfaces. As a tank nerd, this really pleased me.

9128a47bc88920ae0f92f02efd4538be.jpg&key=091539d6f423af87f10e8f1a32a45e152b744d6e6aebda26ac9dc6ff7a9c8e0e

Painted the blaster with a flat black this time. I decided I wanted to try a trick I saw with other weapons where you put graphite on the surface to give it a sort of dark sheen to it, so I gave it a go.





To be continued shorty. (I realized I haven’t taken pictures of the weathering yet)

  • Like 1
Link to comment
Share on other sites
