OK here is my attempt to build a Doopy Doos resin E11 Blaster.

This may have been done already but…

The package from the Royal Mail arrived and I eagerly opened it. Balloons and blue arrows

After dumping the bits out on the kitchen table. I triple checked the box for the assembly instructions.

No luck. There were no instructions. No problem how hard could it be, right?

I was lucky and was able to borrow a de-milled Sterling L2A3 to compare resin parts to real steel part.

This is my build thread-

Craig

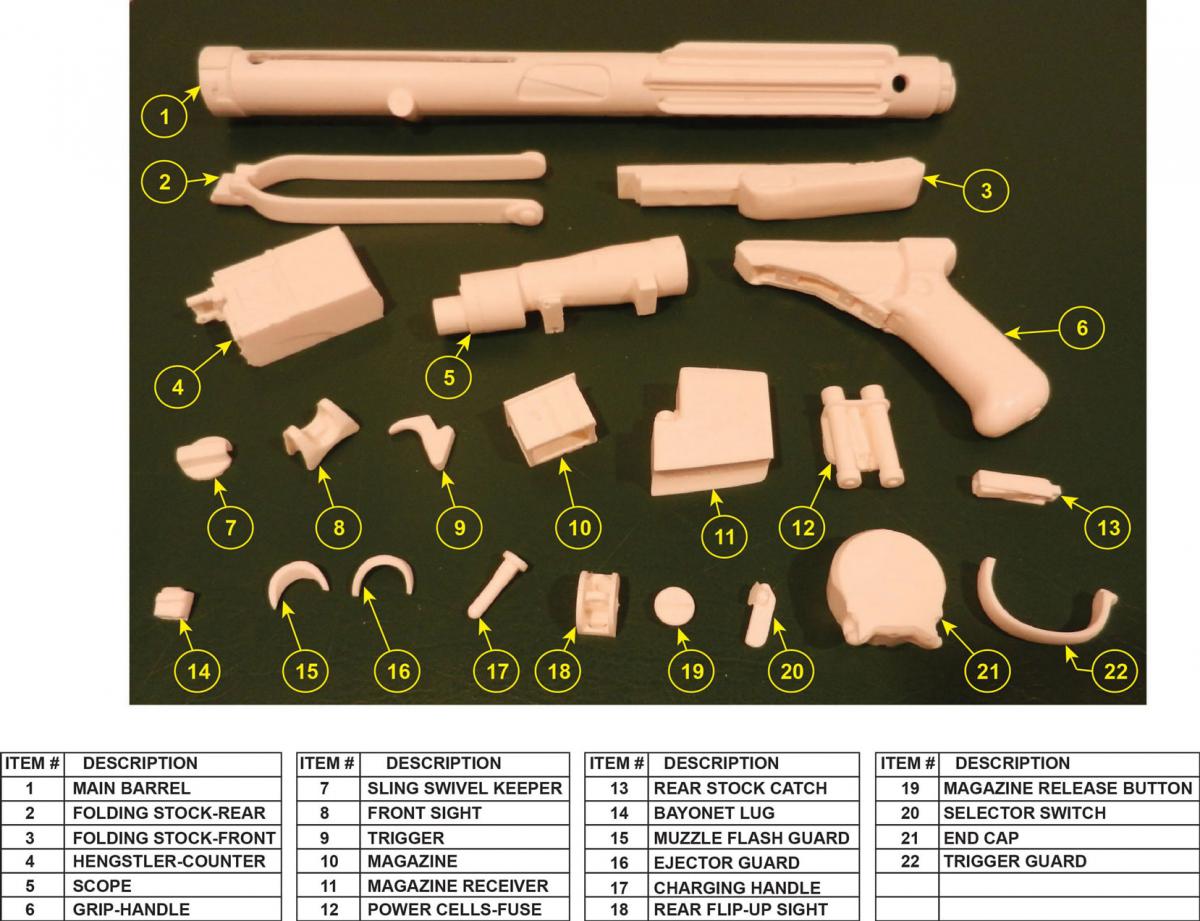

I laid out all the bits and tried making a Bill Of Material and identifying the parts the best I could. Correct me if my naming convention is wrong. I added the YELLOW balloons to identify the parts on my Bill Of Material.post-16388-0-89730900-1338918067.jpg

  • Like 2

Share this post


Link to post
Share on other sites

Looks about right. :)

Share this post


Link to post
Share on other sites

Building the kit is not that difficult... even without assembly instructions :-)

Edited by saber-rider

Share this post


Link to post
Share on other sites

Great job of organizing the parts. I like your attention to detail. Take your time and have some fun! :)

Share this post


Link to post
Share on other sites

Thanks Jonathan. I must give credit to you. I am using your build tread (and several others) as reference.

I was going to mention this in my opening post- The Doopy Doo’s resin kit is surprisingly detailed and accurate. I know they used a real Sterling to make their molds. Having said that. There is only so much detail you can get with resin. I am very pleased with the kit (except for lack of directions). I would definitely buy another one.

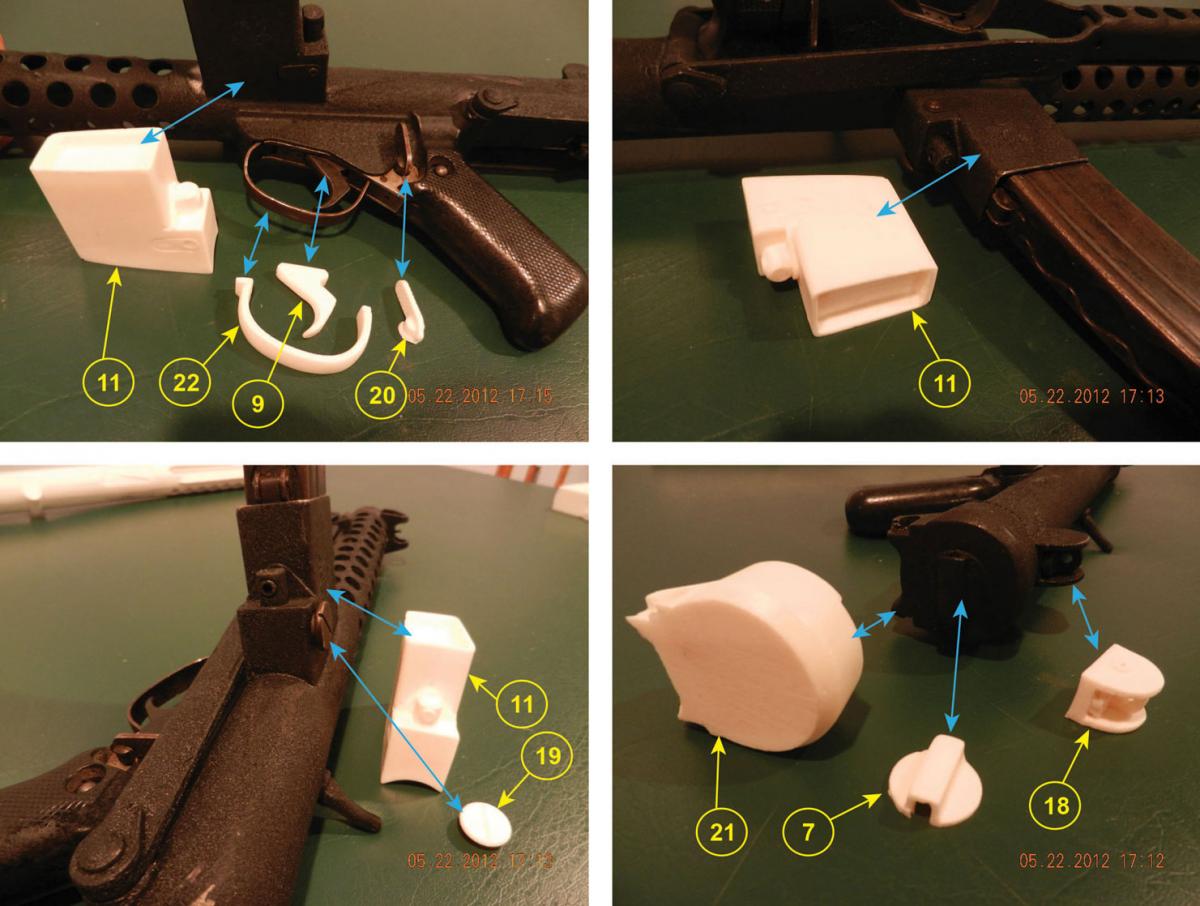

The YELLOW arrows show the part number from my Bill Of Material and the BLUE arrows show the location of the resin part on the real gun.



Share this post


Link to post
Share on other sites

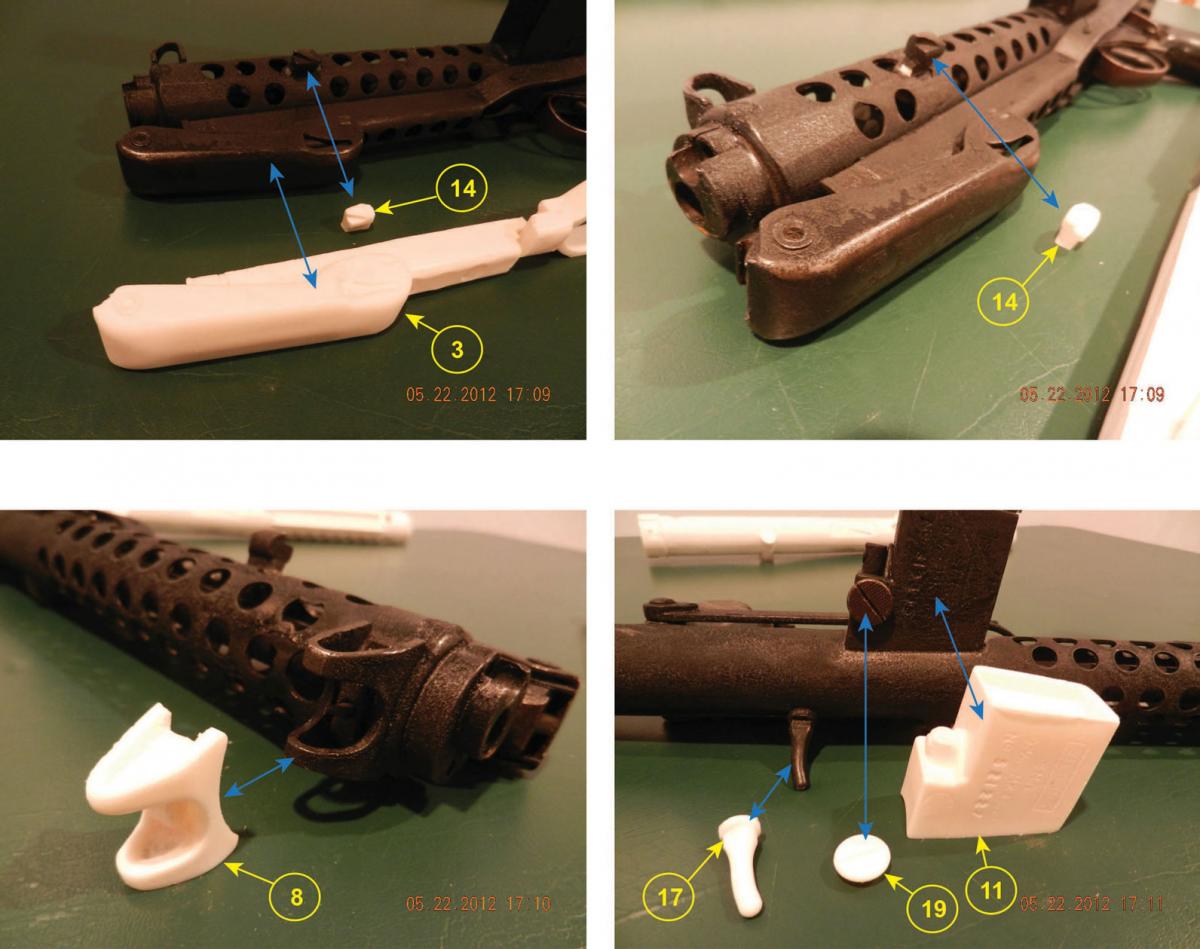

The YELLOW arrows show the part number from my Bill Of Material and the BLUE arrows show the location of the resin part on the real gun.




Share this post


Link to post
Share on other sites

Again, this one will need to be pinned. I think I would spend more time doing those pictures that I did building the kit! :laugh1:

Share this post


Link to post
Share on other sites

I was not crazy with the quality of my last image. So i hope this image is better.










Share this post


Link to post
Share on other sites

MODIFICATIONS TO RESIN PARTS-

Item #21 END CAP

First thing is to pick up a knife and some 120 grit (or finer) sand paper.

Where I have the RED dashed line (pretty much the whole way around) cut or sand down the excess flashing.

Second that molded dimple is a thru hole. Grap a 1/8" drill bit and drill all the way thru (one side-that is)


Share this post


Link to post
Share on other sites

MODIFICATIONS TO RESIN PARTS-



Item #6 GRIP-HANDLE

1- Use a 3/8†drill bit and drill out the molded screw (we call this type of screw a Socket Head Cap Screw)

**NOTE** be careful not to go crazy when drilling the depth. I have a drill press so I was able to set the depth. You want to use the screw you selected to establish your depth. The screw on the Sterling was not recessed. It was almost flush with the top of the dilled hole opening.

2- I decided to use a metric M6 Socket Head Cap Screw. Cut of the head of the screw and pitch out the threaded part (we do not need that). I filed the cut screw head to make sure it was flat (not shown in images).

3- Sand down the edge of the drilled out hole you just made in step #1. There should not be a sharp edge. The edge of your drilled hole should be a nice round radius. I used 120 grit sand paper.

4- I used two part epoxy and set my screw into the hole


Share this post


Link to post
Share on other sites

MODIFICATIONS TO RESIN PARTS-

Item #19 MAGAZINE RELEASE BUTTON

The resin button is a bit to tall.

Grab your sand paper and sand down the surface I noted to approximately 3/32". ( a little smaller is good too)


Share this post


Link to post
Share on other sites

MODIFICATIONS TO RESIN PARTS-

Item #10 MAGAZINE



1. DO NOT fill in the dimple on the magazine like I was going to. I thought this was a flaw in the resin. It is a real feature on the Sterling magazine.

2. Drill a 7/32" hole. It is about 7/16" from both edges. (center to the hole that is)

3. I mixed up a little J-B Weld into a ball and pushed it from the inside of the magazine towards the outside. It made a nice magazine floor plate release button.

4. I tried my best to use my dremel tool to etch in the word "OFF' and the arrow. (not for people with shakey hands)





Share this post


Link to post
Share on other sites

Going nuts... no.

I am already crazy. :laugh1:

Crazy waiting for my armor to show up.

Back to my padded room.

Share this post


Link to post
Share on other sites

MODIFICATIONS TO RESIN PARTS-

Item #1 MAIN BARREL (lower vent hole)

Flip the main barrel upside down so the trigger and grip side is facing straight up.

The Doopy Doo’s comes with one of the lower vent holes pre-drilled out. (the one closer to the trigger)

In addition to that drilled out hole there are 9 more molded holes that are only depressed a little to give the impression of vent holes.

For my build I am only drilling out the next hole next to the pre-drilled hole.

The other holes are almost totally covered by the folding stock. It’s your option to drill them out or let them as is.

**NOTE** the molded hole all the way at the end near the muzzle with the extra square bit on it is for the folding stock to clip into. On my build I am going to use this hole to mount the folding stock so I do not want to drill it out.

Grab your drill and a 7/16†drill bit and drill out the hole.


Share this post


Link to post
Share on other sites

MODIFICATIONS TO RESIN PARTS-

Item #1 MAIN BARREL (muzzle)

I have seen this on many people’s builds. Everyone has done a great job. It’s a great simple modification that goes a long way. MY 2 cents.

The 2 blobs of resin on either side of the main barrel are supposed to be socket head cap screws. The resin did not do to great of a job replicating this detail. It’s an easy fix.

You may need to flatten the blobs or punch a starting or pilot hole so you can drill without having your drill bit wander off it’s mark.

1. Use a 3/8†drill bit and drill out the 2 blobs to about a depth of 7/32†to 1/4" (depends on the screws you are using)

2. Use the same 3/8†drill bit and drill out the main barrel.

3. Take two 1/4-20 (or 1/4-28) Socket Head cap Screws. Cut of the screw heads an pitch the threads.

4. Glue the screw heads into your newly drilled holes on either side of the barrel.

Looks better than a blob of resin.


Share this post


Link to post
Share on other sites

MODIFICATIONS TO RESIN PARTS-

Item #8 FRONT SIGHT

The resin Front sight needed some work.

I used my Dremel tool with a cutting bit and 2 or 3 other Dremel bits to do all the cutting.

This is all optional. Do as much or as little as you like.

1. Cut out the sides of the sight. (2 places)

2. Cut out the small vertical rectangle on the bottom of the sight. I used a 1/16†wide flat nose Dremel bit. You only need to go in to a depth of 1/16†to 1/8â€. (2 places)

3. Drill in a 3/64†hole as shown in the DETAIL drawing. Go to approximate depth of 3/32â€. (2 places)

4. On the top of the sight. Drill a 3/32†hole all the way thru the sight. This hole is for our front sight blade (in my case a roofing nail.)

5. I looked around my garage and came across a box of roofing nails. They were about the right size I thought. I cut off the pointy end. I used a pair of tin snips and cut down the head to the square shape you see in the picture. I used my Dremel and some hand files to file the roofing nail down to the shape of the front blade sight.

6. Not shown ( I deleted the photo) I cut a shallow pocket on the underside of the resin front sight so my roofing nail head would be recessed and be out of the way when I glued it to the main barrel.

7. The front sight blade sticks up about 3/16â€. See the detail drawing.

8. Push roofing nail into 3/32†hole and glue.






Share this post


Link to post
Share on other sites

MODIFICATIONS TO RESIN PARTS-

Item #1 MAIN BARREL (lower vent hole)

Flip the main barrel upside down so the trigger and grip side is facing straight up.

The Doopy Doo’s comes with one of the lower vent holes pre-drilled out. (the one closer to the trigger)

In addition to that drilled out hole there are 9 more molded holes that are only depressed a little to give the impression of vent holes.

For my build I am only drilling out the next hole next to the pre-drilled hole.

The other holes are almost totally covered by the folding stock. It’s your option to drill them out or let them as is.

**NOTE** the molded hole all the way at the end near the muzzle with the extra square bit on it is for the folding stock to clip into. On my build I am going to use this hole to mount the folding stock so I do not want to drill it out.

Grab your drill and a 7/16†drill bit and drill out the hole.




Would drilling out all the muzzle holes make it look more realistic, or do the "covering fins" really make drilling out the holes not that much of a difference visually?

Share this post


Link to post
Share on other sites

YES you are correct. ALL the optional holes I show are open in the real Sterling.

I opted to not drill them out. This is only my opinion, and a deviation from the extra details I am doing on my build.



Give me a day and I will take a photo of the blaster with the folding stock installed. My opinion is you do not see these holes.

"I think" if you looked at the blaster from a narrow angle and were really close to it you might see a bit of these holes.



Why did I drill out the next hole in line on the Doopys? I plan on using that hole to aide in mounting my scope rail. ( I have not created the build images for that step yet. Standby) ;)

Share this post


Link to post
Share on other sites

OK so on my planet we have very short days compared to Earth. :D

I was able to take 2 photos of my build with the folding stock mounted.

I also double checked my Sterling and same deal. You cannot see the bottom holes with the folding stock folded.

The Dooppys resin barrel is extra thick. So you loose a lot of detail. Youl would actually see the barrel inside the heat sheild or guard. The walls of the heat sheild or guard on the Sterling are thin. Like 1/6" plus or minus 1/32" or so.

I was considering making a barrel for inside my Doopy's build, but opted not to. Maybe on the next build.

Hope this helps answer your question.

Please ask more questions.



Share this post


Link to post
Share on other sites

OK so on my planet we have very short days compared to Earth. :D

I was able to take 2 photos of my build with the folding stock mounted.

I also double checked my Sterling and same deal. You cannot see the bottom holes with the folding stock folded.

The Dooppys resin barrel is extra thick. So you loose a lot of detail. Youl would actually see the barrel inside the heat sheild or guard. The walls of the heat sheild or guard on the Sterling are thin. Like 1/6" plus or minus 1/32" or so.

I was considering making a barrel for inside my Doopy's build, but opted not to. Maybe on the next build.

Hope this helps answer your question.

Please ask more questions.





Thanks for your input! Your build is looking very good!
