Morgi's ANH Stunt Build (first build)


Morgi
 Share

Recommended Posts

Hello and welcome to this build thread!



Since I've already mostly assembled my RS kit, this thread probably won't get too long, but as it is my first build I will appreciate any advice that you can give me -- even if that advice consists of "take this entire thing and now rebuild it" (which I don't think will happen, but who knows).



One thing to keep in mind when giving me tips, is that I'm building this on the floor of my childhood bedroom, which A) isn't ideal and B] probably tells you that I don't have access to a dremel or similar advanced tools. (scissors might be more work, but I've managed so far)



My BBB day was around the end of May (actually, there were three boxes, the last of which arrived at the end of June) and I've been using YouTube tutorials from Richie Stormtrooper and RS Propmasters, as well as several posts on this site as guidelines for my build.



Since I build most things already, my plan was to just share my current progress with you and hope for feedback.



The armor



As I mentioned, the armor build is mostly completed, but I still want to re-work several things (smaller return edges, screws + paint and get rid of some of the glue). For now I'm using the original strapping system, but I was planning on changing that once I get around to ordering some press studs (is that the right name? I'm German and the technical terms are easily mixed up)



Here are some pictures:



(I apologise for the bad quality)



http://imgur.com/a/XfIPw2d



http://imgur.com/a/xJAYtJQ



http://imgur.com/a/RgjmssE



http://imgur.com/a/AwAQwKK



So much for the Torso (minus ammo belt). As I said, it's not completely done yet, but it's mostly done.



Then there's the arms:



http://imgur.com/iH6fUze



http://imgur.com/a/Zjkpi8o



I'm very happy with those.



I've also got the thighs done:



http://imgur.com/a/AgZDNeY



http://imgur.com/a/vBF52tJ



They still need that small ABS piece to cover the gap in the back.



The shins are where I've still got a bit of a problem, because I can't get them to close in the back the way I want them to, nor can I get the knee plate to align right. Any help is appreciated!



http://imgur.com/a/EXuR50R



http://imgur.com/a/mMYE1fv



I've heard that using velcro in the back works, but I fear that there would be too much pressure on the velcro to hold it closed.



http://imgur.com/a/Hdhdasu



I'm sure you can see my problem here. I can't get it to align right. Therefore I was thinking about taking away the millimetre of return edge that I have at the bottom, so that there would be more plastic that I can glue together... What do you think?



I won't share a picture of the ammo belt for now, because I'm still waiting on the holster.



The last piece of body armor left is therefore the thermal detonator:



http://imgur.com/a/Tu81eeY



I'm currently working on the helmet:



http://imgur.com/a/q1AC5mk



http://imgur.com/a/ZLg3178



Please just ignore the mess in the background-



As you can see I've trimmed them down and was planning on putting them together later today.



Please let me know what you think and what I need to work on, as well as any ideas for the shins.



If you require any other pictures, please let me know! (I hope these pictures will show up, I'm new to imgur)



Thank you for reading all of this!

  • Like 2
Link to comment
Share on other sites

Welcome, if you use the "direct link" option with the image tags ie: .jpg, .jpeg, .png you will find your images will show in the thread. How to for adding images










Looks like you could take a touch more out of the teeth area, a little top and bottom, you can just see some ridge before the gums.




Some of my favorite go to's for helmet assembly:

https://www.whitearmor.net/forum/topic/14806-how-to-assembling-ata-abs-helmet-1/



Also for ear fitting



https://www.whitearmor.net/forum/topic/29238-my-helmet-ear-tutorial/



https://www.whitearmor.net/forum/topic/41250-ear-trimming-made-easy/



Brow height



http://i5.photobucket.com/albums/y200/ukswrath1/DO/Screen%20Reference/gallery_14191_25_57708.jpg



Teeth




Angle of ears



ywGgtK7.jpg?1



And if you need more references there is our gallery area or Star Wars Helmets



If you have any scrap ABS you could make some ABS paste to fill the openings in the bottom of the thigh ridges, also add some white paint to the thigh ammo strip rivets.




Front views

                                  mG49Nzc.jpg?1  E5L7eXO.jpg?1



                                                                                                         Back views

                      BEY3WIy.jpg?1  RlW6Q3x.jpg?1



Looks like the sniper plate could use a little work, many of us use E6000 glue as it is very forgiving but also very strong, minimum drying time is 24 hours, but I normally leave a few days for anything which is under strain. A lot of clamps, tape and magnets can help keep it in place while drying. Some references:




Here was my RS sniper plate attachment ;)




   Q5LXorf.png?1   SPKijxH.png?2   TQSUjK8.jpg?1  YSGgsvY.png?1





Really depends how your back shins are closing, make sure you are wearing boots as that will make a difference, you may need to tighten the hook elastic or even do a hot water bah to help both sides to meet and lay flatter






 JcZR9SB.jpg?1  A6gr4vO.jpg?1  cfd32dS.jpg?2



Be good to see some images with your wearing so we can give you some more feedback, especially for you snins.



Looking forward to seeing the progress.

  • Like 4
Link to comment
Share on other sites

vor 14 Stunden schrieb gmrhodes13:

Welcome, if you use the "direct link" option with the image tags ie: .jpg, .jpeg, .png you will find your images will show in the thread. How to for adding images










Looks like you could take a touch more out of the teeth area, a little top and bottom, you can just see some ridge before the gums.




Some of my favorite go to's for helmet assembly:

https://www.whitearmor.net/forum/topic/14806-how-to-assembling-ata-abs-helmet-1/



Also for ear fitting



https://www.whitearmor.net/forum/topic/29238-my-helmet-ear-tutorial/



https://www.whitearmor.net/forum/topic/41250-ear-trimming-made-easy/



Brow height



http://i5.photobucket.com/albums/y200/ukswrath1/DO/Screen%20Reference/gallery_14191_25_57708.jpg



Teeth




Angle of ears



ywGgtK7.jpg?1



And if you need more references there is our gallery area or Star Wars Helmets



If you have any scrap ABS you could make some ABS paste to fill the openings in the bottom of the thigh ridges, also add some white paint to the thigh ammo strip rivets.




Front views

                                  mG49Nzc.jpg?1  E5L7eXO.jpg?1



                                                                                                         Back views

                      BEY3WIy.jpg?1  RlW6Q3x.jpg?1



Looks like the sniper plate could use a little work, many of us use E6000 glue as it is very forgiving but also very strong, minimum drying time is 24 hours, but I normally leave a few days for anything which is under strain. A lot of clamps, tape and magnets can help keep it in place while drying. Some references:




Here was my RS sniper plate attachment ;)




   Q5LXorf.png?1   SPKijxH.png?2   TQSUjK8.jpg?1  YSGgsvY.png?1





Really depends how your back shins are closing, make sure you are wearing boots as that will make a difference, you may need to tighten the hook elastic or even do a hot water bah to help both sides to meet and lay flatter






 JcZR9SB.jpg?1  A6gr4vO.jpg?1  cfd32dS.jpg?2



Be good to see some images with your wearing so we can give you some more feedback, especially for you snins.



Looking forward to seeing the progress.

Oh wow, that's a lot of info, thank you so much!



I'll keep the trick for the images in mind, thank you for sharing that!



I'll try to take a bit more out from the teeth...



ABS paste? I'm gonna have to look that up, but that does sound good. And, yeah, someday I'll convince myself to finally open the white paint that's waiting for me ;)



Okay, I'll get the sniper plate off, gather my glue, clamps, magnets and tape and then put the entire thing together again before putting it into the garage for some time. I hope that will work out!



I hadn't heard of a hot water bath before, I'll make sure to keep that in mind, that sounds like a good idea.



I'll get some pictures of me wearing it done once the temperature has cooled down enough that I can bear the thought of wearing the undersuit...



Again, thank you so much for your advice, this was very helpful!

  • Like 2
Link to comment
Share on other sites

Am 11.7.2021 um 23:22 schrieb gmrhodes13:

Looks like you could take a touch more out of the teeth area, a little top and bottom, you can just see some ridge before the gums.

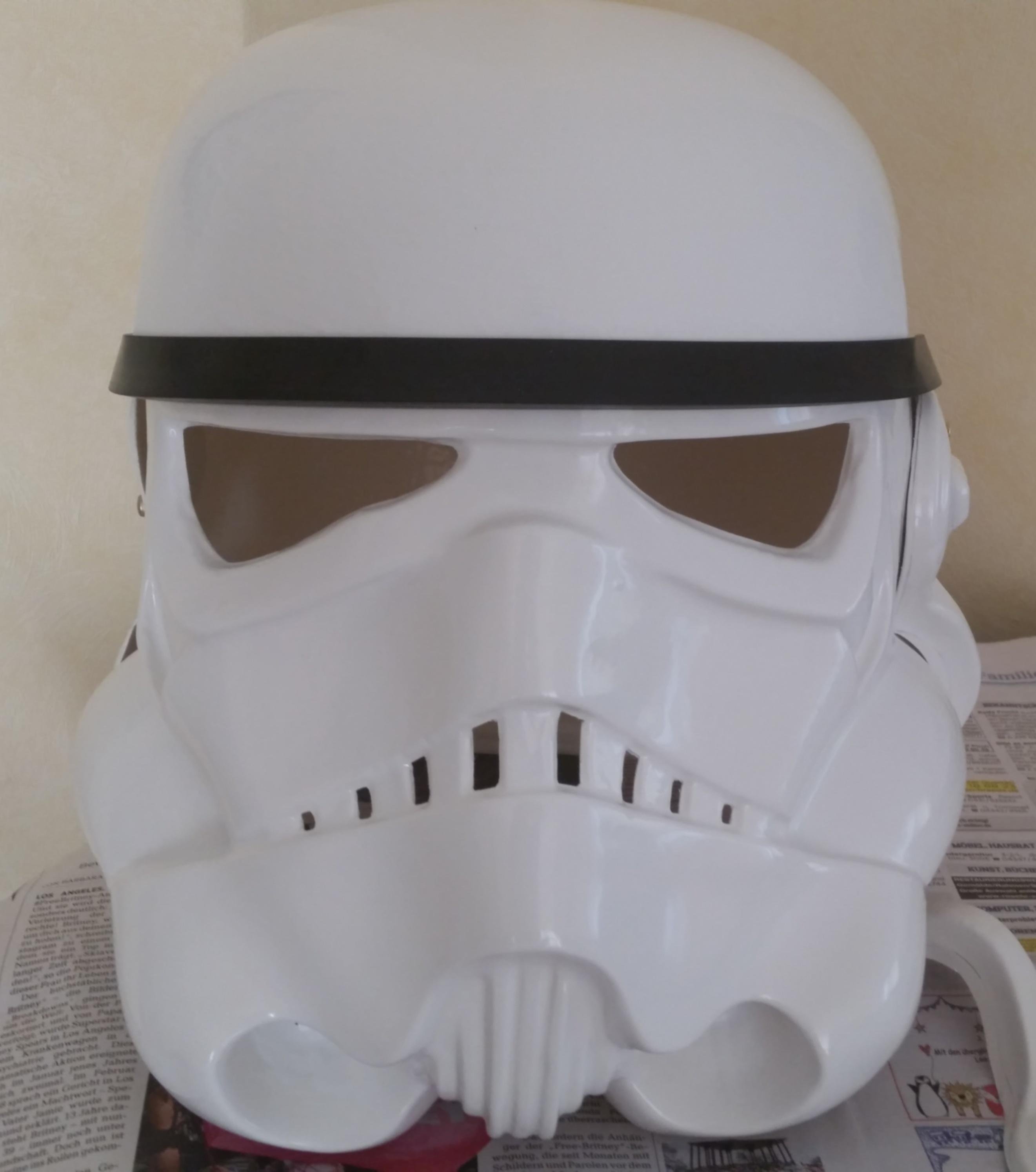

I finally got around to building a bit more of my helmet and reworked the teeth a bit:






I also assembled front and back+cap and attached the left ear, although I'm not 100% happy with the fit (it looked better before I put the screws on).



Are these kinds of gaps okay, or should I rework them a bit more?









I would love to know whether I need to rework anything, before I repeat the mistake on the right side.



In other news, I've re-glued the sniper plate and hope that I'll get to see a more satisfying result tomorrow, compared to the look before.

Link to comment
Share on other sites

Looking much better, nice work.



Screen helmets had way bigger gaps so you are fine as you are, some go a little further for the no gap look but it's not a requirement.

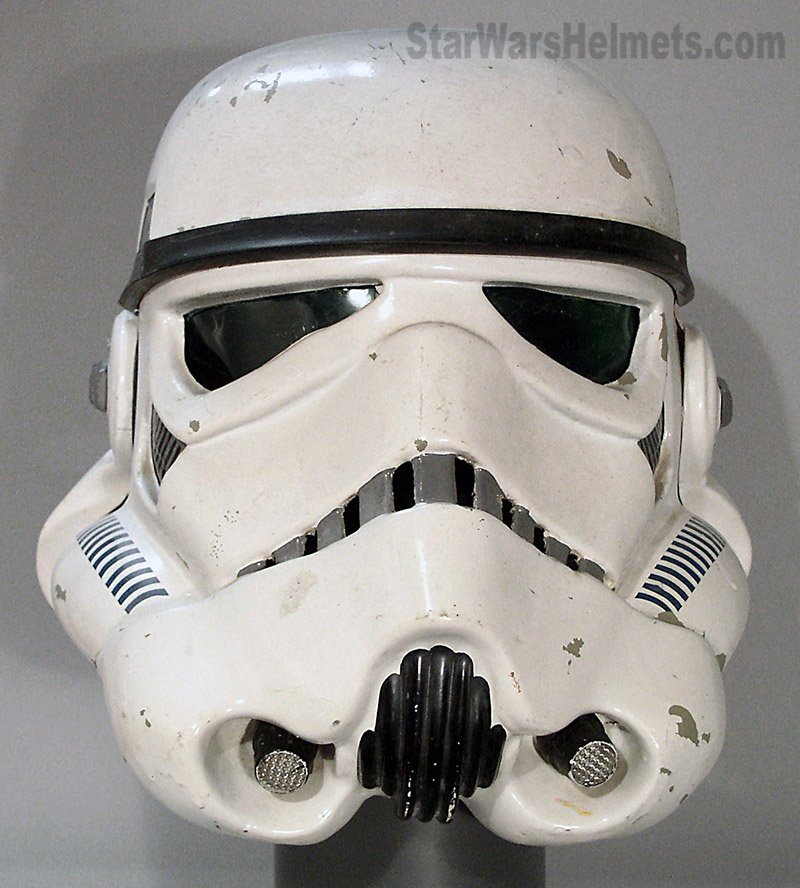

LFL_Storm_Stunt01.thumb.jpg.67971b47b33143833587509093e61473.jpgDaveMANH08.jpg.ff2d41e3be8f622ab2fae5250b0d57d3.jpgDaveMANH06.jpg.64f62513c32e87bd67a6433a6f2a0b5b.jpg





  • Like 1
Link to comment
Share on other sites

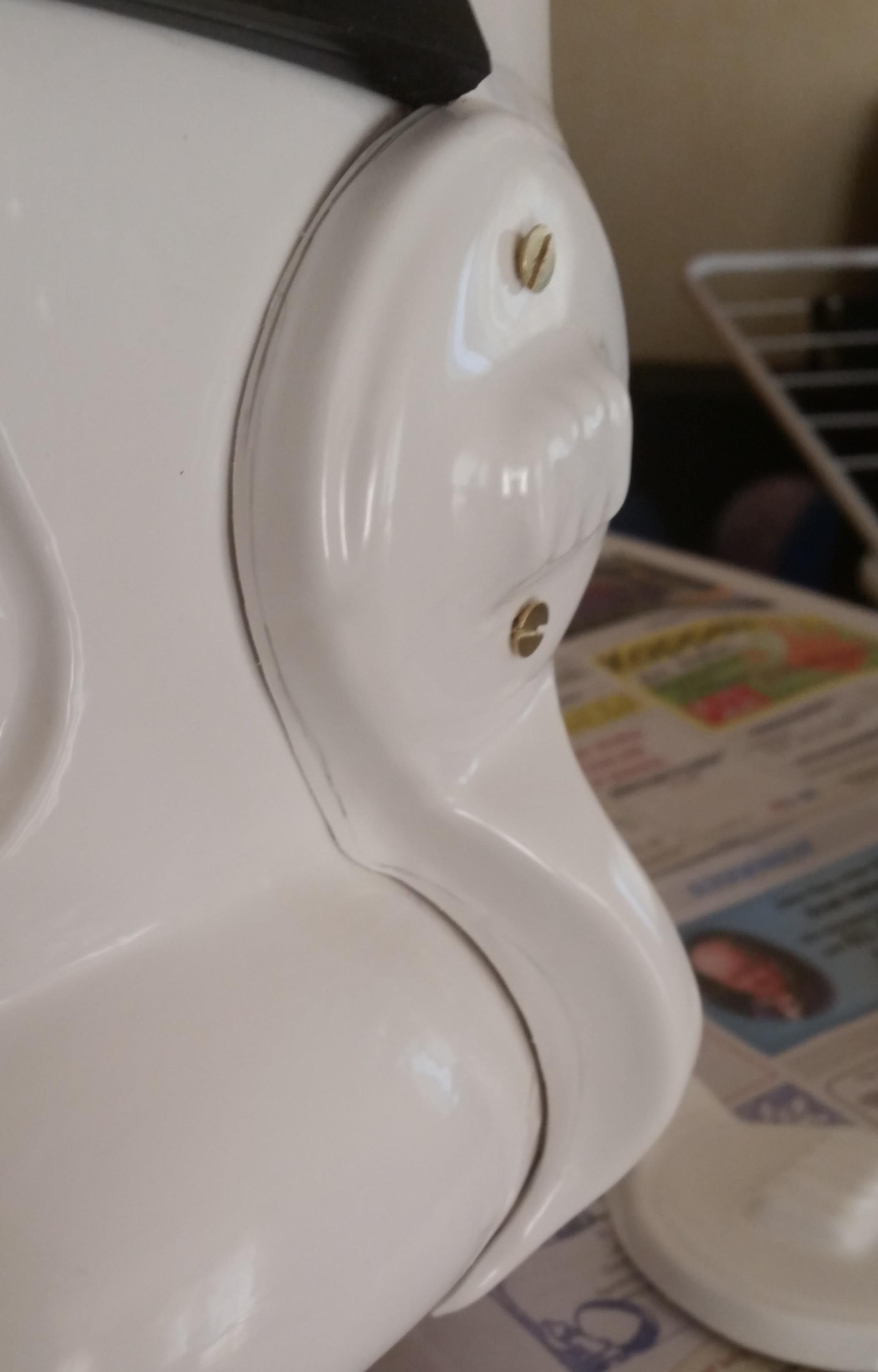

Got the second ear done after hours of adjustment... Again, those gaps looked different once I screwed it on.






Also, is it just me, or is the right ear (left in the picture) thinner than the other? I hope that isn't a problem, even when it comes to reaching EI or Centurion....






As you can spot the end of the back in the gap, I was wondering, whether there's anything that I could use to fill the gap.






And one picture of the back :D



I've also reliefed my sniper plate of the clamps and magnets, and I got to say that it looks way better now, so thank you, gmrhodes13!



(well, aside from the bit of dirt that I have to rub off)






It is a bit bend where the clamps were, but nothing huge. At least nothing that's immediately noticeable.






If everything goes according to plan, I should get some press studs soon to rework part of my strapping and hopefully close the gap between my torso and kidney plate, making it closer to screen-accuracy and Centurion requirements.



Before I do that, I'll probably get the S-trim around the bottom of the helmet done today or tomorrow and maybe the rest of the build itself, so that I'll only have to wait for my tube stripes template to arrive before I can start painting the helmet.

  • Like 3
Link to comment
Share on other sites

Nice work, you could remove some material from the inside curve of the sniper plate:



"For a more screen accurate look, it is suggested that the top of the rear ridge of the sniper plate be aligned with the top ridge of the calf. Also note that the sides are angled rather than curved."



 Q5LXorf.png?1   SPKijxH.png?2   TQSUjK8.jpg?1  YSGgsvY.png?1










  • Like 3
Link to comment
Share on other sites

Posted (edited)
vor 14 Stunden schrieb gmrhodes13:

Nice work, you could remove some material from the inside curve of the sniper plate:



"For a more screen accurate look, it is suggested that the top of the rear ridge of the sniper plate be aligned with the top ridge of the calf. Also note that the sides are angled rather than curved."

Thanks for letting me know!



Here's the updated sniper plate:

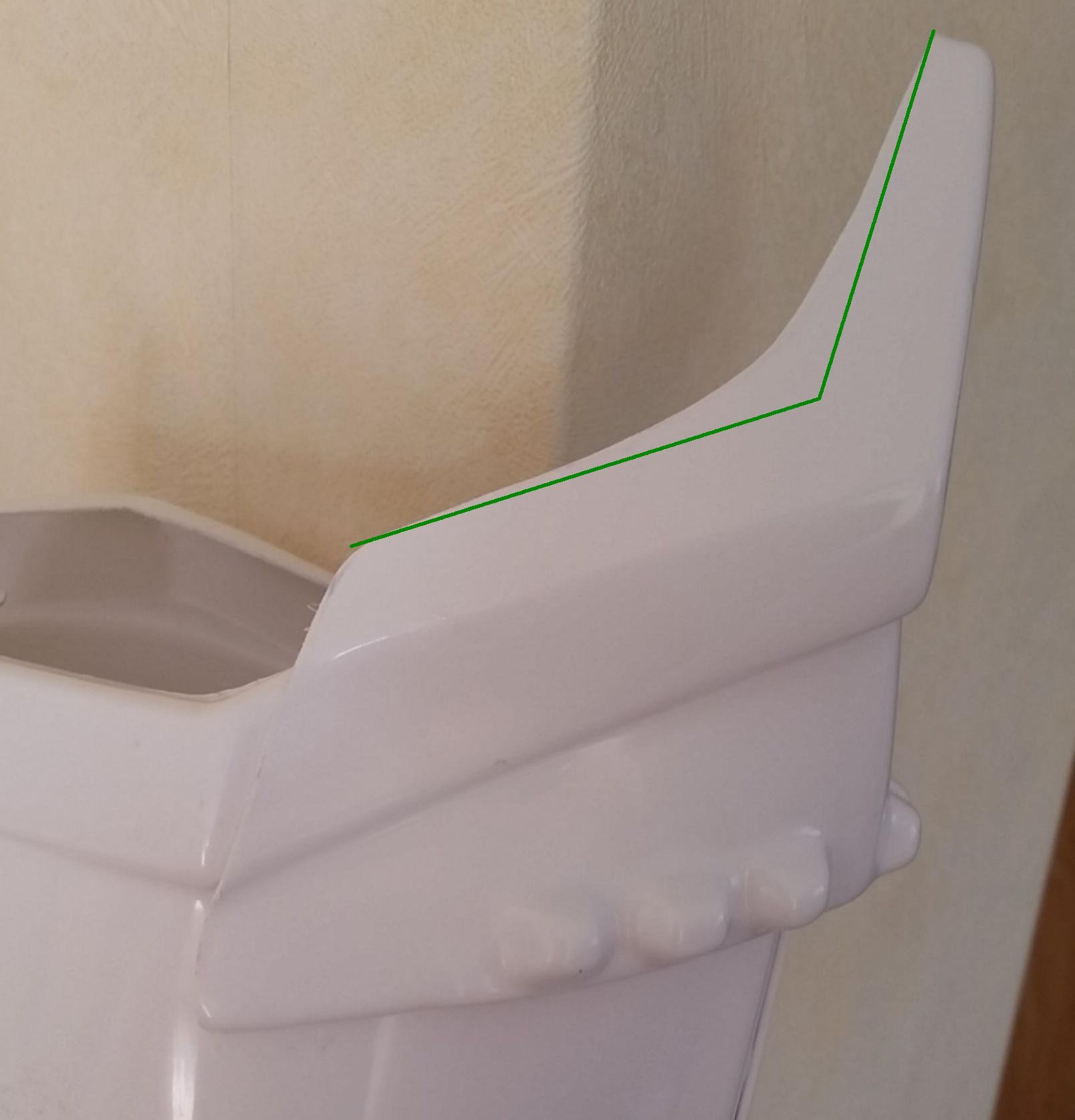

This is cut the way you marked the plastic, however, I couldn't help but notice how the reference pictures seemed to suggest a cut more like the one that I marked in with a pencil. Should I leave it like this, or should I trim down to the pencil line?
