My First ATA Helmet Build -WIP[*ATA]

[dinkyfish]

Just got my ATA kit and thought I'd post my progress here, as a record for myself and also for any constructive comments from more experienced builders. I'm planning on making a ANH stunt helmet into a TK version. I'll be aiming to incorporate a lot of the Imperfections of the originals into the one helmet. eg...

-a mid placed wonky brown, with one end a bit short of the front trap

-hand painted details, with airbrushed tube stripes



Just started trimming today, and I've erred on the side of caution and cut well away from the lines, just in case I overshoot. Is this too much to leave or should I trim it back a bit more? I'm not quite sure how the neck trim will sit so I thought I'd start here and trim down until I have the right look.





Lines done for the back piece.







Any constructive comments appreciated as this is the first try at a helmet for me!

Edited April 24, 2012 by dinkyfish

[TK bondservnt[501st]]

for the faceplate bottom leave some of the extra material on and glue the rubber over that.



for the cap and back trim along the faint line for cutting.

Edited April 24, 2012 by TK Bondservnt 2392

[dinkyfish]

Man, I think I've taken off too much from under the front trap! Is this too much off? or can I salvage by placing the brow a little lower?



this is how the other side looks

[anphrax[TK]]

Doesn't look like you screwed up to me. Try putting the trim on there and see how it looks.

[Jeepfrog[TK]]

I know my bucket is not ATA but here is mine as you can see the brow strip covers the trap.



-----------------

Edited May 23, 2021 by gmrhodes13
link not working, removed gmrhodes13 2021

[dinkyfish]

ok, thanks! should I go ahead and trim the brow area into a nice straight edge, or should I leave that till final fitting? Also, the rubber brow seems to be getting quite worn with handling, any tips on preventing this, or is it just a case of handling it with more care?

[dinkyfish]

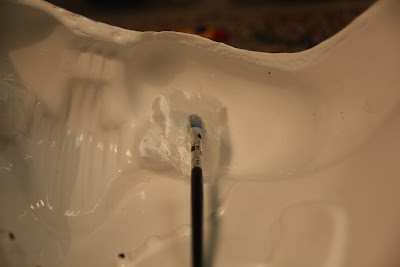

fiberglassed the inside of the mictips





and this area, to prevent tearing.



still wonky, but I think I'll leave the final trim to later. What do people think?



How deep should the eye sockets be?

[SCTrooper[TK]]

Here is a handy reference, check this out

http://www.whitearmor.net/forum/index.php?showtopic=16277

[LadyInWhite[TK]]

Trim out the eye flashing a little more. Actually a lot more. I made that mistake at first... afraid to cut too much... but not all the way, you need some "socket" depth showing. Maybe 3/8-1/2 inch? (Guys feel free to slap me if I'm way off.)



First of all, you want as much visibility as possible. Second, if you can make it all curve nicely on an even (curved) plane, not too bumpy, your lenses will lie flatter.

[BananoPower22[TK]]

you can also use http://starwarshelmets.com/ as a referene too

[dinkyfish]

thanks for all the advice! What can I use on the brow trim to smooth it out a bit. it's looking a little rough and worn. Is there something I can rub into it to blacken it up a bit? Perhaps some shoe polish? Is it worth getting a new brow? are the trooperbay ones better?

[troopermaster]

Get your brow trim fitted and fit the face plate before you trim anymore from the forehead. Don't worry if the trim looks wonky - wonky is good!



A quick wipe with white spirit or tupentine will bring that trim back to life.



Trim out the eyes a lot more. Just leave 1/4" flashing and see how that looks, then trim more if you want. The bigger you make the eyes look, the better.

[dinkyfish]



wonky brow, which I'm thinking of keeping.



now I hope the ears will cover the flap!



question: how much gap should there be between the brow and the faceplate?

[dinkyfish]

Is this gap too big, Do I need to move the face plate forward, or will the ears tighten up the gap when installed?

[LadyInWhite[TK]]

question: how much gap should there be between the brow and the faceplate?



Personal preference. I tried to get about 1/4" white to show but once I screwed in the screw holes it kind of moved forward and was level with the top of the eye sockets. But if you look at reference photos from the films, the gap is all over the place.



I like the wonky trim, it has a kind of a "one raised eyebrow" look.

[dinkyfish]

I'm actually referring to the gap between the trim and the face plate, ie how tight the brow should be on the forehead.



in the photo below, about 2mm gap just at the end of the brow trim, in the area above where the ears would go. Sorry bout the confusion!





Is this gap too big, Do I need to move the face plate forward, or will the ears tighten up the gap when installed?

[SCTrooper[TK]]

Use the brow trim to gage how close it should be. You don't want it super tight, just enough. The dome doesn't match the face plate perfectly, so don't try to force it flat. Take you time with the ear's, look at some reference pic's. You could trim the eyes out alittle more and the teeth too. take a look at starwarshelmets.com there are lot of pic's on that site. Have fun!

[dinkyfish]

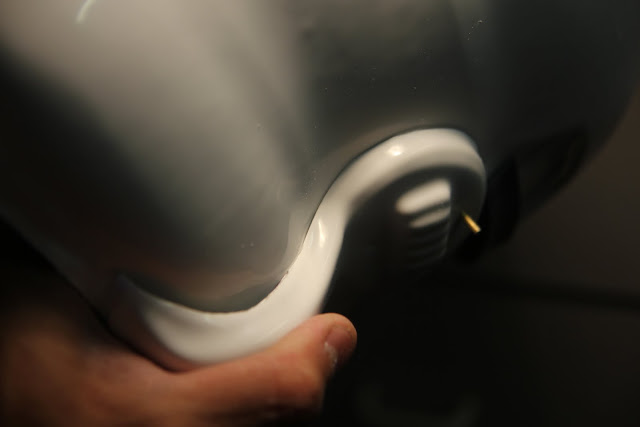

I'm having a very hard time trimming the ears! This is not easy! Thought I over trimmed the back of the right ear....

Can get it to sit flush... like this









but the front won't sit flush then.... and similarly if the front sits flush the back has a wide gap....





Help! Not sure where to go from here, I'm afraid I'll trim off too much! Does the back look too thin yet?

[SCTrooper[TK]]

Looks like you are almost there.I would leave the back of the ear for now and slowly remove alittle at a time from the front cheek tube area. After you get it closer you can fine tune it

[LadyInWhite[TK]]

Yeah, 99% of photos and views of your bucket will be from the front. Get the front-facing part of the earpiece as close as you can, and don't worry as much about the back of the earpiece.



Some guys use bondo or whatever to seal up the cracks if they're significant. Not saying I recommend this.

[dinkyfish]

thanks guys! fortunately ATA sends 2 sets of ears. Now I know why! I'll keep trimming until I get it right. I noticed the gap in the screen used helmets were quite big anyway.

[dinkyfish]

ok, after a bit more trimming.... here is the back





and here is the front...



thanks for all the help so far.... any further comments would be appreciated!

[SCTrooper[TK]]

Your almost there, just sandpaper is all that is needed. Just a bit more on the front of the ear in the cheek tube area. You don't have to take anymore off of the back.

Edited April 27, 2012 by SCTrooper

[dinkyfish]

Here's some progress.... Trimming left ear now....

still have to do the eyes and frown... but figured I'll tackle the hardest bit first

I am still unsure what colour the vocorder is - satin black or gloss black







[SCTrooper[TK]]

The vocoder is matte black, I could not find it at the hobby shop so I mixed flat black and gloss black. Nice job so far!
