ANH TK build thread


Roundarmor

Recommended Posts

4 hours ago, Roundarmor said:

Honestly it’s a mix of hero and stunt. I don’t have the bubble lenses for the helm but I’m still aiming for level 3 approval

You will find a nice comparison of each version and their differences here



https://drive.google.com/file/d/10tEVteIreh6AHMogW010cuH_Bf8TBfU6/view

  • Like 1
Link to comment
Share on other sites

Just updating my build here. Right arm outer cover strips are now in place on both the bicep and the lower bracer. Glued and painted the abdomen buttons in place. Glued inner cover strips inside shins on both legs. Slow and steady wins the race.


Sent from my iPhone using Tapatalk

  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...

August 2022 update on build.
Working on the legs now. Trim is done
Inside cover strips and outside cover strips also done on uppers. Shins inside cover strips are done. Waiting on lower outers 0e7cd91586d1ec0d4fbb586c80f45c7e.jpg
P


Sent from my iPhone using Tapatalk

Link to comment
Share on other sites

17 minutes ago, Roundarmor said:

Also finished the grenade but still need to paint the screws black. Shoulder plastic straps glued in place.


Sent from my iPhone using Tapatalk



Hi Chris,



Looking at your build thread you  are doing a great work with your armor sir. keep it up.



If I may, it seems like you have enough room in your Biceps and Forearms. To get a more accurate look, you could trim them a little  more . If you used E6000 to glur the cover strips, this could be an easy fix.








You could trim the raised flat area in the front an relocate the cover. I would also suggest to make a test before glue them again. Use painter's tape to join the pieces and make a test, post some photos to receive feedback (this suggestions is also for the Thighs and Shins)



                                                                                                                               Reference images



KWECw3p.jpg     eGhSkrs.jpg



  :salute:









  • Like 2
Link to comment
Share on other sites


Hi Chris,

Looking at your build thread you  are doing a great work with your armor sir. keep it up.

If I may, it seems like you have enough room in your Biceps and Forearms. To get a more accurate look, you could trim them a little  more . If you used E6000 to glur the cover strips, this could be an easy fix.



You could trim the raised flat area in the front an relocate the cover. I would also suggest to make a test before glue them again. Use painter's tape to join the pieces and make a test, post some photos to receive feedback (this suggestions is also for the Thighs and Shins)

                                                                                                                               Reference images

KWECw3p.jpg     eGhSkrs.jpg

  :salute:





My arms are frustrating me to no end. Seriously!!!! The biceps keep wanting to kick out at a 45 degree angle.


Sent from my iPhone using Tapatalk
Link to comment
Share on other sites

4 hours ago, Roundarmor said:


My arms are frustrating me to no end. Seriously!!!! The biceps keep wanting to kick out at a 45 degree angle.

They look a tad large, you could add some foam on the insides of the biceps this should help stop them kicking out sideways. With skinny arms I also have foam in my forearms and thighs.

Link to comment
Share on other sites

They look a tad large, you could add some foam on the insides of the biceps this should help stop them kicking out sideways. With skinny arms I also have foam in my forearms and thighs.

Lol , the armor is on a mannequin at the moment. My arms fit perfectly when I’m wearing the armor so no foam will be needed. I think I need to shorten the strap to the shoulder bells.


Sent from my iPhone using Tapatalk
Link to comment
Share on other sites

4 hours ago, Roundarmor said:

My arms are frustrating me to no end. Seriously!!!! The biceps keep wanting to kick out at a 45 degree angle.

You did state "The biceps keep wanting to kick out at a 45 degree angle" hence why I suggest adding the foam.



4 minutes ago, Roundarmor said:

Lol , the armor is on a mannequin at the moment. My arms fit perfectly when I’m wearing the armor so no foam will be needed. I think I need to shorten the strap to the shoulder bells.

You need to space out all our arm pieces so the gaps are more consistent.



Note your shoulder straps are being pulled outwards sideways to the shoulder bells so you may need to double over the elastic or try a thicker elastic.



  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...

8-28-2022
More progress in the works. Yes I know the ab plate is in the wrong position.
Took pics of my hands inside my lower arms to show there is just no room to make the wrist area smaller. Waiting on split rivets to put the amp pack onto my leg.
Glued the sniper knee in place today sorry no pic yet. Finished the belt today as well as the Chicago screws that attach the leather holster to the beltc3f77768974c5d9fcbdcade85c33ddf6.jpg


Sent from my iPhone using Tapatalk

Link to comment
Share on other sites

Just watch your shoulder straps on the rear, addition of elastic can help them stay in place


AK9w0mr.jpg?1     lbfFArU.jpg?1     FAKhPZ2.jpg?1



You may have to add some side shims as well

L2 and upwards

OPTIONAL Level two certification (if applicable):

  • Any gap between the abdomen and kidney armor is no more than 1/2" (12.5mm) wide.
    • Any shims used to achieve this effect are of a similar material and color as the abdomen and kidney armor. Shims fit flush and seams are allowed.




A few threads which may be of help





Link to comment
Share on other sites

Just a couple of things you may want to address

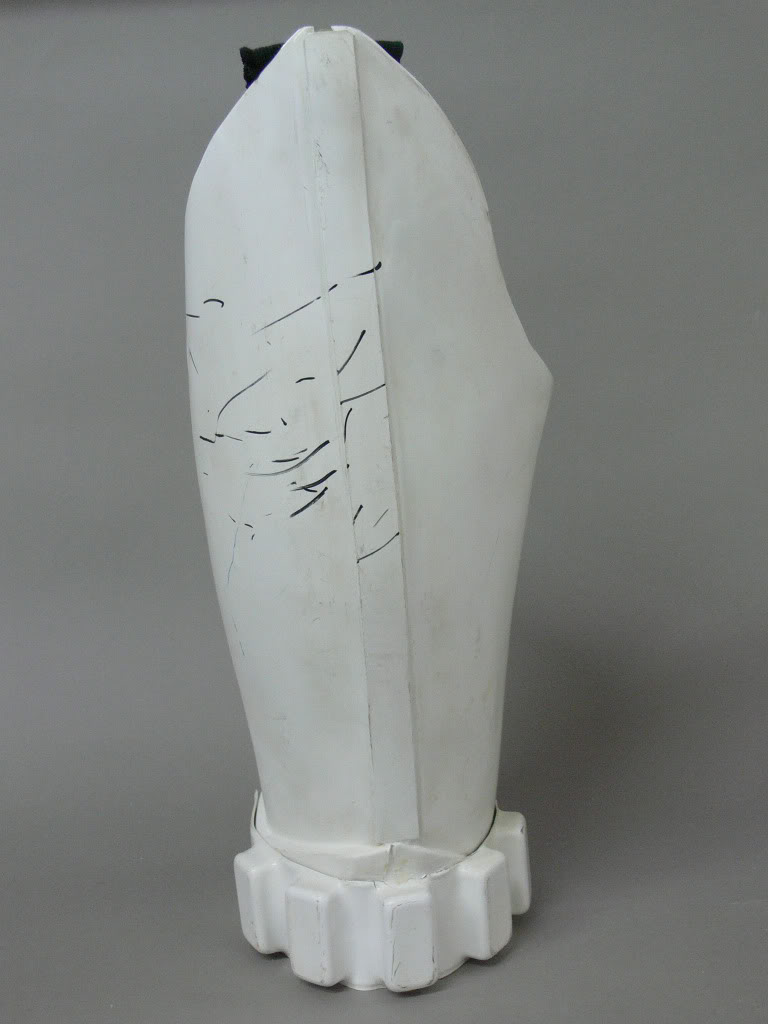

The cut corners of your cover strips are quite large, not sure if you have any material left over as you may want to change them, depending on what your GML says of course and more for higher level approval.



Here are some comparisons

8878856606cc30cc42aacda43e4da2f3.jpg gallery_12157_15_51563.jpg






Also note the top corner of your thigh ammo strip is usually not rounded off



  • Like 1
Link to comment
Share on other sites

  • 4 weeks later...

Build is finally completed
Submitted and approved at level one
Thank you to all who helped me along the way.
As I said on Face Book, there are countless costumes out there for our universe but the 501st was founded on storm troopers and nothing makes me happier than to own , troop , and represent the fighting 501st as a TK!!!f9853e589650ddc31b7c3f6c614657eb.jpg


Sent from my iPhone using Tapatalk

  • Like 1
Link to comment
Share on other sites

Congratulations trooper and welcome to the ranks, you can request higher access here



Link to comment
Share on other sites

4 minutes ago, Roundarmor said:


Having a little trouble with the link but I posted my 501st profile in the thread

I've added the link to your request post ;)

Link to comment
Share on other sites

I've added the link to your request post

You have been with me through my entire build and I just wanted to say thank you.
It meant a lot to me that you took the time to look at every post and helped me along the way. Please understand that troopers do notice what you are doing for them and I for one am very very gratefulf9c32a166c298bc8dece6f573a3ae417.jpg
.


Sent from my iPhone using Tapatalk
  • Like 1
Link to comment
Share on other sites

1 minute ago, Roundarmor said:

You have been with me through my entire build and I just wanted to say thank you.
It meant a lot to me that you took the time to look at every post and helped me along the way. Please understand that troopers do notice what you are doing for them and I for one am very very grateful

Thanks for the kind words and my pleasure, it's just a case of giving back to the community which helped me on my journey :salute:



If you can just help one person then you've made a difference :D
