E11 power cylinder templates wanted

Recommended Posts

Hi everyone,

I am trying to build my own power cylinders for E11 project. I have managed to get most of the other bits and pieces but I am having major :6: problems trying to make the plate/holder/rack or whatever it's called that holds the cylinders and pins.

There used to be a template on the BBC Blaster builders club but they seemed to have disappeared?



Can anyone please help?



your hopefully,



Mark. :peace:

Share this post


Link to post
Share on other sites

I've been having the same problem too..



I have a set of resin ones on their way from a fellow 501st member in the US.



When they get here, I'll get some measurements, and let you know.



Unless someone beats me to it of course....lol.

Share this post


Link to post
Share on other sites
I've been having the same problem too..



I have a set of resin ones on their way from a fellow 501st member in the US.



When they get here, I'll get some measurements, and let you know.



Unless someone beats me to it of course....lol.



I have managed to get some measurements



Cylinders:

Total length: 58mm

Tube length: 48mm

Tube width: 10.5mm

Front cap thickness: 3.5mm

Back cap thickness: 5mm whereas 1mm of it is in a curve

Width of both caps: 11.5mm

Thickness of nut: 1.5mm

Width of nut: 4mm

Length of pins: 18mm

Width of pins: 2.5mm

Length of holder minus height: 32mm

Width of holder: 36mm

heigth of holder: 16mm

Tube braces: 15mm where there is a bend at each 5mm on the sides

Center of tube hole to other center of tube hole: 22mm

Center of pin hole to other center of pin hole: 5mm



The tubes & holder measurements make sense when you look at the photos.



I got the photos from the darksidesithlord.com ( I hope he doesn't mind, it's for a good cause!! ) and he sent me the measurements.

Check out his blaster build it's something else!!!!! Truly spectacular from start to finish.



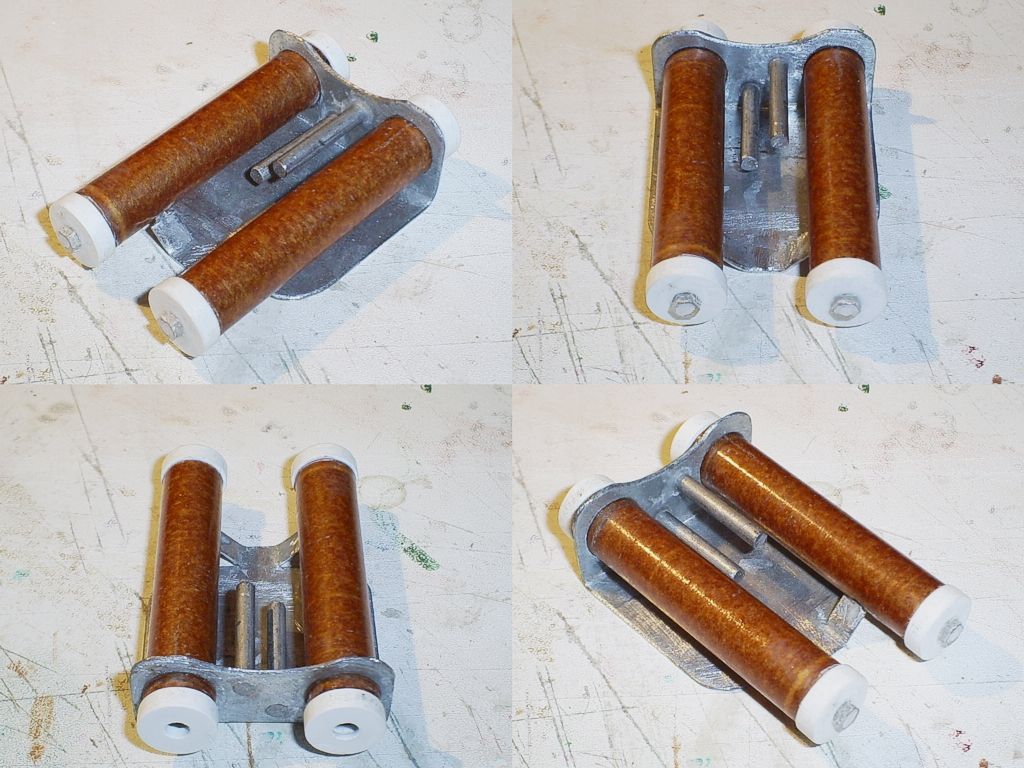

I used some 10.5mm brass tubing for the tubes and a bit of 2.5mm brass rod for the pins , I then bought some screw cover caps from Wickes £1.09 and some epoxy putty metal repair £3.99 and just used the clear inner caps and filled them with the putty and sanded them all down to look right.

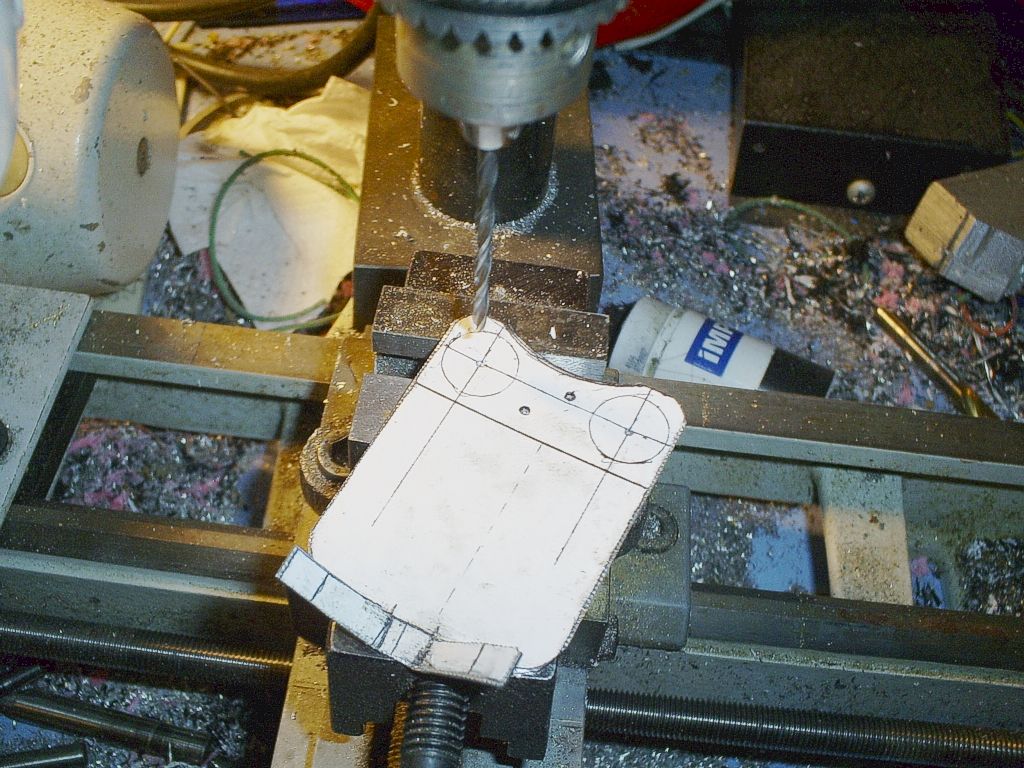

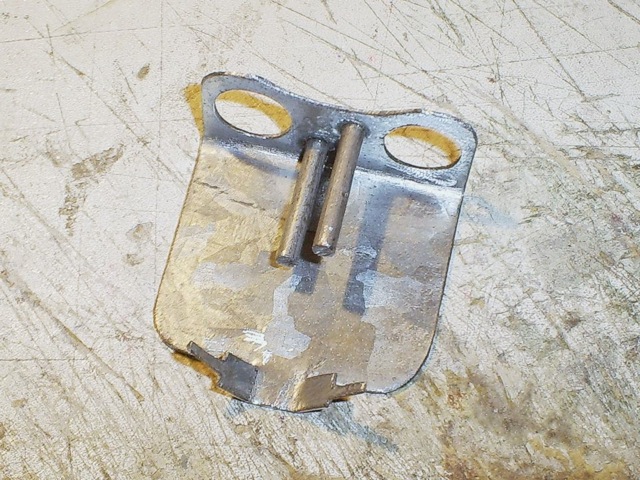

to make the holding plate I bought some 0.6mm sheet steel from B & Q and cut it out with some tin snips and filed it smooth , then bent it in a vice and drilled the relevant holes.

Most of this can be seen on darksidesithlord's great tutorial.



anyway I hope this helps anyone trying to build these cylinders.



Keep building those blasters guys. :salute:



Mark.




Share this post


Link to post
Share on other sites

Those are flippin' awesome. :o I have a pair of resin ones and they're woefully inaccurate. I may have a go at something like this. It'll be my first scratchbuild! :unsure:

Share this post


Link to post
Share on other sites
Thanks,

I thought they might be helpful. They are not too hard to build just a bit fiddly!



:0Lighten:

I don't actually own any metalworking tools, or even a vice, so I tried to improvise a set out of abs and AA batteries. :lol:










Share this post


Link to post
Share on other sites
I don't actually own any metalworking tools, or even a vice, so I tried to improvise a set out of abs and AA batteries. :lol:












Hey , not bad sprayed black they'll look even better! :D

Share this post


Link to post
Share on other sites

Hi guys, thanks to Mark, I got bits sorted out to make my cylinders.

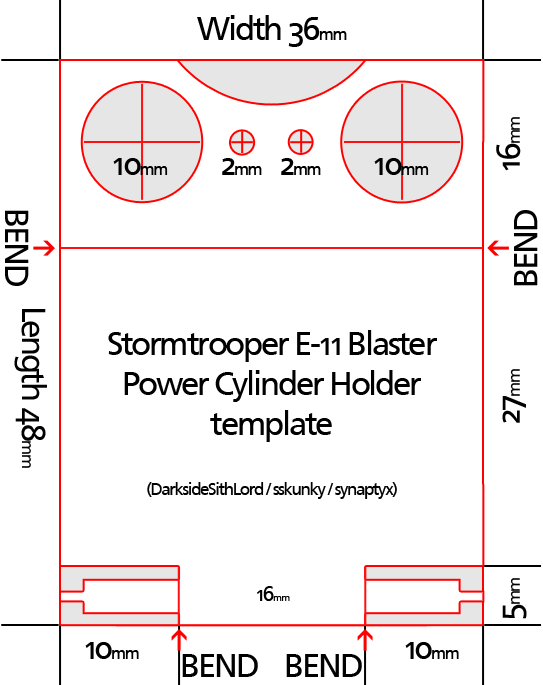

I knocked up this template to make things easier.



The holes are marked 0.5mm smaller so you can sand/file them out to fit your tubes exactly.






Print this at 300dpi and you'll get it at the right size.

Share this post


Link to post
Share on other sites

That's a pretty good template you made there, I'm glad those measurements came of good use then, and cool to see my callsign on it too ^_^ Too bad my next E-11 won't have cylinders on it when there's a template with my callsign on it out now :P

Share this post


Link to post
Share on other sites

Hi there, Jehudah!



Thank you for working all the sizes out, I'm in the middle of making my cylinders. Never attempted a scratch build before, so thanks for helping me get my feet wet too! :D

Share this post


Link to post
Share on other sites

Hehe, where the fudge did you find that name? It's one of my many names anyway, so works. Good luck with the build then, I'm glad I got your feet wet enough to start building some cylinders then :P

Share this post


Link to post
Share on other sites

Is there any screen pictures of the pins you have put on as ive not seen them before :huh:



Im going to get my bracket machined out of solid block ali and cylinders to match :)

Share this post


Link to post
Share on other sites

I've seen a pic or two, but they are actually very difficult to make out. Can't seem to find the pics now. :huh:

Share this post


Link to post
Share on other sites

those cylinders are made by Russ Brown and they are absolutly superb...

as some of you might know i´m a screenaccurate nut and i couldn´t be happier with my cylinders.



i talked to Russ a couple of days ago about a 2nd run.

Russ will offer these cylinders here on the FISD and on the MEPD forum as well very soon.

Stay tuned... ;)

Share this post


Link to post
Share on other sites

Hey sskunky , are you still make these cylinders?

Cause i wait now since 9 month of the russrep ones, and no longer think that i ever will get them,

i'm looking after a other screen accurate source.

Your's looks great .

Share this post


Link to post
Share on other sites

Hi Turrican,

I was never really making them ,

I made a couple, one set for me and another for someone else.

I just got a sheet of thin ali, Some tin snips, a file and cut it out to the template design above and then fabricated some cylinders from some tubing and some plastic screw covers and used a bit of plumbers epoxy putty to make the end caps fit on. Then used some thin rod and cut them to length for the middle pin bits. I simply stuck it all together with superglue. Done!

Share this post


Link to post
Share on other sites

Aha..well that sounds not so hard to do.

I will try it.

Thanks for your reply kunky and for the info sharing . :salute:

Share this post


Link to post
Share on other sites

I also just made mine off that templet, I used some copper tubing from Lowes Home improvement,Lowes has the correct size Home depot doesn't. They have copper caps as well that I cut down and some small nuts and bolts from local hobby store. The holder I made out of some thin sheet metal, tin snips and CA Glue!!

They look pretty good!!

Have fun,

AL



Share this post


Link to post
Share on other sites

Thanks for all your ideas and help! :duim:

Nearly finished mine now.

Only parts which missing now, are the small screw and screw nut.










As i think , maybe not so good as the ones from Russrep but also nearly screen accurate.

And, also a part which can be done selfmade without spend a lot of money. ;)

Share this post


Link to post
Share on other sites
