Hello I started a T21 build, I need a big gun to pack every once in a while. I'm following panda troopers tutorial so not much new, but I thought I'd share a couple of progress photos. And how I did a few things.

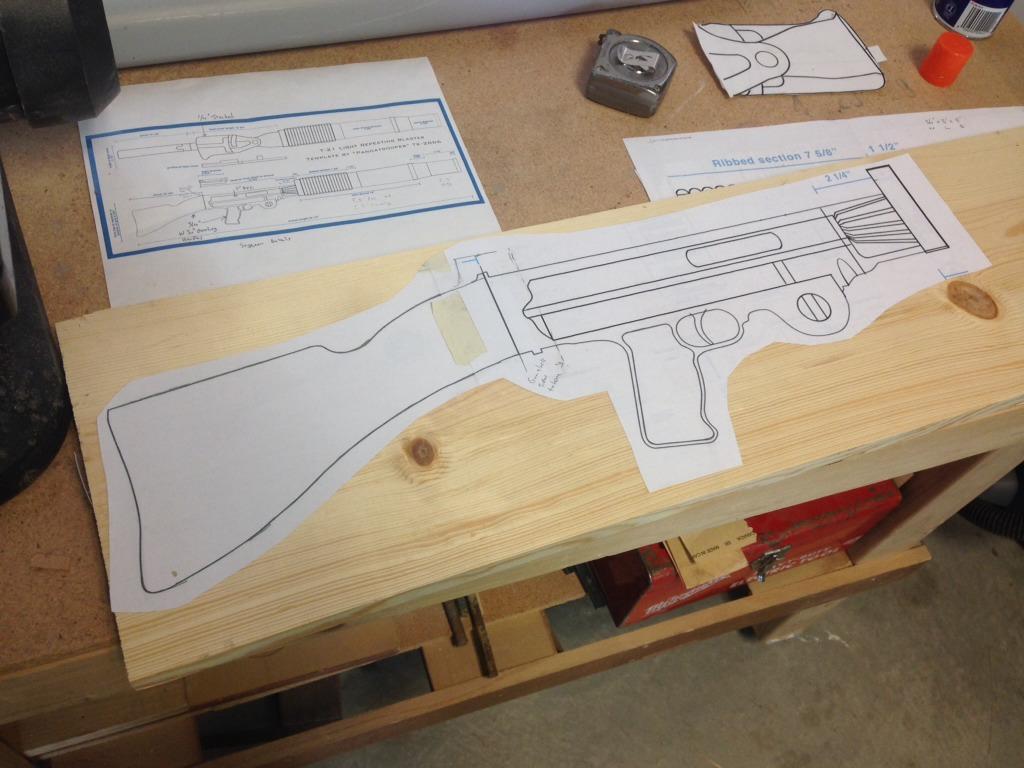

Heres a tip print the template at full scale, spray with a little contact spray and let it dry than stick it on the wood and cut it out, I used my jigsaw to rough cut and then finished it off on the band saw

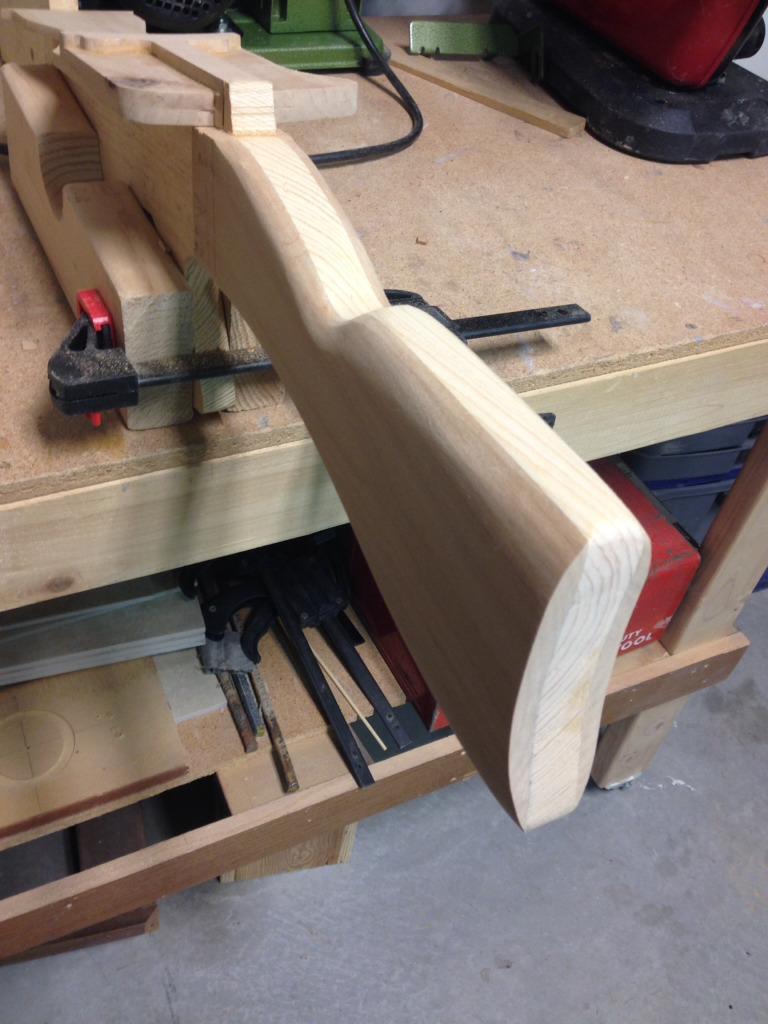

I had some oak board that I laminated with the pine and shaped the stock. I hope to stain the wood as opposed to painting so the grain will show.

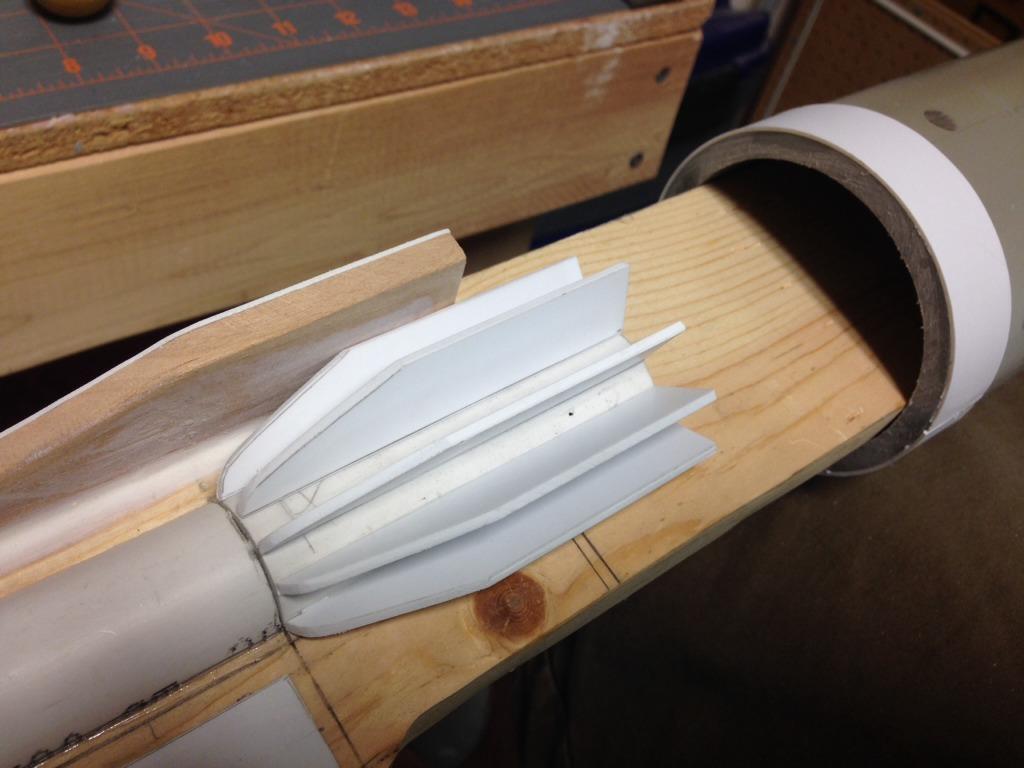

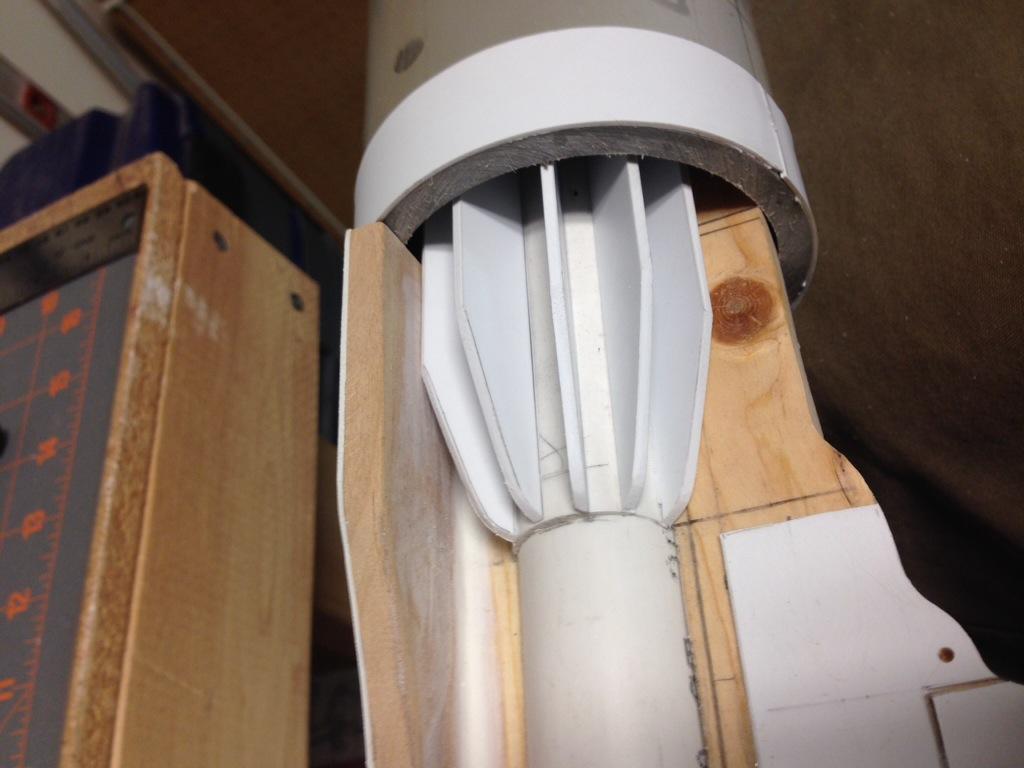

This is how I built the cooling fins. Seemed easier to me and the fins extend into the barrel and will look a little better.







I have some slings on order when I get those I'll fabricate the d ring

Link to comment
Share on other sites

Last nights progress built the front and rear sights installed the tubing and painted the cooling fins.  I'll throw it on the scale after I build the front taper and see what it weighs.





Link to comment
Share on other sites

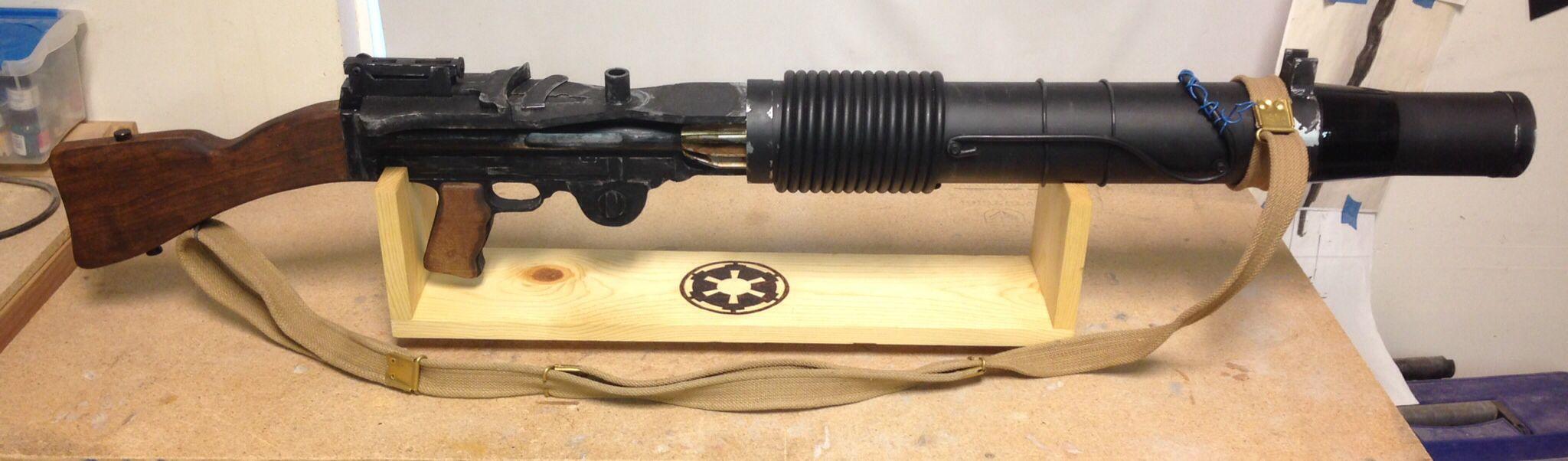

Current progress, this represents 9 days work. I hope to have it done for a troop next weekend. I also got my repro straps today.



0220FBA3-36FE-4CAE-B66A-C1F08CF21D3B_zps



7A8A5330-B64F-4CF5-A301-10E801D3617D_zps



Sent from my iPhone using Tapatalk

Edited by Idaho Jones
Link to comment
Share on other sites

Had a chance to troop with my T21 blaster this weekend, in a heavy weapons variant ;). It wasn't too heavy and I don't think I knocked anyone over with it. It will be fun to have an alternate look at troops as I'm the only active TK in our city.






  • Like 1
Link to comment
Share on other sites

  • 3 weeks later...

Working on some details tonight. I added the shinny section on the taper. And had "a happy little accident" when I pealed the mask off I had some black paint peal off so I filled it in with silver. I also found some better blue wire to use.
