E-11 Scratch Blaster Build

Recommended Posts

Welcome all to my E-11 blaster build or as I would like to call it: My E 1-1 (EH) Blaster build(s).

Like so many others, I'm in the recruits line waiting for Anovos to issue words of armor deployment.

And again like so many others, a shift of focus over to non-issued equipment and massive research here.

What have I learned in the last month: Finding a Canadian supplier of E-11 blasters is difficult. The reason why: Weapon Props cannot be legally shipped into Canada. Here is the link:

http://www.rcmp-grc.gc.ca/cfp-pcaf/fs-fd/replica-replique-eng.htm



So what is a recruit to do?



Do as the FISD teaches and inspires: Get resourceful and make imaginary reality.



I did eventually find a supplier on Etsy.com - QuestDesignCanada and asked Mrs.Clause for it for Christmas. I have only seen one review here by Knockerbot (thanks mate).



Now true - one step closer to Centurion and problem solved, but it all just sat uneasy with me.

After following so many great builds, watching the ingenuity as well as attention to detail or braving new ground with minimal resources with TFA around the corner. One persons comment here on FISD about the blaster left me with one question (Thanks Vern - TK 2392 Bondservnt) :



How hard would it be for a Canadian Trooper to build his own blaster?



So here we go (eh) lol!



Goal: To build a ANH E-11 Blaster with durability to handle Canadian climate in the winter season with using a little resin as possible as it has a tendency to become more brittle in the cold.

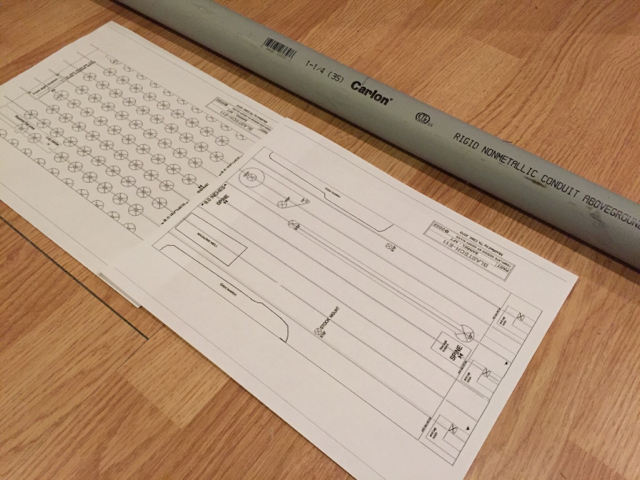

First templates here on FISD: (Many, many thanks again to Vern - TK2392 Bondservnt)



http://www.whitearmor.net/forum/topic/25620-esb-e-11-templates/





Next to get back on the forum and learn mobile pic uploads lol - totally forgot to research that part











Sent from my iPhone using Tapatalk

  • Like 1

Share this post


Link to post
Share on other sites

Sorry all - Computer or Photobucket not cooperating - pressed OK about 3 times after I pasted URL but nothing is happening.





Sent from my iPhone using Tapatalk

  • Like 1

Share this post


Link to post
Share on other sites






Sent from my iPhone using Tapatalk

  • Like 1

Share this post


Link to post
Share on other sites

Hah ha! Success!





Sent from my iPhone using Tapatalk

  • Like 1

Share this post


Link to post
Share on other sites

Next step: Gather materials - for this blaster I'm trying to avoid the exchange rates and shipping to keep the cost low.



So far this is all I have been able to collect:

10' of 1-1/4 grey conduit PVC @ Home Depot -$12 -

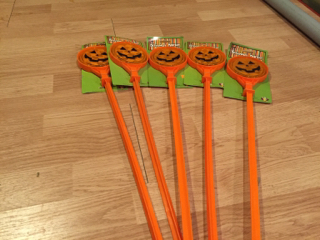

5 Plastic Halloween Drive Markers approximately 26" long -($2 each) from a Liquidation Store - to modify into "T-track" -$10










Sent from my iPhone using Tapatalk

Edited by Pyrates
  • Like 1

Share this post


Link to post
Share on other sites

This really is a scratch build! I will definitely be following your progress, really excited to see this come together. :) Keep it up!

Edited by T K
  • Like 1

Share this post


Link to post
Share on other sites

This really is a scratch build! I will definitely be following your progress, really excited to see this come together. :) Keep it up!



Many thanks mate!





Sent from my iPhone using Tapatalk

  • Like 1

Share this post


Link to post
Share on other sites

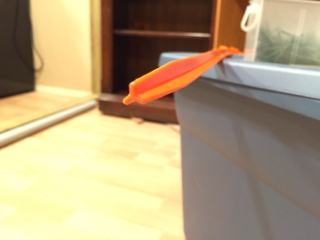

Here's a different angle on the future t-tracks





Sent from my iPhone using Tapatalk

  • Like 1

Share this post


Link to post
Share on other sites

Found some old survey equipment in the trash bin at work. Broke it down and a treasure trove of parts appeared! I have to double check measurements but I may have found hex screws that might work for the muzzle as well as some screws that could help detail the scope. Cut and dry - SCORE!



12227692_1683448058608463_11345890922718

Edited by Pyrates
  • Like 1

Share this post


Link to post
Share on other sites

Templates prepped and cut the 1-1/4" pipe using a pipe cutter. The 10' length yields 6 E-11 blasters. I cut 3 and left the rest for a possible future DLT-19 build (as I haven't decided on whether I'm going ANH Hero, Stunt, or as a Shock Trooper - waiting till I see my kit first hand).





Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Having problems posting pics again - grrrr must be the Rebels doing lol





Sent from my iPhone using Tapatalk

  • Like 1

Share this post


Link to post
Share on other sites

Keeping cost in mind - Gluestick $2 / Spray adhesive $18

12239691_1683959878557281_13422536330419



12115456_1683959908557278_49724465319357



Prepped vent holes with a punch ( a sharp nail will work too) and highly encourage to always use a clamp whenever possible

12241481_1683959951890607_90175731430679



12208801_1683959978557271_35728009045557

Share this post


Link to post
Share on other sites

Now to try and keep things as accurate as possible I used a 3/8" drill bit then used the edge of the bit to shave off the last 1/16". I used a drill press to speed up the process and for more control.



12241312_1684052928547976_50279802315985



12239616_1684052935214642_56037820754865



A cordless power drill could be used instead of a drill press with use of a shorter length bit or a "Stepper Bit"

Share this post


Link to post
Share on other sites

So after I took that pic I got an idea for the inner barrel...hmmm....11218813_1684052961881306_78895572058710



Gack! - NO WAY!

12208604_1684052968547972_76178965342316



As the Kool-Aid Man says "Ohhhhhh Yeeeeeeaaaaaah!"

12208818_1684052995214636_12442634896384



12196226_1684053001881302_12435169252619

Share this post


Link to post
Share on other sites

You gotta love it when you get surprises like this from the family



12219339_1684053011881301_78672260946137

  • Like 2

Share this post


Link to post
Share on other sites

I also used an engraver to lightly scribe the center lines, magazine, chamber, and cocking handle channel.





Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Cheers mates! The mini sabers, funny enough, are Wii Accessories I bought for Force Unleashed from Walmart - they were $10 a piece about 6 years ago.





Sent from my iPhone using Tapatalk
