Dday[501st] Posted December 24, 2012 Report Share Posted December 24, 2012 So, I read tha tI can set my stormtrooper lego clock to 12/24 hour time, but I can't for the life of me find out how to do it. Does anyone have one of these clocks (Yoda, Darth, boba, any other Starwars clock is the same) and knows how I can swap to 24h time? Thanks! Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted December 24, 2012 Report Share Posted December 24, 2012 (edited) Of course I put my instructions in a safe place I have been playing with mine for the last 20 minutes, do you think I can change to 24hr clock, no sorry can't help Let me know if you figure it out Edited December 24, 2012 by gmrhodes13 Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted December 24, 2012 Report Share Posted December 24, 2012 I found his in a review but it doesn't work on mine, "The time and displayed alarm time can be changed from standard to military time simply by pressing the Time Set button. Each time it is pressed, you will hear a beep and it will switch to the opposite format." I think it may have been an option before production and for some reason it did not end up incorporated in the finished product Quote Link to comment Share on other sites More sharing options...
Dday[501st] Posted December 25, 2012 Author Report Share Posted December 25, 2012 I tried pushing the buttons as well, even alternating, combos and all that but to no avail... I like 24 hour time a lot more, I was raised with 12hr, and then moved into 24, and for me, 24 is way smarter, no repeating numbers makes things easy. We will see what lego tells me from my question to their customer service dept. My instructions have nothing on it regarding 24 hour time. Quote Link to comment Share on other sites More sharing options...
nicksevere Posted December 25, 2012 Report Share Posted December 25, 2012 I'm stumped. Nothing in my instructions but when you pull the battery and put it back in you can clearly see the LCD for the 24hr. Quote Link to comment Share on other sites More sharing options...
Dday[501st] Posted December 25, 2012 Author Report Share Posted December 25, 2012 Yeah, the LCD is for sure made to use 24h, it has a full crystal in there for all the numbers in the first slot... Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted December 25, 2012 Report Share Posted December 25, 2012 I think it was left off in production, tried for a while this afternoon, I give up lol 1 Quote Link to comment Share on other sites More sharing options...

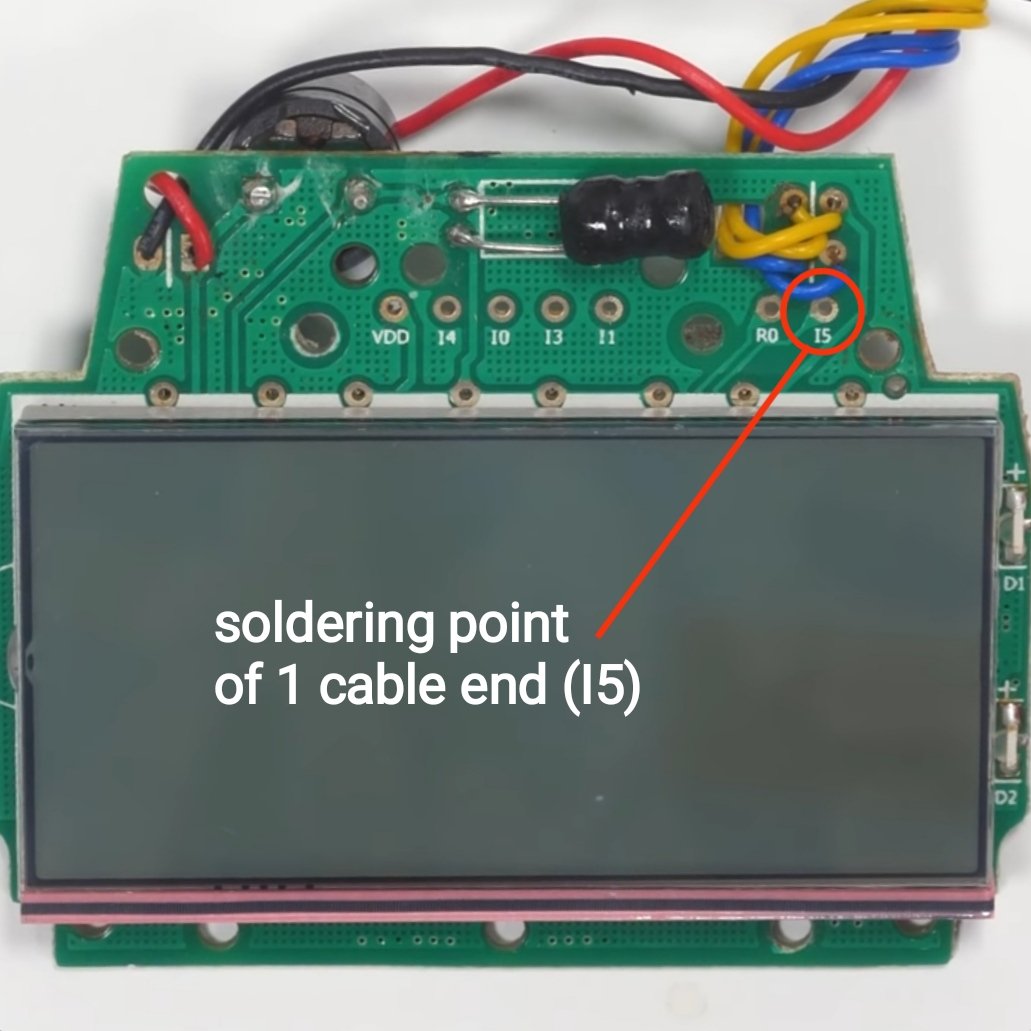

nvx Posted August 2, 2020 Report Share Posted August 2, 2020 Found this while trying to set it to 24 hours. Seems like it was excluded feature in the version I had. The funcion is still there, but they didn't connect the button. You can still do it, but need to reach the circuit board, not to hard actually. Pull (yes, pull hard) off the head. Unscrew to two screws for his "collar" and four screws for his torso and open up Short circuit (connect with a wire) the positive terminal (3V+) and the hole not used being labeled I5. You are now switching between 24h and am/pm. This seems to reset each time you replace batteries. Shouldn't take more than 5 minutes. 1 Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted August 2, 2020 Report Share Posted August 2, 2020 Nice tweak, I may have to give it a go when I get some spare time Quote Link to comment Share on other sites More sharing options...

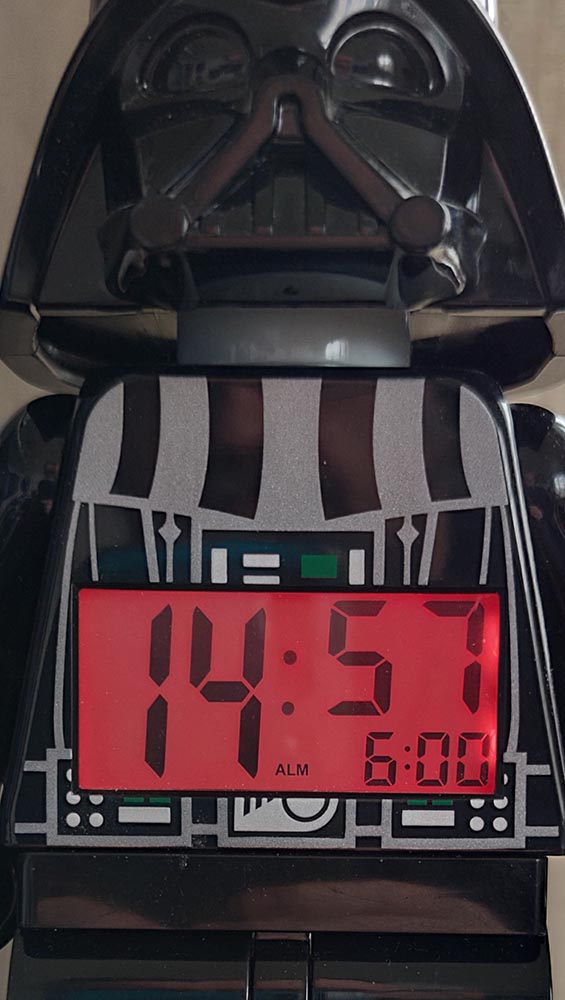

jbr Posted April 26, 2021 Report Share Posted April 26, 2021 (edited) On 8/2/2020 at 5:35 PM, nvx said: ... Pull (yes, pull hard) off the head. Unscrew to two screws for his "collar" and four screws for his torso and open up Short circuit (connect with a wire) the positive terminal (3V+) and the hole not used being labeled I5. You are now switching between 24h and am/pm. This seems to reset each time you replace batteries. ... That was a perfectly working tweak - nice! Edited April 26, 2021 by jbr Quote Link to comment Share on other sites More sharing options...
Dee_lights Posted May 24, 2021 Report Share Posted May 24, 2021 YES THANK YOU !! my only issue was finding some wire Quote Link to comment Share on other sites More sharing options...
Starwarsnerd402 Posted March 29 Report Share Posted March 29 On 8/2/2020 at 4:35 PM, nvx said: Found this while trying to set it to 24 hours. Seems like it was excluded feature in the version I had. The funcion is still there, but they didn't connect the button. You can still do it, but need to reach the circuit board, not to hard actually. Pull (yes, pull hard) off the head. Unscrew to two screws for his "collar" and four screws for his torso and open up Short circuit (connect with a wire) the positive terminal (3V+) and the hole not used being labeled I5. You are now switching between 24h and am/pm. This seems to reset each time you replace batteries. Shouldn't take more than 5 minutes. Would you mind doing a video showing how exactly to do this? I'm no electrician and have no idea what to do with what wire. Quote Link to comment Share on other sites More sharing options...
Wolf_ Posted April 6 Report Share Posted April 6 On 8/3/2020 at 1:05 AM, nvx said: Found this while trying to set it to 24 hours. Seems like it was excluded feature in the version I had. The funcion is still there, but they didn't connect the button. You can still do it, but need to reach the circuit board, not to hard actually. Pull (yes, pull hard) off the head. Unscrew to two screws for his "collar" and four screws for his torso and open up Short circuit (connect with a wire) the positive terminal (3V+) and the hole not used being labeled I5. You are now switching between 24h and am/pm. This seems to reset each time you replace batteries. Shouldn't take more than 5 minutes. Does this work for lego ninjago clocks too? I attempted to pull off the head but ended up pulling off the leg and the mask... . I really enjoyed military time, one day it randomly switched when I smashed the alarm one morning, I had to change the batteries though and no matter how hard I try or where I look I can't figure out how to change it back. Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted April 6 Report Share Posted April 6 10 hours ago, Wolf_ said: Does this work for lego ninjago clocks too? I attempted to pull off the head but ended up pulling off the leg and the mask... . I really enjoyed military time, one day it randomly switched when I smashed the alarm one morning, I had to change the batteries though and no matter how hard I try or where I look I can't figure out how to change it back. These may be of help: https://www.manualslib.com/manual/624843/Digital-Blue-Alarm-Clock.html 1 Quote Link to comment Share on other sites More sharing options...
