Wombat Posted January 19 Report Share Posted January 19 So after been inspired by many build Threads BigJasonis and Klamorr decided to take the plunge for a Printed R1 ST.... Never used Fusion 360 before - so thought I would start with R1 Thermal Detonator. A steep learning curve, a number of hours...many YT videos, and completed my first fusion 360 design. Now off to print..... 1 Quote Link to comment Share on other sites More sharing options...
Wombat Posted January 19 Author Report Share Posted January 19 (edited) Ref image to work from Edited January 19 by Wombat Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted January 19 Report Share Posted January 19 Nice work for only just learning. Just for accuracy's sake, the raised ridges look a touch narrow on the control panel. Inner curve is a little large on the control panel, but those are being really picky comparison image Wish I could design that well, keep up the great work Quote Link to comment Share on other sites More sharing options...
Wombat Posted January 20 Author Report Share Posted January 20 Updated.. now to print... 2 Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted January 20 Report Share Posted January 20 9 hours ago, Wombat said: Updated.. now to print... Great work on the updates, and very timely too Looking forward to seeing the print complete 1 Quote Link to comment Share on other sites More sharing options...
Wombat Posted January 21 Author Report Share Posted January 21 Updated.. now to print... 1 Quote Link to comment Share on other sites More sharing options...

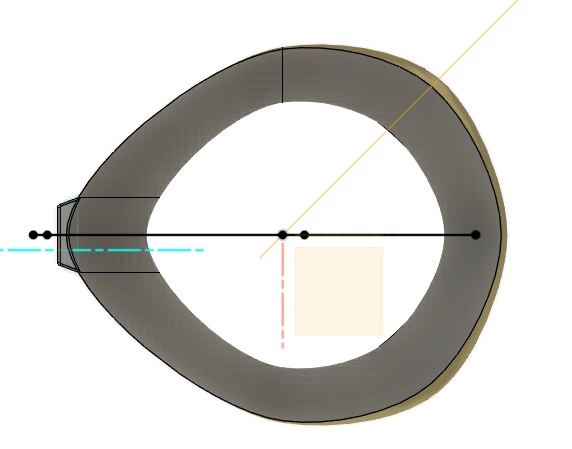

Wombat Posted January 26 Author Report Share Posted January 26 After following BigJasoni R1 build thread - i did end up buying the R1 Akira design. However, was not happy with the TD, hence the redesign. I also saw the comments regarding the bulbous look of the Greaves. So decided to learn a bit more and start from scratch designing them in fusion 360 from the ref photos. Still need to do the back of the boot, but happy with the progress so far. Quote Link to comment Share on other sites More sharing options...
Wombat Posted January 26 Author Report Share Posted January 26 (edited) Actually don't like the diamond shape at back of calf so added 45 deg splines to help shape the calf area more rounded. Edited January 26 by Wombat Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted January 26 Report Share Posted January 26 Just note as I found recently the coverstrips on the rear are not centered, not in the CRL as yet but may be in the future. Shin coverstrp is hard up against the outer ridge. Thigh there is a small gap between coverstrip and thigh lower ridge Quote Link to comment Share on other sites More sharing options...
Wombat Posted January 27 Author Report Share Posted January 27 Thanks for pointing that out, i didnt have a good rear photo to check that out. Designed it centered with the over lap. will need to adjust model again. 1 Quote Link to comment Share on other sites More sharing options...
Wombat Posted April 7 Author Report Share Posted April 7 (edited) A Resin print of the Greeble done... - and the Sanding has started on the Nico Helmet.. I hate sanding with a passion.... Edited April 7 by Wombat 1 Quote Link to comment Share on other sites More sharing options...
gmrhodes13[Staff] Posted April 7 Report Share Posted April 7 6 hours ago, Wombat said: A Resin print of the Greeble done... - and the Sanding has started on the Nico Helmet.. I hate sanding with a passion.... +1 on that, I can't wait until larger resin printers become more viable for my budget 1 Quote Link to comment Share on other sites More sharing options...
