Sly's First build E-11 doppy full resin

[Sly11[Admin]]

I have been meaning to add this for some time, this is the first attempt so hoping the link works



OK Second attempt So just look down the page a little and you will see the build



Thanks

Edited August 15, 2014 by Sly11

[Sly11[Admin]]

Ok, thanks Ian, might have to recreate it here on FISD as I just copied the link straight of my post on the Redbacks Garrison.

[Sly11[Admin]]

Whats in da box





[Sly11[Admin]]

Work has begun

I chose to use one of Gazmosis world famous Sterling magazines, he cast off an Original Sterling mag.

It is accurate compared to what comes in the Doopy kit (Doopy mag in foreground)





It does take a little modification to get the new mag to fit, but the end result was well worth it





[Sly11[Admin]]





Modifying for a more accurate look.

I drilled a couple of holse through first, then set to work with some micro files to take out the rest of the un needed material.



[Sly11[Admin]]



Unfortunately i have lost some photos, from when I did this build originally, so as you can see a bit of progress had taken place.

The aluminum scope rail and hengsler bracket were made based on the How to guides here on FISD, Thanks to Billhag and his awesome diagrams

[Sly11[Admin]]



Seeing how it sits, looks ok to me.



so I drilled out the ......interesting looking blobs and glued in some hex bolt heads, i cut the shaft off the back using my Dremel

[Sly11[Admin]]

it was time to make a working trigger, rather that just gluing it in.

hardly an original idea as i took inspiration from both Gazmosis and DarkCMF and their build threads. Nice work by the way guys, both your builds are great.



The process for this setup is better documented in other builds, mine is just a basic "see what you can do" thread

[Sly11[Admin]]

[Sly11[Admin]]





There is a hole drilled into the trigger piece, to locate the spring properley.

[Sly11[Admin]]

[Sly11[Admin]]

[Sly11[Admin]]



[Sly11[Admin]]



Drilled out the resin and placed Hex bolt in, the threaded part has been cut off using a Dremell.





A little more trimming required to make it fit better

[Sly11[Admin]]

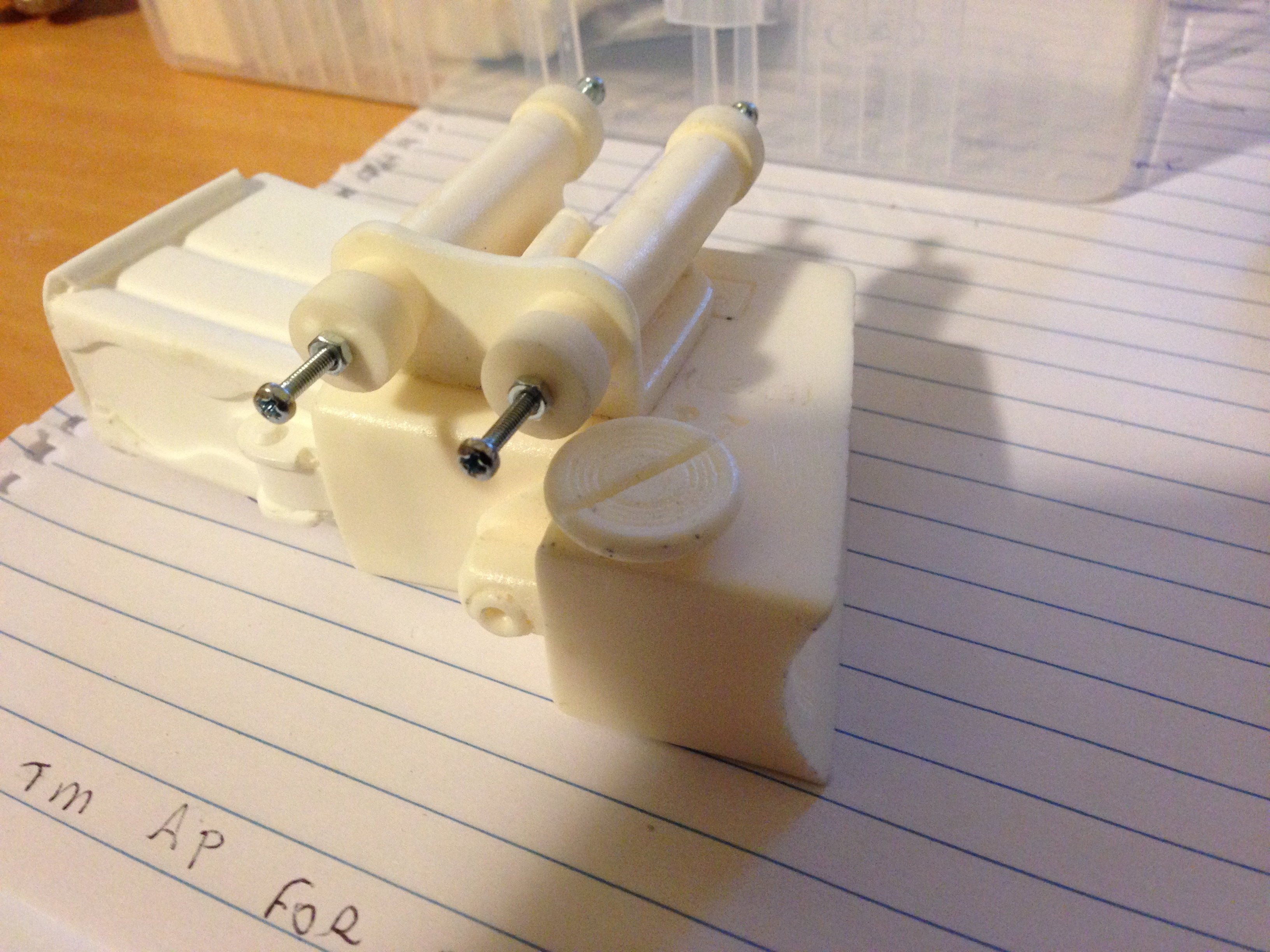

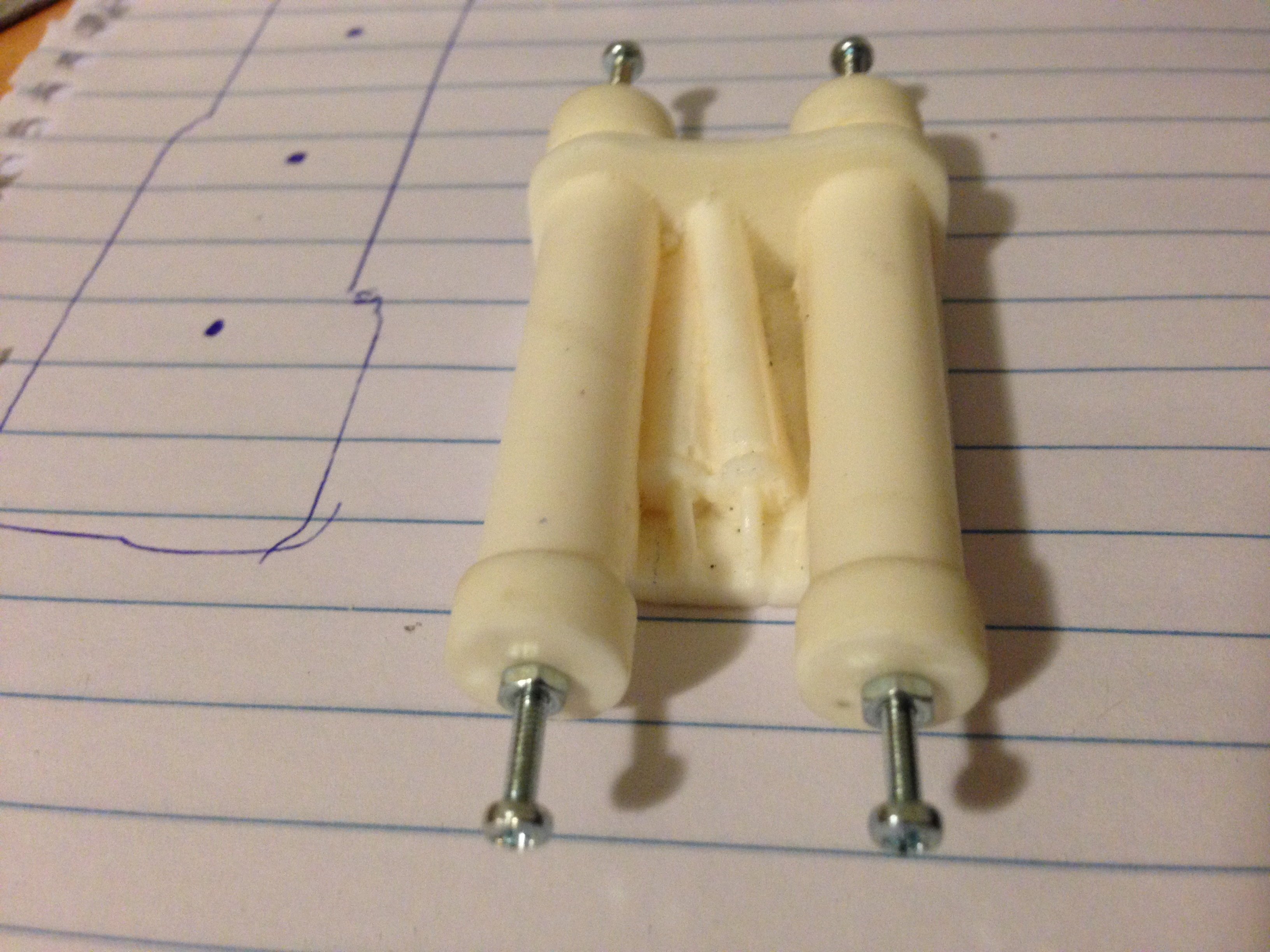

Power cylinders mod time, grind off the resin drill holes and put in the real stuff, then cut off bolt heads and your done.





you can see by my notes on the paper, i was researching Armour at the time

[Sly11[Admin]]

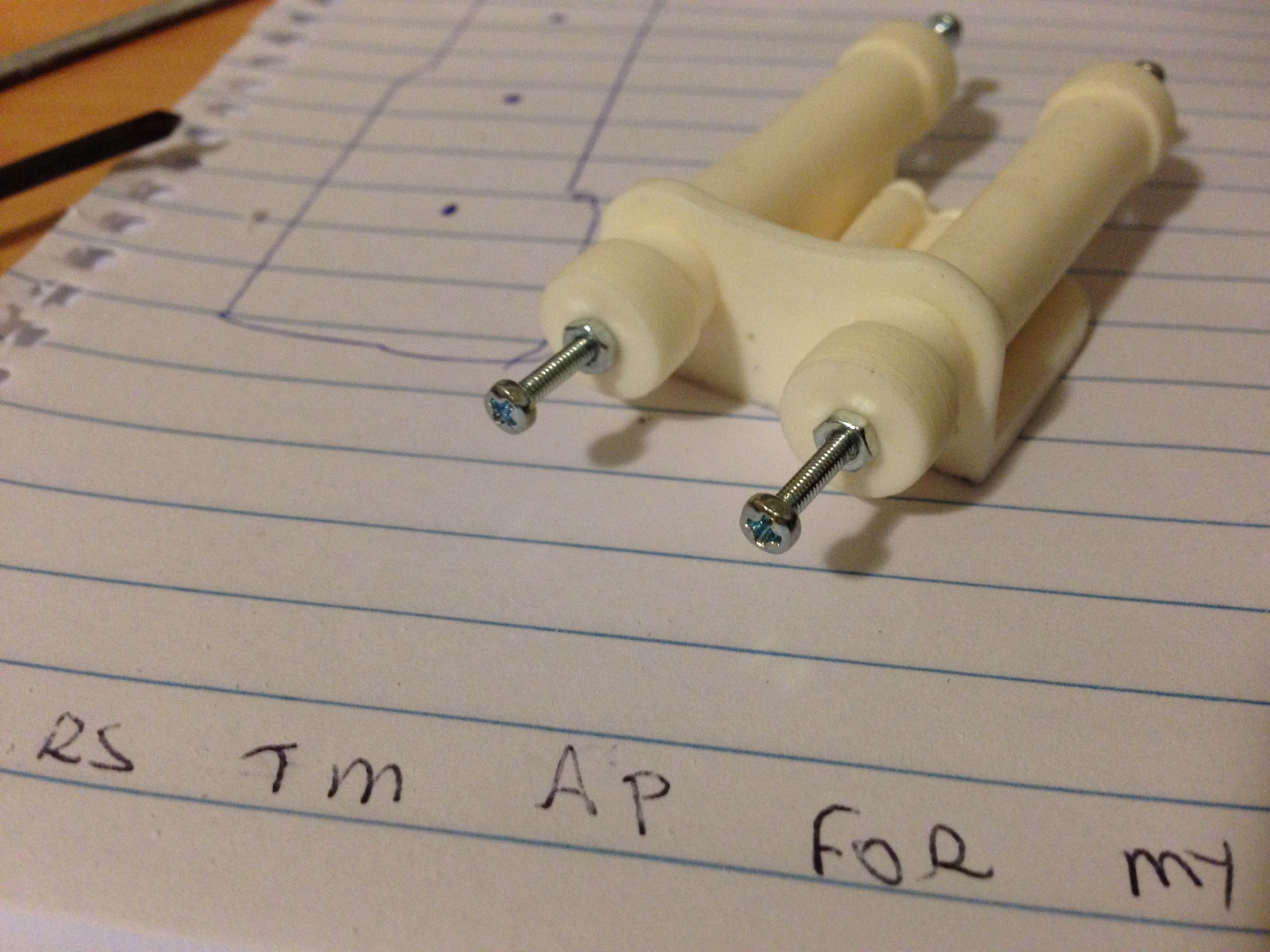

The diagram on the paper underneath the power cylinders, is a pinning template for the gun grip. I must give credit to DarkCMF for this, as if not for seeing it in his build, I'm not sure how the alignment would have gone, or even how I would have attempted it in the first place.

[Sly11[Admin]]

Testing for positioning.

[Sly11[Admin]]

Lets have a look how it is coming along









[Sly11[Admin]]



Time to start gluing some things together, I did pin everything, but again cant find the photos.

I used 2 part epoxy resin for my bonding agent

[Sly11[Admin]]



You can see a couple of the pins, these were just cut off an old coat hanger



[Sly11[Admin]]

[Sly11[Admin]]



Primer time, before top coats go on





Also some more work in preparing other parts for assembly, the pistol grp will be pinned, screwed and glued in place.

[Sly11[Admin]]



the folding stock will also be screwed, pinned and glued.







More to come soon

[Sly11[Admin]]

Primer coating the parts







[Sly11[Admin]]



Gluing and starting to take shape
