Ayen_s E-11 Blaster Leather Holster DIY

Recommended Posts

For my armor, I want to make my own E-11 Leather Holster. I stay in Malaysia and most of the material and tools are source locally.


Tools

Snap Setter Set

Leather Hole Punch 3mm

Hobby Knives

Metal Metric ruler

Mallet

Hard Rubber/Cutting board

White colour pencil


Consumable

Leather Size 16"X16": I choosed a pre dyed black leather. As this was a pre dyed black leather, I will double up the holster strap with a brown undyed leather for ANH look.

Button Snap

Double sided rivet




Template

E-11 Blaster Leather Holster Template: I use TM template here




Procedure



1. Study the template for previous bulit. Here here



2. Print out the template in A3 size:I redraw the template in  Inkscape. Set up the paper to A3. During printing, I encountered problem because my printer's printable margin cannot print out the full lines. So i adjusted some part to middle a bit and print the template twice.


3. Check the dimension is correct

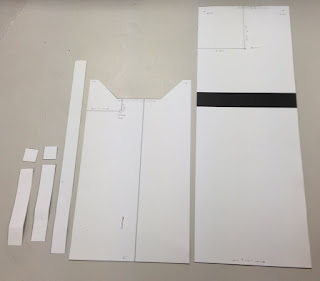

4.Cut out the template: I combine the template using stationary tape.


5.Trace the template on the leather. Identify which side is the inside and outside: With the piece that I have, I can make 2 holster. A spare in case I mess this one up.


6.Cut the template with sharp hobby knife. I change the blade each time I want to make a new cut.






For the stitching, I am going to send it to a leather shop nearby for machine stitching. I still not capable to do my own stitching yet.





To be continue.

  • Like 1

Share this post


Link to post
Share on other sites

Glue 2 part of strap. I glue black pre dyed leather and brown leather.




Use magnet to hold in place.






Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Mark the strap cutting guide.




Strap brown side.




Strap black side.






Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Send the holster to leather shop for machine stitch.




Looks good.





Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Hey nice tutorial! 1 question how thick is your leather?

The leather I am using is 2mm. It is thinner than my other holster by Anovos. Anovos holster is closer to 5mm. Refer to below picture.



Left: Anovos holster. Right: My holster.




Share this post


Link to post
Share on other sites

Wow that's a difference but does the 2mm also work?

Edited by AthenaIII

Share this post


Link to post
Share on other sites

Wow that's a difference but does the 2mm also work?

From my understanding of the CRL, it will work. Any comment from more experienced trooper?

Share this post


Link to post
Share on other sites

From my understanding of the CRL, it will work. Any comment from more experienced trooper?

Awesome! Then i will look for some leather!

Share this post


Link to post
Share on other sites
