Are there any ideas as to how I can keep the lower edge of the thigh armor from digging in the back of my leg without having to Dremel it down? The edge at the bottom of the arrow on the Reference photo.





Edited by BATS2150
add picture
Link to comment
Share on other sites

First off photos would be handy to see what gaps you have and how the armor is sitting. Most of the time it's a case of using a dremel or snips to cut down the tops. You can't take any of the bottoms of the thighs due to the ridges there.



Depending where it's digging in mobility cut outs may help as you may be able to drop the thighs a little, but as I say photos would help ;)





Link to comment
Share on other sites

Hi Michael

You can actually trim some of that ridge off.

Many of the screen used suits have a portion of that area removed for mobility and comfort.

ANH screen shot of ridge trimmed away for mobility and comfort



lZWGaIB.png?1

Link to comment
Share on other sites

45 minutes ago, BATS2150 said:

I think I still need to cut or Dremel a little more. I am trying not to cut too much.




Yes you can take off some more, all of that return edge can be trimmed, as both Andrew and I have said you can remove even the lower ridge area as some of the screen armor had that, reference

lZWGaIB.png?1

Link to comment
Share on other sites

30 minutes ago, BATS2150 said:

I completed the mobility cut to the Lower end of the Right armor thigh piece. I did not want to cut too much close to the ridge, my old man eyes are not what they use to be. What do you all think?

It's ok Michael. just a sanding session to avoid armor bites and you're golden. :salute:

Link to comment
Share on other sites

Posted (edited)

UPDATE: Finally got pictures of the Right Thigh up. I completed the return edge removal and sanded. Now work on Left Thigh.





Edited by BATS2150
remove picture
  • Like 2
Link to comment
Share on other sites

Posted (edited)

Ok, Did a little work on the top of the Left Thigh. Doing this slow and easy. Plus, my Dremel needed a charge.









Edited by BATS2150
Removed pictures for Space
  • Like 1
Link to comment
Share on other sites

It can be a dauting task making those first cuts, shortly after you wonder what all the worry was about ;)

Link to comment
Share on other sites

Posted (edited)

Ok, Did the Left thigh Mobility Cuts and return edge. I did not want to grind off too much of the Ridge.  I don't think they had a Dremel handy back in 1976-1977 when they did the modifications on the screen used suits.

 20220803_LeftThigh.jpg.20d9e851b23e97e323db0739e8677214.jpg20220803_LeftThigh2.jpg.48076f35313e753d8569a45709f4f37a.jpg20220803_LeftThigh3.jpg.5fee618d6491b2d2227ab7296b9a6638.jpg20220803_LeftThigh4.jpg.e2242030ea654f670f02f6ab93716ca7.jpg

Edited by BATS2150
Information and add picture
Link to comment
Share on other sites

They look ok . Good work.



For higher levels  "Any mobility cuts on the back do not extend beyond the top of the raised ridge."



By the way, Try using a photo host like Imgur to post your photos into the thread without no space limit.









  • Like 2
Link to comment
Share on other sites

Nice work, just make sure there are no sharp bits or you may encounter armor bites ;)

Link to comment
Share on other sites

6 minutes ago, BATS2150 said:

Yeah, already got a nice scratch on my finger from running my hand across the edge while sanding



I normally finish off with a couple of different grade wet and dry sandpaper, if you use water it helps the sandpaper to last a little longer and not get clogged as quickly, 240grit then finish with a 600grit just to make absolutely smooth

Link to comment
Share on other sites

You nee to clamp both sides too.



clamps, clamps , clamps  :laugh1:





Some examples

WMRNtT6.jpg?1  PztrO4T.jpg?1







HY44RfM.jpg?1     42YNUzh.jpg?1





For Higher Levels  :

  • Sniper knee plate must be aligned with the ridges on the shin.



REFERENCE IMAGES



SauQQOO.jpg    hDOHSZh.jpg  284c0Z2.png?1







Link to comment
Share on other sites

I've had to add a small piece of plastic behind the top of the sniper plate to allow the bottom and sides to angle correctly.



It's all about force, clamps, magnets and wrapping tape all can be used to get it to sit just right

Link to comment
Share on other sites

Posted (edited)

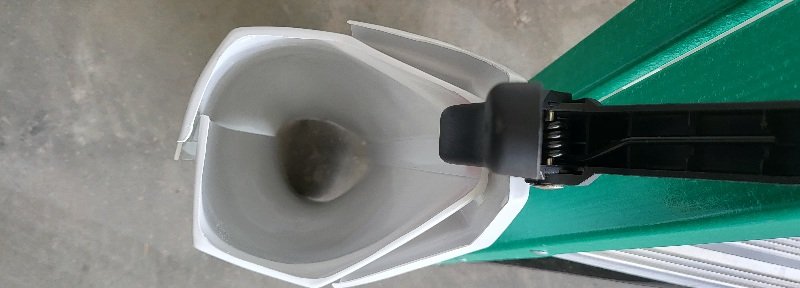

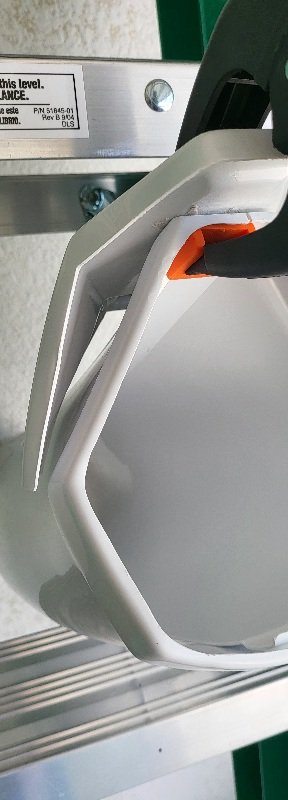

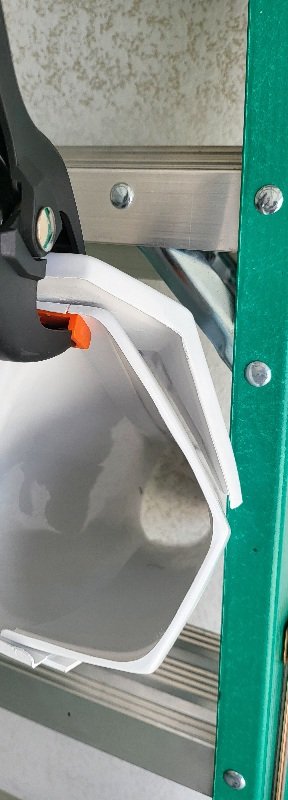

One thing I am seeing on the sniper knee, I am slightly off center to the left.  Would you suggest to sand down the high sopts and use ABS paste?


Edited by BATS2150
Link to comment
Share on other sites
