Thigh questions


Recommended Posts

I've hit a bit of a roadblock with my thigh fitting. I have an ATA TK set, and after trimming the return edges on the inside and leaving extra material for the cover strips in the back, it still seems like I don't have enough space. Either I need to add a shim or I have them placed too high. Should the bottom of the thigh be placed right at the knee or a bit above? It's a bit hard to tell from reference pics because the knee itself is covered by ammo or sniper plate.

Link to comment
Share on other sites

2 hours ago, AnSkeleton said:

Should the bottom of the thigh be placed right at the knee or a bit above? It's a bit hard to tell from reference pics because the knee itself is covered by ammo or sniper plate.

A bit above is usual, really depends on your height, I'm 5'11", some photos would help




Link to comment
Share on other sites

Definitely don't add mobility cuts unless you have fitted all of your armor, I've seen these cut out too many times on troopers that didn't need them and they end up with huge gaps between the back of their knees

Link to comment
Share on other sites

Definitely don't add mobility cuts unless you have fitted all of your armor, I've seen these cut out too many times on troopers that didn't need them and they end up with huge gaps between the back of their knees

Sorry, I wasn’t suggesting to make mobility cuts. Just that you can see the thigh placement in those shots.


Sent from my iPhone using Tapatalk
Link to comment
Share on other sites

5 minutes ago, Short4ATrooper said:

Sorry, I wasn’t suggesting to make mobility cuts. Just that you can see the thigh placement in those shots.

Not all troopers in ANH had them ;)

Link to comment
Share on other sites

I'm on the shorter side, just barely 5'9" with shoes. Most likely gonna need the cuts either way. Apparently I have thick thighs, but I might be able to get away without a shim. I have the front of one thigh gluing since yesterday. once I'm off work I'll take some pics so I can get a better idea.

Link to comment
Share on other sites

4 hours ago, AnSkeleton said:

I'm on the shorter side, just barely 5'9" with shoes. Most likely gonna need the cuts either way. Apparently I have thick thighs, but I might be able to get away without a shim. I have the front of one thigh gluing since yesterday. once I'm off work I'll take some pics so I can get a better idea.

Could you post some images of your issue, most of us use Imgur a free image host, once your pictures are uploaded you just copy the "direct link" to each image straight into your post





Link to comment
Share on other sites

So I got my undersuit and now that the front is dried, it's not as big of a gap as I thought. For a comfortable fit, there was a small gap in the back. Do I need to shim or can I just make that strip an extra 1/4 inch or so? (Dont worry, I'm going to trim the top of that front strip.)





Link to comment
Share on other sites

Good stuff one other thing I noticed with the front of your thigh, you seem to have a lot of that front ridge left either side of the cover strip. Ideally, you want that ridge to be around 22mm wide - just wide enough to accommodate the 20mm cover strip. A general measurement most people use is have around 11mm from the ridge to the seam (red line) on each side whereas you currently seem to have around 20mm on each side.


See here how you can just see the ridge under the cover strip?



Sent from my iPhone using Tapatalk

Link to comment
Share on other sites

Looks better. Still too wide in my opinion but I’m not sure if it’ll affect clearance. Whenever I’ve seen someone need more room in the thighs, they’ve shimmed the back.



The problem is, unless you do the same for the fronts of all the other limbs it’ll look odd. As I say though, not sure if it’s an issue or not. Best to check with an armourer before continuing.



Sent from my iPhone using Tapatalk

Link to comment
Share on other sites

8 minutes ago, AnSkeleton said:

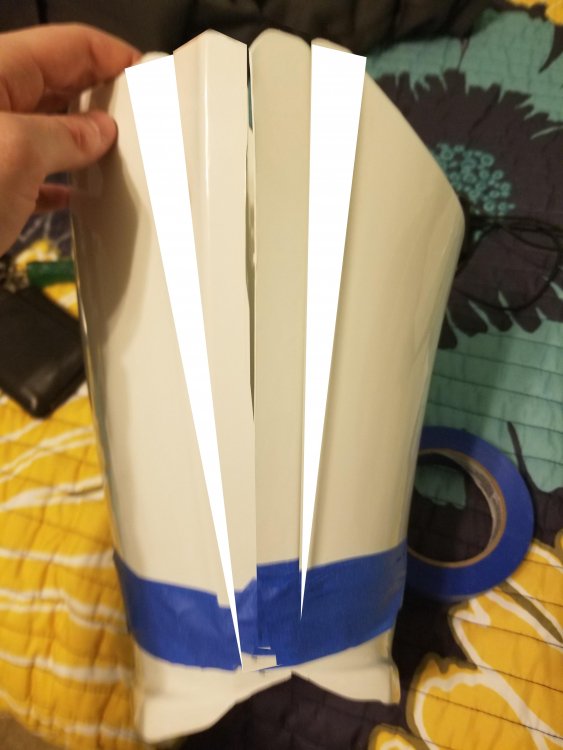

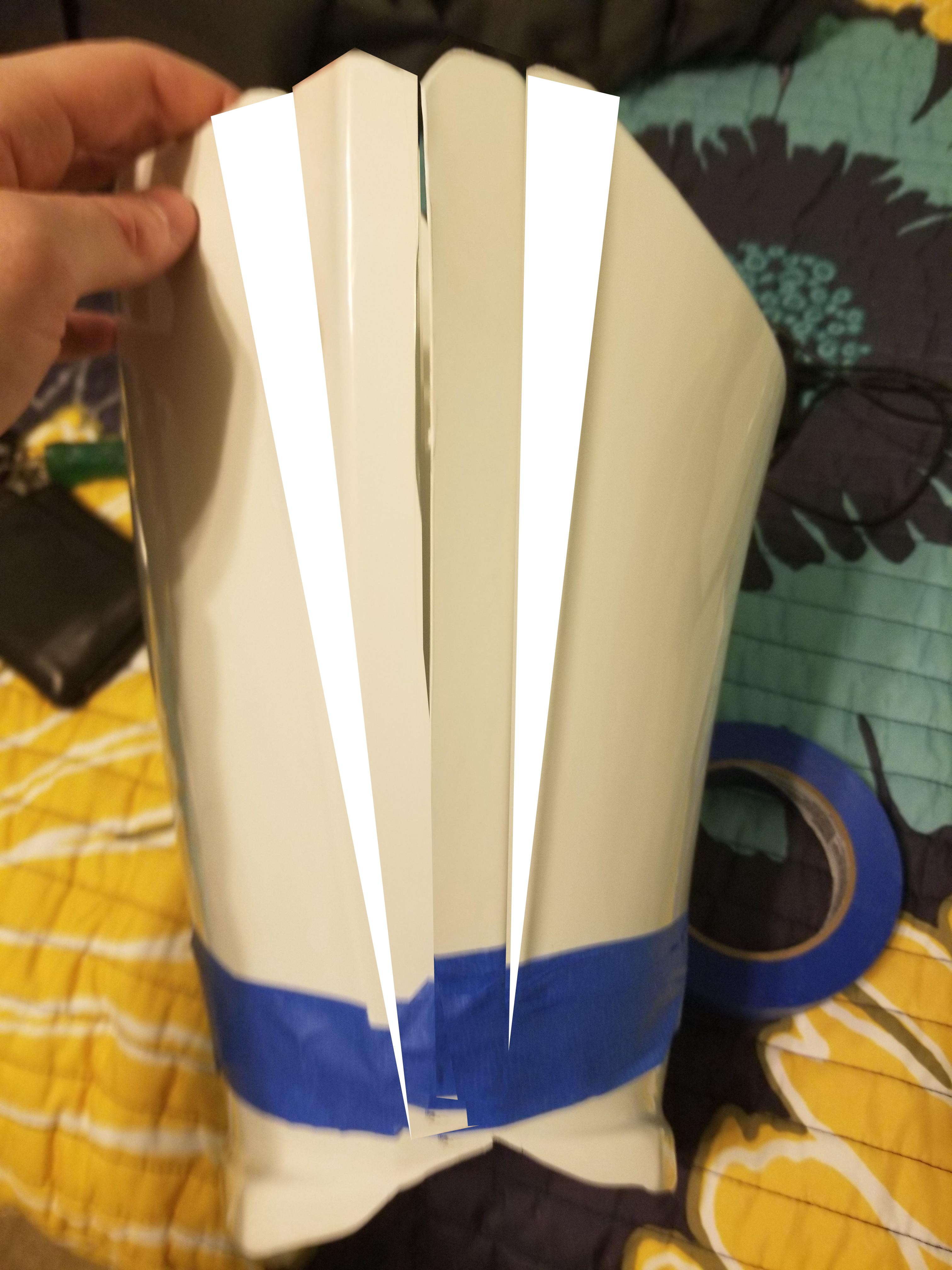

https://i.imgur.com/c10id1R.jpg

https://i.imgur.com/xbche0J.jpg

I'm really having trouble here. I have a huge gap in the back of the left thigh and I havent even trimmed the back of the left shin, and they just barely touch. What do I need to do here?

Try using the "direct link" to your image







Looks like you will need larger cover strips on the rear. BUT you will need to add more plastic to the back of the thighs before you can add cover strips. A couple of threads which may help



How to make ABS paste



Link to comment
Share on other sites

That is a question for your GML (garrison membership liaison) some will allow large cover strips some will not so I would definitely contact him/her and discuss.

I have seen some approved





If they do not allow you would have to add some plastic to the sides, with ATA having the raised ridges it is a little more difficult, you would need to cut next to the raised area, then add a triangle of plastic, fill joins with ABS paste, sand and polish (paint if needed)



An example:




Example thread here



Other makes don't have the raised areas like ATA so they are easier to add shims to



  • Like 1
Link to comment
Share on other sites
