Brent

YAHM - Yet Another Hasbro Mod

Recommended Posts

So I'm doing a Hasbro mod. My goals are to make an ANH EIB acceptable blaster, and learn as much as I can about building a blaster so I can do a scratch built or more accurate kit later.



I'm new to most of the tools and techniques I will be using for this build so to a large degree this is a learning experience. I'll post what I've tried in this build thread so I can get some feedback from those that have done this before, and provide another reference to those that still want to try.



Thanks to everyone who's posted build threads. I've looked at a bunch of build threads and every one has been an invaluable help for someone who's never done this before. A lot of the stuff on this forum is pretty inspirational and it's got me real excited to get in and start trying things.



What I am using:



Base: Hasbro blaster

Add-ons: Doopydoos Hasbro modification kit (these have apparently changed over time, so I'll point out this one was bought in Jan 2012)



Other changes I'm considering:

  • Basic Doopydoos conversion
  • Full set of barrel holes with a better t-track (I've already started cutting so I'm committed to this one now)
  • Hollowed scope rail and sight
  • Reshaping the trigger
  • More lights in the barrel
  • Metal hex screws in the front
  • Some sort of improved rear scope end
  • Helstringer wires
  • Counter decal
  • Reshaping other parts?
  • Extending the barrel?

Tools I'm using:

  • Dremel 4000
  • E-6000
  • Bondo
  • Sand Paper
  • Spray Paint
  • Exacto Knife
  • Soldering Iron
  • Misc. other (if you see that I'm using something interesting let me know and I'll add it to this list)

Share this post


Link to post
Share on other sites

Starting out. Initial gun, right out of packaging with screws removed.




First thing to do was apply the dremel to take off the orange muzzle.




Since I have some things I want to do in the guts I needed to split it open. I tried the screwdriver technique to get the scope cap off, but my Hasbro wasn't having any of that. I gave up and dremmeled the scope cap off, and it looks like there was no way that glue would have given to the screwdriver. The thing was fused on there solid.

DSCN0724.JPG DSCN0725.JPG

DSCN0726.JPG DSCN0728.JPG

Once getting the scope cap off I discovered that the scope rail and top t-track fin were also glued.

The scope rail came apart with a little prying with a thin knife blade, but the t-track did not give so easily. When I attempted to separate it cracks formed along the edge of the track, and I was worried they would extend in to the body of the barrel.




DSCN0736.JPG DSCN0735.JPG



I eventually gave up on being ginger with it and forced it open. There was a little damage, but it wasn't excessive. I probably could have got away with sealing it back up that way, but I had another idea. I had already been tempted to remove the built in t-track and put in new holes and t-track for a somewhat more detailed effect, so I decided to commit and strip away the built in t-tracks.



DSCN0737.JPG DSCN0738.JPG






In that last picture you can see where I got a little too agressive with the sander and put a hole in the body. This was my first time using the dremel for sanding, and it's easy to get carried away. For these long straight sections I think I will refrain from the dremel in the future and stick with a block and sand paper. The dremel does make quick work of the t-tracks though.






It might be a bit hard to see in this last picture, but my next problem was that under the top t-track the plastic is slightly recessed. If I simply sanded it off I would end up with a long hole going down the length of the barrel.



To fix this I am attempting to fill the gap with bondo. I'm not sure if this will end up working since it is on a seam and I will want to have a row of holes in it, but I figured it is worth a shot. The worst that can happen is I botch the barrel so badly I need to replace it altogether, which while unpleasant, I'm pretty sure is doable (and I could get a correct length barrel as a bonus).






While the Bondo was setting on the left side, I took to sanding down and prepping right side. After getting it to pretty much the same state, I started drilling holes. I used a hand drill with a small bit to start pilot holes.






The problem here was that my surface was round and not very even (I need to work on my sanding). You can see that while I tried getting straight lines, the bit would shift when I started the drill and I couldn't get them to line up very well.



I decided to scrap this approach and try dremeling with a template. I printed out the tube template from The Best Sterling Templates EVER! (Thanks ZeroRoom!). I lined up the template with a light and attached it with a little spray glue.



DSCN0748.JPG DSCN0751.JPG



I roughly dremeled out the holes with a cutting bit and then filed them out with a round file.

DSCN0753.JPG DSCN0754.JPG



They didn't turn out too bad. I've gradually been touching them up with a file every time I notice any lopsidedness.



Once the Bondo had dried on the other peice I was ready to cut down the rest of the top t-track. I Bondo'd up the right hand side and let that harden while working on the left now. You'll notice a little more Bondo where I had patched that sanding hole from earlier.



DSCN0755.JPG DSCN0756.JPG



There are a few bubles in the Bondo as well as a pretty uneven edge. I'll have to apply more when I seal it up. I'm just hoping the Bondo will be strong enough to withstand drilling/sanding out the holes. We'll just have to wait and see!



Next step was to do the same template cut and sand procedure to put holes on the left side.






I left the third hole small. I'm not sure if I want to widen it out or put a bayonette bolt here.



This concludes what I did on Saturday. I did more on Sunday, but I'll split that in to another post.

Share this post


Link to post
Share on other sites

Sunday, day 2 of my Hasbro work.



I still needed to sand down the newly Bondo'd right side. This time I used a ruler wrapped in sandpaper once I got the big chunks off with the dremel. It came out a lot cleaner.






As expected the two sides did not fit cleanly together. I just mashed them up against each other and sanded down the thick parts until it started fitting.






Unfortunately a peice chipped off in this process. On the plus side, it's just Bondo and is easily replaced. I'll take care of it the next time I have the need to mix up some more.








Lighting Experiment



I was a little disappointed with the lights and sounds on the Hasbro after I discovered that it only had one LED at the tip. It seemed like the red side pieces should light up through the holes.



I thought about adding a few more red LEDs in parallel with the tip LED to provide a little more effect, but I'm pretty sure they won't be very visible. Especially since most of the holes will be covered in t-track. So if I wanted any light to shine through at all, it's got to be brighter. In the immortal words of Tim Allen/Taylor "More Power!"



I went to my local Fred Meyer in search of something that could light up the inside of the tube. They had some LED road flares the looked about right, but they weren't very bright in the daylight. I then found this thing:






It's some sort of flash light that contains a fairly bright array of 24 white LEDs and it runs on 4 AAA batteries.



I split it apart by hand and worked on wiring it in to the electronics.

DSCN0772.JPG DSCN0773.JPG



The power to the tip LED wasn't enough to drive it. I found a place on the circuit board that was enabled at the same time as the tip LED, but had a bit more voltage. I think there is a current limiting resistor between that point and the LED.



I couldn't remember enough electronics to sort this out myself without doing a bit more research then I wanted to spend time on so I enlisted the aid of a friend of mine who helped me prototype out a switching mechanism using a resistor and a discrete PNP transistor.



I tapped the point on the board I had noticed earlier and used the transistor to run power straight from the battery to the LED array. It works great and the lights come on at full brightness.



DSCN0775.JPG DSCN0776.JPG






To fit the lights in the barrel I split the LED array up by scoring and snapping it in the middle, and using the dremel to cut off the ends. (Do not breath the dust coming off of this thing)



DSCN0782.JPG DSCN0785.JPG






I'm thinking of mounting them similar to how I show above. I'm not entirely decided yet. They are bright, and as they are I think you will see a flash coming out of the holes and along the t-tracks. It might be good to cover them in a red film of some sort to alter the color. I'm not sure if that's necessary or not and it might get in the way and reduce the brightness.



One big puzzle I have to work out is how I am going to close this up exactly. My plan so far is this, although it is obviously not ideal and may need some tweaking:



1) Spray paint the interior with a metallic base coat.

2) Mount electronics

3) Fill in top gap with Bondo and seal the gun up

4) Sand down Bondo from outside

5) Drill top row of holes

* this is where it gets a bit weird, but I'm not sure of another way to spray paint the newly finished exterior without painting the electronics reflective paint on the interior *

6) Put a thin balloon in the holes and inflate to fill the interior of the chamber

7) Paint exterior with base coat and final coat

8) Pop and extract the balloon



I'm open for suggestions. Experimenting with using Bondo for the top of the tube, and trying to fill the tube with electronics may be a bit at odds with each other. But it's all about learning. Even if I do a custom build I may have an instance where I want to mask the interior of the tube while painting the exterior around the holes, so it would be good to find out if this trick works.



This concludes day 2. I probably won't have much time to work on it until next weekend, so until then I'll just try to plan what I'll do next.

Share this post


Link to post
Share on other sites

I would paint the two halves before placing them together, mask off your LEDs before painting paint the area with the holes. when together mask of the holes again and spray the rest of the gun. Quick fix for your broken scope eye piece is use a empty plastic roller from a scotch tape dispenser, perfect fit.

Share this post


Link to post
Share on other sites

I would paint the two halves before placing them together, mask off your LEDs before painting paint the area with the holes. when together mask of the holes again and spray the rest of the gun. Quick fix for your broken scope eye piece is use a empty plastic roller from a scotch tape dispenser, perfect fit.



I think that will be my preference. I'm still trying to work out how to form the top Bondo and drill the holes and still let it split in half for painting and reassembly. I'm thinking of separating the two halves with some thin strips of plastic. Perhaps I can take two strips of plastic glued together lightly with E-6000 and put them in the middle, and fill the Bondo around it. Then after creating the top row of holes I can snap the plastic pieces apart with an exacto knife making a clean split down the middle. I could then paint both halves separately and reassemble.



It would be very nice to be able to open this thing up in the future as well, especially if I include custom electronics



I had heard about the scotch tape before and I test fitted it before annihilating my scope end piece. That looks like a great solution. Femtrooper Julie mentioned using a magnifying glass from Radio Shack with the scotch tape roll. I picked up a magnifying glass set that looks like it will do the job. I'm not sure how I will put it all together yet, but I'll post more when I get to the reassembly stage.

Share this post


Link to post
Share on other sites

This is some impressive level of detail for a Hasbro Mod. Nice skills sir.



I think after this you are going to find a pipe build or a scratch build an absolute walk in the park.

Share this post


Link to post
Share on other sites

This is some impressive level of detail for a Hasbro Mod. Nice skills sir.



I think after this you are going to find a pipe build or a scratch build an absolute walk in the park.



Thanks. I've been following your scratch build with a lot of interest. I can't wait for you to release your templates, the barrel template has already been useful, and it is very nice to have a good reference on the dimensions.



Today I found a local supplier of transparent 1.5" O.D. acryllic tube, so I picked up a piece. I could see getting some good use out of it soon; I just need to finish the Hasbro and build some armor first.

Share this post


Link to post
Share on other sites

I think I'm going to try making this thing so I can split it in half when it is done. To do that my plan is to make a seam along the top with two thin strips of plastic that I will form the surface against, then cut out the top row of barrel holes in.



Fortunately I have a handy source for that plastic. I'm experimenting with some material I found at the local Home Depot for making t-track. I found it with the trim pieces. It is fairly labor intensive, but a by-product is thin plastic strips.



Here is a cross section next to the DoopyDoos t-track:




I cut off the top with the dremel, and then scored and cut the edges. It then needed lots of filing and sanding. I could probably just use scissors for the top and sand down the edge. I have lots left to do, so plenty of time to refine my method.



DSCN0712.JPG DSCN0715.JPG DSCN0717.JPG DSCN0714.JPG






Above is the general end results with the DoopyDoos track. Still needs a bit of sanding at that point.



The material bends easily with heat. I tried a lighter and boiling water. After trying both I prefer the water method since it won't singe the edges. With the lighter I needed to evenly heat the top and the bottom so the spine had enough bend to flex.



DSCN0764.JPG DSCN0765.JPG



The by-product is plastic strips I will try using for the upper seam of the barrel. I just need to make up some more track of the appropriate length and then try it out.

Share this post


Link to post
Share on other sites

I took the plastic strips left over from making a piece of t-track and bondo'd them in to place at the top of the barrel. I sanded back or knocked off the existing bondo so that when they were in place they should make a straight seam down the top of the gun.






When closed up they weren't quite flush and there were some gaps. I filled that in with another application of Bondo on the outside and sanded it down.



DSCN0794.JPG DSCN0797.JPG



Next I re-applied the template and drilled holes.

DSCN0798.JPG DSCN0799.JPG



So herein lies another quirky problem with the Hasbro. The Hasbro barrel is dimensionally pretty screwed up. It is shorter then a Sterling, but perhaps more problematic is that it is a wider diameter. The pre-drilled holes however are about the same size and spacing as they are on a Sterling. What makes this awkward is that there is no way of making the holes be evenly spaced. The traditional pattern has each hole about 17.2mm away from each neighbor, both on the same row and the next. This can't be done on the Hasbro, so instead I have an extra space between the top row and the next row on either side. My other option would have been to center a row between the top and the side, but then I wouldn't get the even spacing. I'm not sure which is better or worse. This pattern was mostly convenient because I already had templates with this spacing.

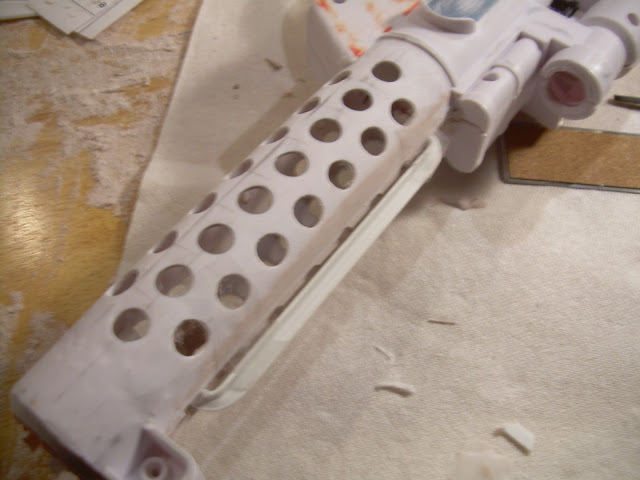

Ok, that aside, after doing some more sanding and cutting this is basically what I end up with:






For the Bondo to be stable, this has to be pretty thick. I also chipped off some of the plastic and Bondo in the sanding process, so that will somehow need to be replaced or filled in. As I suspected earlier, this isn't going to be very stable.



Some of the damage/flaws will be obscured by the t-track, but it will be hard to finish these off well.






Even if I get this part looking halfway decent, I'm not sure how I'm going to keep it stable. It would not be great if the slightest bump put a gaping hole in the top of the barrel.



More thinking will be required...

Edited by Brent

Share this post


Link to post
Share on other sites

Looking at this again today I'm concluding that the Bondo solution is just way too unstable. Even after handling it a bit more pieces chipped off so I went ahead and chipped off all the Bondo on the top.



So I have two possible routes that I could try next.



1. Try using fiberglass to bridge the top



I picked up some 3M fiberglass resin from the hardware store. I've never used this stuff before, so I have no real idea of how well it will form or hold up to drilling. This would also probably permanently seal the gun up.



2. Cut off the whole barrel and replace it with a pipe



I have some 1.5" pipe, which is a bit narrower then the rest of the Hasbro body, but I think it will look ok. After all, a slight jump in diameter will be less noticeable the the Hasbro's more obvious tells. If I go this route I will need to come up with a new front sight, as well as extend the folding stock (since I would want it to be proper Sterling length).



Either way I'm certainly getting my education out of this thing.



What does everyone think? Do a barrel from scratch, or figure out how to best close up the Hasbro barrel?

Share this post


Link to post
Share on other sites

If you decide not to replace the barrel I suggest the epoxy putty stuff for plastic at Ace hardware. Cut off a bit, mix it up with a putty knife and sculpt away. Easily sandable and it likes plastic... Where convincing bondo to stick to plastic is difficult.



Fiberglass resin is just epoxy not actual fiberglass. If you use it straight you'll just be glueing the barrel together.



I love my hasbro but wish I had gone right to the full resin droopy kit.



Keep up the photo documentation and excellent work. We dig it.



Aloha and good luck,



-Eric







Share this post


Link to post
Share on other sites

Thanks for the tip Eric. I picked up some epoxy putty tonight. We'll see how much progress I can make tomorrow. Do you think it is possible to cut a seam in that after it has been sanded and I have the holes drilled in it, or do you think it would be best to just seal it up permanently?

Share this post


Link to post
Share on other sites

Thanks for the tip Eric. I picked up some epoxy putty tonight. We'll see how much progress I can make tomorrow. Do you think it is possible to cut a seam in that after it has been sanded and I have the holes drilled in it, or do you think it would be best to just seal it up permanently?



I'm trying to think what you could cut it with that would allow it to go back together nicely. I suppose you could probably work an exacto through there very slowly and carefully and pray that whatever funkiness you create is covered by the t-track. The epoxy putty made for plastic that I used is probably dense enough to be structural for this cut if it were thick enough... but it seems like quite a bit of effort for not too much payoff.



Or you could find a clever way to put wax paper in between the two halves before applying epoxy so it eventually comes apart cleanly and nicely.



I say goop it up with the epoxy putty inside and out to build enough thickness to drill your holes and leave it sealed up. Even if the barrel is shorter than a real sterling it will look way better than most of our crappy hasbro hacks :)



Good luck... I am looking forward to seeing what you come up with ;)



Aloha,



-Eric

Share this post


Link to post
Share on other sites

Another day of working on my blaster.



Trigger



To get warmed up I started with modding the trigger. When I get this thing closed up there's a good chance it won't open again, so I figure it would be good to finish anything that requires access to the internals.



DSCN0804.JPG DSCN0805.JPG DSCN0806.JPG



I left it gluing with some E-6000.



Barrel Attempt (J-B Stick)



Next, I tried closing the barrel yet again. Using Eric's suggestion I tried bridging the gab with something a bit stronger. Thanks Eric for the ideas. I was hoping to seal the top, drill holes, and then cut a seam down the middle.



DSCN0808.JPG DSCN0810.JPG DSCN0811.JPG DSCN0814.JPG DSCN0815.JPG



Then disaster hit!






The J-B Stick held up better then the Bondo, but it still needed to be handled carefully and some of it cracked off. The bigger problem was that I did not heed the old adage "measure twice, cut once". My row of holes was slightly shifted and ended up off center. Filling this gap was difficult enough as it is, but now it will be near impossible.



So, lessons learned:

  • Bondo is best for filling depressions, not gaps
  • J-B Stick can handle small gaps, but still is weak and difficult to drill through

I've got a lot of practice with drilling and applying Bondo, so I wouldn't count this as a complete loss.



At this point I'm falling back to Plan B; completely replace the barrel. Yay for more learning opportunities!



Barrel Replacement



Before cutting some pipe, or committing to cutting off the Hasbro barrel, I figured I had best ready some of the pre-requisites. Namely, I would now need a forward sight and some work for the muzzel.



Forward Sight



WIthout the Hasbro sight I would need to make my own. I printed out some templates from the Best Sterling Templates EVER thread and got to work on a peice of sheet aluminum from my local hardware store.







DSCN0819.JPG DSCN0820.JPG DSCN0822.JPG DSCN0824.JPG DSCN0825.JPG DSCN0826.JPG




Muzzle



I'll still use the Doopy Doos muzzle, but I now need another layer to adapt it to the end of my pipe. I also have wanted to use real bolts on the end, so it's time to connect those too.











And that looks like it will be the end for today. I still need the little crecent vent cover for the right side of the barrel and a bayonette lug. I'll be about ready to cut the pipe and start drilling holes again (lots of practice drilling holes). I should be able to assemble and even paint the pipe independently then glue it in to the body of the gun.

Share this post


Link to post
Share on other sites

Some more progress today. A little bit of work making a blowback shield and readying the muzzle.



DSCN0831.JPG DSCN0834.JPG



DSCN0832.JPG DSCN0836.JPG



One new lesson learned. Don't use good cutting bits on J-B stick! The stuff will fill in the grooves and make the cutting bit pretty useless. So, one more run the the hardware store for replacement bits today.



Time to start on the barrel!






The plan is to cut off the barrel about where that red mark is in the picture above, right at the molded seam in the Hasbro.



I cut off a length of pipe long enough to make the barrel and recess in to the Hasbro body up to the speaker.



I need to find a better method of cutting this stuff. I borrowed a chop saw, but it had a pretty rough blade and chipped up the end. It's ok for this build since it will be hidden in the body, but I'll need to have a better method later.



Then comes the tedious part; drilling. This was pretty much an all day activity. Pilot holes, cutting out the circles. Cleaning up the circles. Coming back with the grinding wheel. Filing. So much filing.



DSCN0840.JPG DSCN0841.JPG DSCN0842.JPG DSCN0850.JPG



But in the end it's looking pretty good.

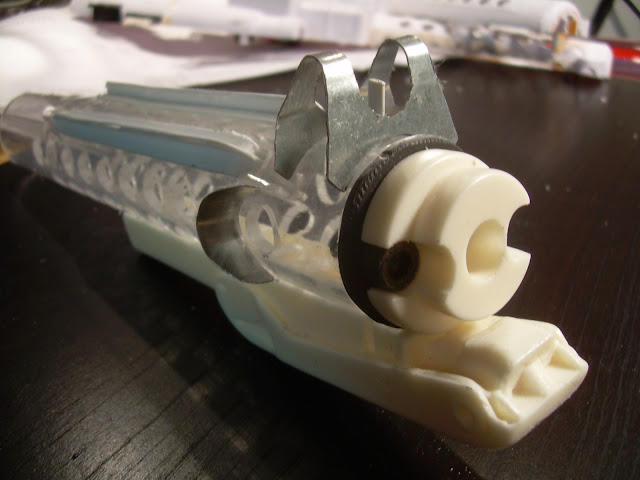

I mocked up the parts together, and it at least makes me feel like there's been some progress.






I think it looks pretty cool. Almost makes me want to build a transparent E-11 display piece.

Share this post


Link to post
Share on other sites

When looking for some good reference pictures of the muzzle and front sight of the sterling I just realized that I stupidly set the front sight on backwards in my mockup. Good thing no glue has been applied yet. :)



My front sight and blowback shield are made from very thin sheet aluminum. The only 2mm sheets they had at the hardware store were steel, which I'm not sure that I can cut and bend. I don't even think I could bend 2mm aluminum. Does anyone think I should thicken it up with some padding or something? I might be able to use plastic, but I'm not sure how to make those bends.

Share this post


Link to post
Share on other sites

I didn't have a whole lot of time tonight, but I was able to make a try at making a better front sight.



I cut out a piece of 2mm thick plastic to see if I could bend it to the proper shape. I had pasta tonight and I got the idea that it would be easiest to just boil the plastic to make it bend. After all it works with my t-track material, I thought.



This was a mistake. boiling was not hot enough to make it flexible. I didn't know exactly how flexible it should be, so I forced it. If you try this, do not force the plastic to bend! The plastic snapped.



I cut out another piece (I'm going to be real good at this by the time I'm done). Lucas showed using an oven in his scratch build thread, so I gave that a try. I went to about 350 degrees Fahrenheit for a couple of minutes and the plastic came out like putty.

DSCN0851.JPG DSCN0852.JPG DSCN0856.JPG DSCN0859.JPG






It is really hard to form this shape though. I tried using my metal sight as a guide, but it didn't work out too well. I tried wrapping the plastic around the metal. It's pretty hard to press the plastic hard enough from all angles to form straight lines and not to deform the metal guide. The plastic hardens up in a matter of seconds, so there isn't a lot of time to get everything even. The sight on the right in the previous picture was my best attempt at getting it lined up, but the base isn't parallel and it leans a bit to the side.



Also, something's not quite right with my metal sight. I'm using ZeroRoom's sterling template, which assumes a 2mm substrate. I'm not sure if the cutting guide represents the outside curve of the sight guard, or if it is the midpoint of the material or what exactly. When I use a thin sheet of metal, It doesn't quite align with the bending guide. It seems that even if I bend around the outside edge of the bending guide my material is just too long. At first I thought the bending guide might just be for reference, and not to scale, but I'm pretty sure I'm doing something wrong. If I can get the metal properly shaped to the outside curve of the sight guard, I can probably cram the hot plastic in there and get it to be pretty close to the right shape.



Maybe Lucas can explain how the sizes are related?

Share this post


Link to post
Share on other sites

I found that a heat gun works even better then the oven for bending the plastic. It seems like the plastic is malleable longer and can be reheated quicker. I reformed my front sight guard a little bit and made a blowback shield using the same technique. The plastic I used is about 3mm, so they are not quite right, but certainly much better then before. So aside from a bayonet lug, I have everything ready for the barrel. (I tried making a bayonet lug today and discovered it is very difficult so it will wait until another time)



I sanded down the tube with a couple of grades of sandpaper and cleaned it in preparation for gluing and painting.






For the muzzle, I readied the electronics by getting the wires soldered on. I used a cut up ethernet cable for wiring. I couldn't think of agreat way to mount the lights in the tube, so I decided to attach them to the back of the muzzle with a liberal dose of Bondo.



DSCN0865.JPG DSCN0866.JPG DSCN0870.JPG DSCN0869.JPG



Then I attached everything together and applied E-6000








I haven't used E-6000 aside from in this project. Every time I've seen people use it they always have it clamped down. The blow back shield in the picture isn't being held by anything except the tackiness of the E6000. It seems stable, but I'm worried it will slide down over night. The rubber bands are really hard to hold it in place with since they tend to push the shape one way or the other, so I'm thinking if it will hold this will be best. Should I be concerned?



Also, I made a royal mess of things trying to get the E6000 on there. The stuff is a bit goopy and hard to target in a small space. When trying to rubber band on the parts it was smearing all over the place. I assume I can scrape off the excess easily when it dries, but I don't know how that will go yet. Does anyone have tips for applying E6000 to small parts?



I'm glad I'm learning this now, so I won't be trying it for the first time on my armor build :)

Share this post


Link to post
Share on other sites

I think you're better off with CA glue on small parts like these.



Very impressive build btw! It's not much left of that hasbro anymore. :)

Share this post


Link to post
Share on other sites

Now that the barrel is more or less complete, my attention is back on the body of the gun.



Adding a timepiece



I came across a thread discussing having a clock handy for trooping. It was suggested that one could build it in to a blaster, which I think is a great idea.



I bought the smallest digital watch I could find and worked on finding a way to integrate it in to the blaster. Two suggestions from that thread were in the counter or in the scope. The size of the numbers on the watch didn't lend themselves to putting in the counter, so I'm opting to build it in to the scope.



The biggest problem I have with this is that I'm pretty sure once this is sealed up, I will never want to open it again. This means no changing the battery, and no resetting the time.



The battery part is easy to fix. The Hasbro already has an accessible pair of AA batteries for the lights and sounds, and as it turns out the coin sell battery is the same voltage. This does mean that the need to reset the time will be all the more important.



To set the time I would need to expose the three buttons out to the exterior of the gun. There isn't enough room to just hide them in the battery compartment so I needed to hide them on the outside. The easiest is to use the trigger as one button. I can hide a button on the grip like in erv's e-11 model "x". The third button can go in the counter module as the reset button.



DSCN0877.JPG DSCN0879.JPG



Soldering on to the button pads is a bit of a challenge. I've made some test connections, but it will be tough to get the wires to stay in place.



To add a real button to the counter module I cut out a little rectangular piece of plastic and used the engraving tip of the dremel to carefully carve out a channel for it.



DSCN0881.JPG DSCN0882.JPG DSCN0895.JPG




The button is held in with some J-B weld. I tried using super glue, but it didn't seem to hold the metal to the resin very well.



I cut out a channel in the plastic piece that I cut put a nail through. That way when it is all assembled I can glue the nail in place from the outside and the button won't fall out.



Before I can connect the counter to the gun I had one more thing to do to it. I want to have numbers on the front. I made a counter image and printed it out, then covered it with a few cut out pieces of plastic from packaging material. I'm holding them all together with spray glue, which fogs up the "window" a little bit, but I think that actually helps.






The numbers actually presented a bit of difficulty for me. I want them to be my TK ID, but I do not yet have a TK ID. I guess I'll just need to make it such that I can pry off and replace this part later. The ID I wanted is taken and there aren't really all that many left. As of yesterday there were 569 IDs available, which means the legion has used 94% of available 4 digit IDs. I'd say that's pretty impressive, and if I want a 4 digit number I'd better get my armor made quick :smiley-sw013: .



The button on the grip will go where there is an indentation that looks like a button anyhow. I'm not sure what, if any, function that had on the original Sterling. Safety?



DSCN0884.JPG DSCN0885.JPG



On the other side the button intersects with the trigger, so I needed to cut back the plastic a little bit. These Hasbros are overengineered and can stand to have lots of random plastic stripped away from them right ;) ?





Back to the barrel



After the E-6000 was dried on the barrel I applied a bit of Bond to the gaps. I also sanded down a flat space where the bayonet would attach, but I forgot to get pictures.






I then decided it was finally time to paint it. I used a staw to cover the LED on the end and I made a little cardboard cover for the internal LEDs.






Spray painting is another thing I've never really done before and I'm nervous about getting good results.



Based on other threads, and the instructions on the back of the can, this is what I plan on doing.



DONE: Lightly apply Rust-oleum Universal Metallic Paint & Primer (Satin Nickel) base coat

you can see through portions at this point

DONE: 5-10 minutes later: apply Satin Nickel base coat again

still not 100% covered, I missed a few angles. The paint looked like it was starting to pool a bit so I got nervous about applying any more

TODO: 48 hours later: apply Satin Nickel base coat again

I wouldn't do this if there weren't still gaps around the muzzle. The base also needs to be painted a bit further back.

TODO: 48 hours later: apply Rust-oleum Painter's Touch Flat black

TODO: 1 hour later: weather away black with fine sandpaper

TODO: 48 hours later: apply Rust-oleum Painter's touch Matte clear coat



I've tried a few variations on these, as well as using Rust-oleum hammered silver and hammered black, on some scrap pipe and I think this combination will be the best. I like the hammered texture as it has a genuine Sterling look to it, but I had difficulty applying it evenly and it made a thicker rubbery surface that was difficult to weather using the sandpaper method.



Some additional concerns that I have so far:

The Bondo doesn't seem to cover as well as the plastic. Maybe it requires a different primer?

WIth a layer of paint all the messiness of the E-6000 is a lot more visible. I should probably have spent more time filing, cutting, rubbing, or doing whatever it takes to clean it up.

Share this post


Link to post
Share on other sites

The button on the grip will go where there is an indentation that looks like a button anyhow. I'm not sure what, if any, function that had on the original Sterling. Safety?



DSCN0884.JPG DSCN0885.JPG





It's possible that "button" is supposed to represent the screw that is the safety (turned using the other side of the grip though) but really it's not like anything on the Sterling grip. i think the people at Hasbro just went with their own ideas when it came to the whole trigger group and grip area.



Your work here is amazing - putting that watch in and wiring it to the actual gun battery! I'm speechless - you've got skills sir...

Share this post


Link to post
Share on other sites

I think you're better off with CA glue on small parts like these.

I picked up some Duro Super Glue. It says it contains Cyanoacrylate, which I assume is CA? Is that the sort of glue you mean? They also had it in a gel form, maybe that one would be more useful.



Very impressive build btw! It's not much left of that hasbro anymore. :)



Thanks! At least the front won't have much Hasbro to it.

Share this post


Link to post
Share on other sites

Yes, CA glue is what we mean with Cyanoacrylate, aka your standard super-glue. :)

Took me some time to figure that one out myself.

Share this post


Link to post
Share on other sites

I made a little more progress. The barrel now has another coat of paint and I did a bit more work on the electronics and body.



For the scope lens I'm using a scotch tape roll and a magnifying glass from Radio Shack. After grinding down the lens holder and the inner plastic from the scope I get a decent lens.



DSCN0898.JPG DSCN0901.JPG





I was going to hollow out the scope rail, but it looked like it would be somewhat flimsy so I cut out a piece of aluminum to make a more sturdy one. The notched end fits in to the rear sight and I cut out a small slot under the scope for the other end to sit in.





DSCN0902.JPG DSCN0904.JPG



The electronics is a bit of a pain since the connections are extremely small and not very strong. I cut out a bit of cardboard that will sit inside the scope and glued the watch to it. This makes a bit more sturdy of a target for me to solder on some leads. I then painted the inside of the scope and the cardboard so that when viewed at an off angle the scope lens will be red.



DSCN0906.JPG DSCN0908.JPG



Now I need to wait until the barrel is completely painted before I cut off the original barrel and attach it to the body. Once attached I can hook up the remaining electronics, including the leads that go to the muzzle, and close the body up. Then my plan is to mask off the barrel while I attach the other resin parts and paint the body. I think the only real trick there will be extending the folding stock to account for the new barrel.

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

Loading...

×
×
  • Create New...
